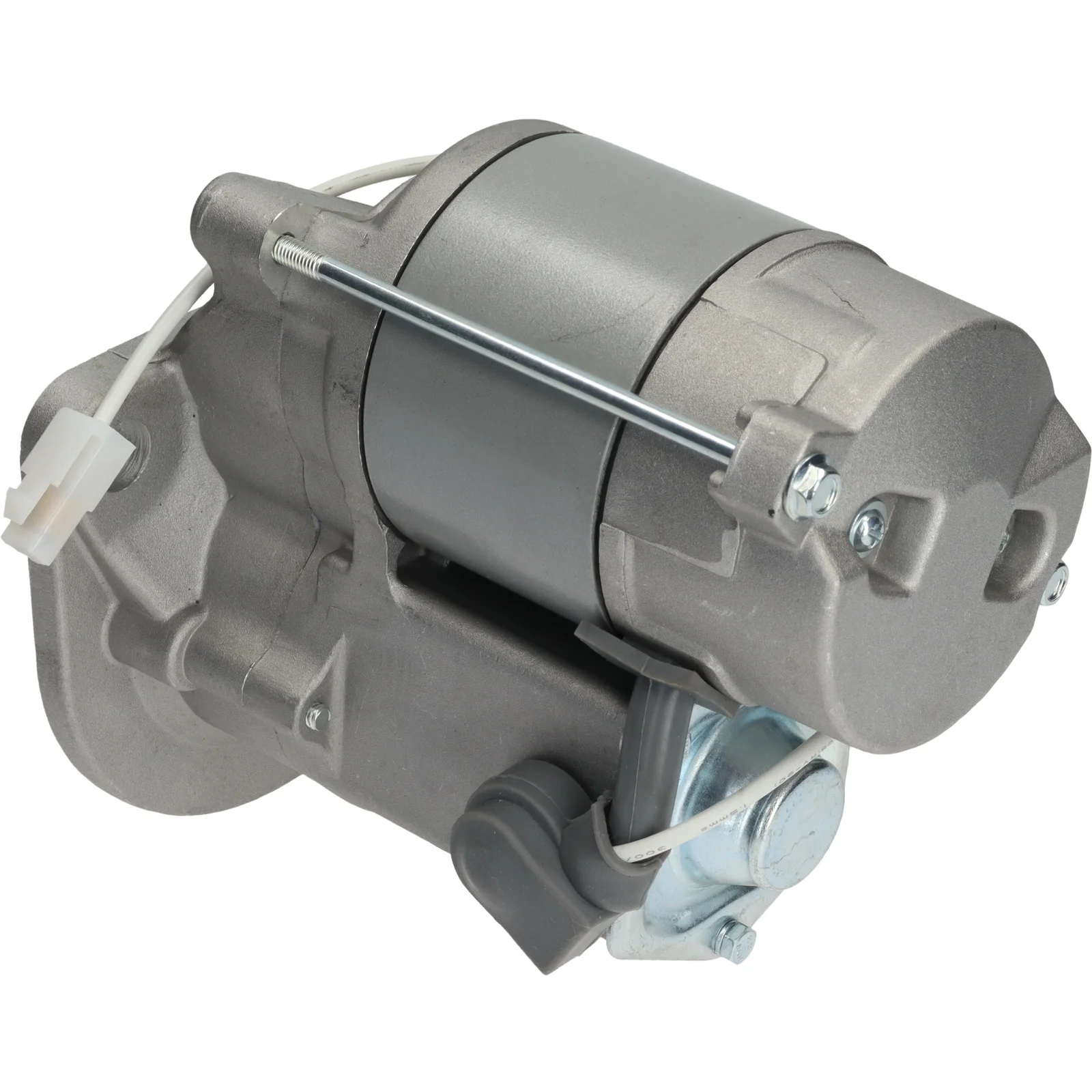

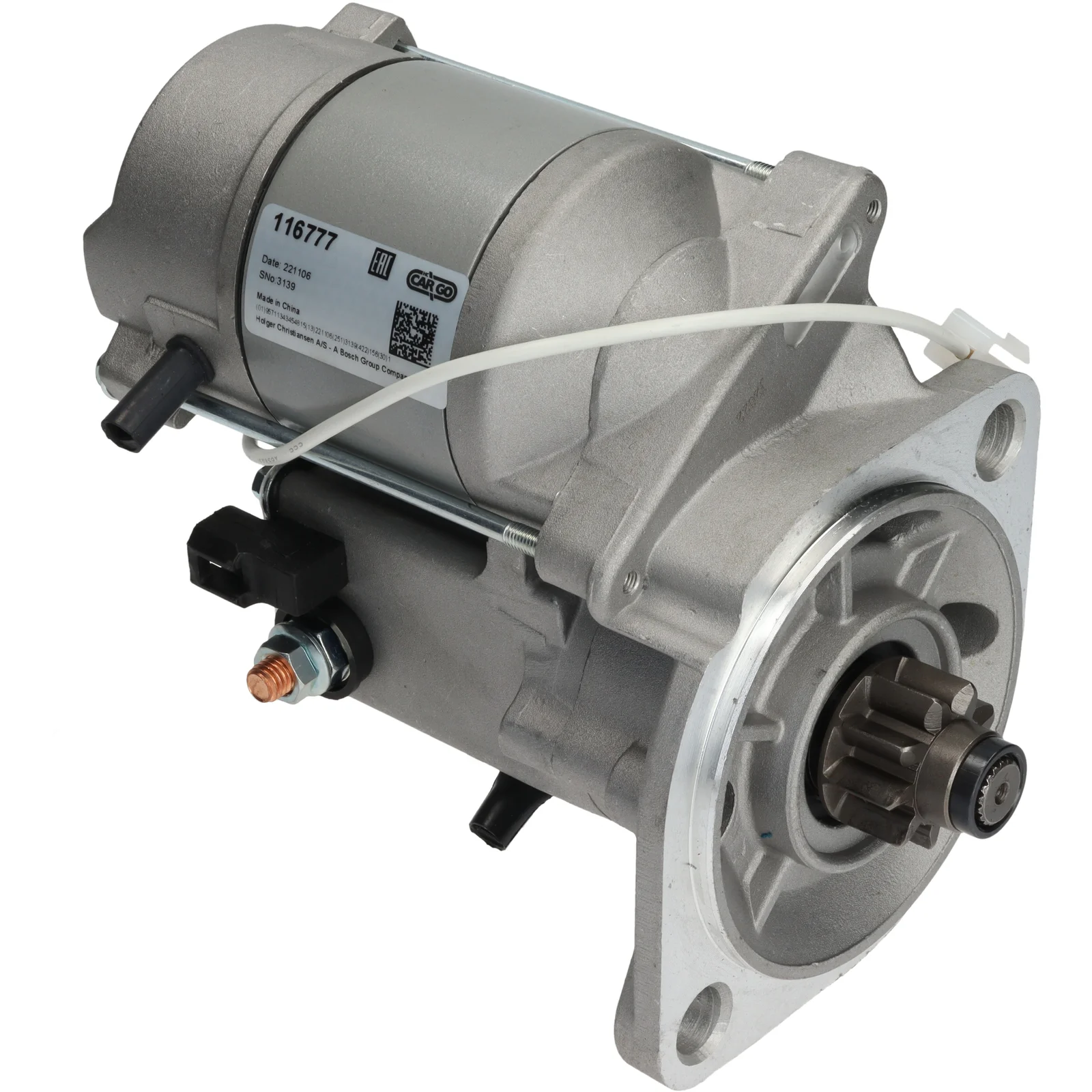

HC-Cargo Starter motor
HC-Cargo Starter motor
Article no.: F032116777

HC-Cargo Starter motor

Technical info:

Voltage: 12, kW: 1.4, No./teeth: 9, Rotation: CW

Description

Voltage: 12
kW: 1.4
Mounting flange: 95.00
Drive distance: 20.50
Mounting hole 2 mm: 13.00
Mounting hole 1 mm: 13.00
Distance / back: 154.00
Distance / front: 32.50
Number / teeth: 9
B+: M8
Position / B+: 15
Position / 50: 10
Terminal 50: Plug
Gear type: GR
Distance 2: 60.00
Distance 3: 60.00
Rotation: CW
Total length mm: 186.50
Number / mounting holes: 2 (0)

Files

  • OEM
    F032116777, 8-97048965-1, 228000-1121, 228000-3920, 8970489651, 62811000021, 62811000022, 62811000111, 548970489660, 548970489672, 628110000971, 948970489660, 948970489672

  • Normalised article numbler
    dsn2129, f032116777, lrs02188, 253360, 2280001121, 2280003920, 8970489651, 62811000021, 62811000022, 62811000111, 548970489660, 548970489672, 628110000971, 948970489660, 948970489672
  • Description
    Voltage: 12
    kW: 1.4
    Mounting flange: 95.00
    Drive distance: 20.50
    Mounting hole 2 mm: 13.00
    Mounting hole 1 mm: 13.00
    Distance / back: 154.00
    Distance / front: 32.50
    Number / teeth: 9
    B+: M8
    Position / B+: 15
    Position / 50: 10
    Terminal 50: Plug
    Gear type: GR
    Distance 2: 60.00
    Distance 3: 60.00
    Rotation: CW
    Total length mm: 186.50
    Number / mounting holes: 2 (0)

    Files

  • Suitable for these vehicles

    • OEM
      F032116777, 8-97048965-1, 228000-1121, 228000-3920, 8970489651, 62811000021, 62811000022, 62811000111, 548970489660, 548970489672, 628110000971, 948970489660, 948970489672

    • Normalised article numbler
      dsn2129, f032116777, lrs02188, 253360, 2280001121, 2280003920, 8970489651, 62811000021, 62811000022, 62811000111, 548970489660, 548970489672, 628110000971, 948970489660, 948970489672
