HC-Cargo Starter motor
HC-Cargo Starter motor
Article no.: F032116778

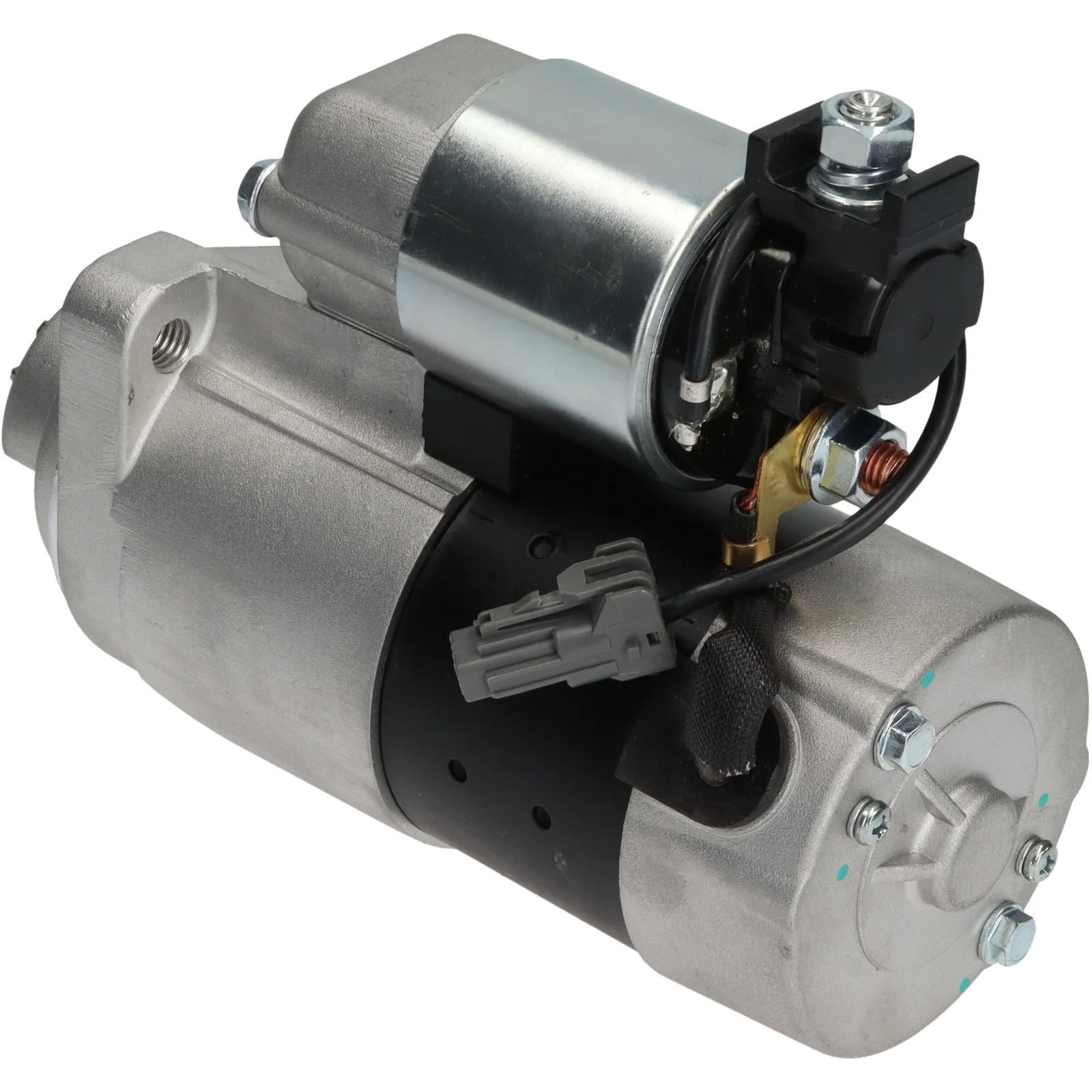

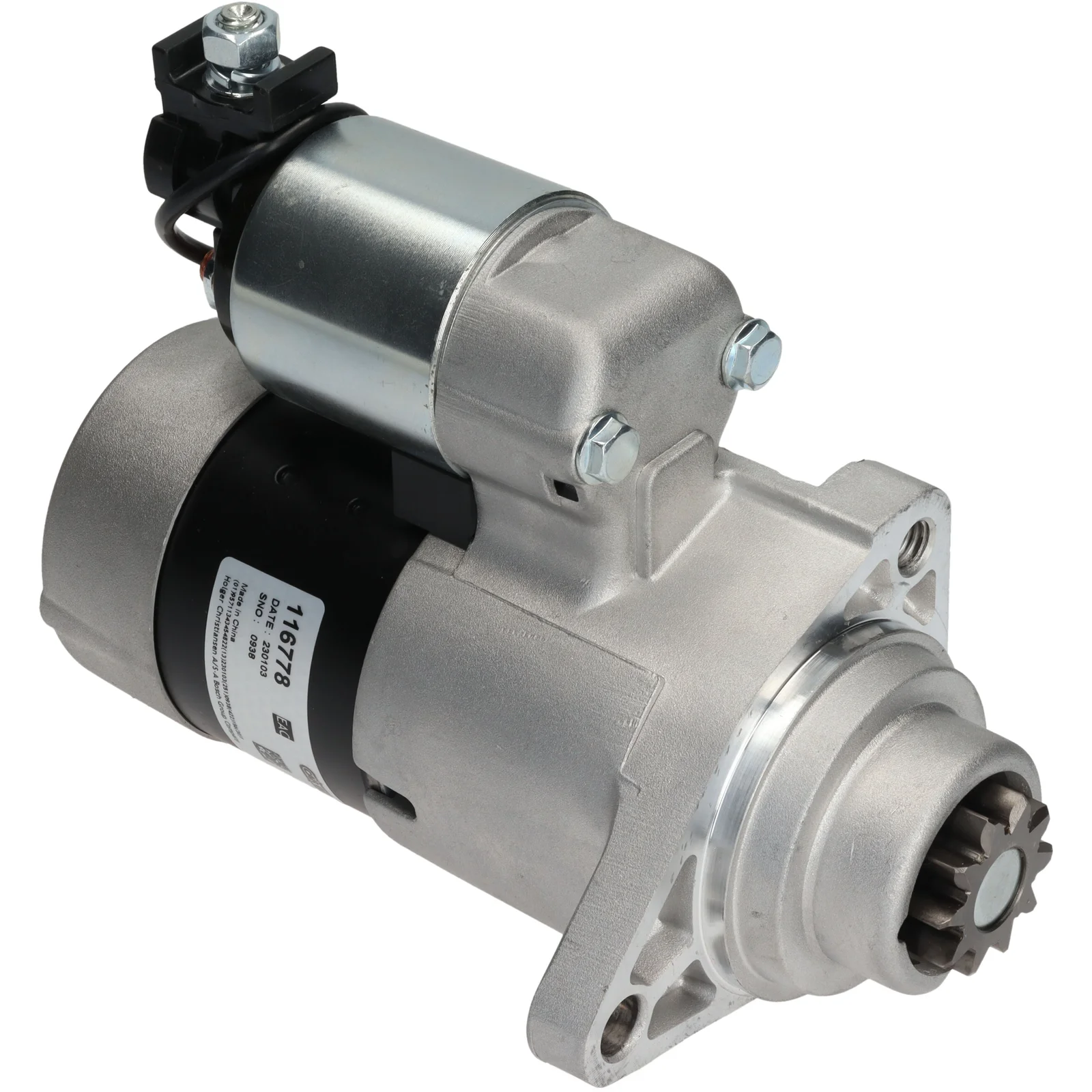

HC-Cargo Starter motor

Technical info:

Voltage: 12, kW: 1.7, No./teeth: 10, Rotation: CW

Description

Voltage: 12
kW: 1.7
Mounting flange: 68.00
Drive distance: 36.30
Mounting hole 2 mm: 10.80
Mounting hole 1 mm: M10
Distance/cover: 158.00
Number/teeth: 10
B+: M8
Position/B+: 60
Terminal 50: Plug
Gear type: GR
Distance mm: 95.00
Rotation: CW
Total length mm: 196.00
Number/mounting holes: 2 (1)

Files

  • OEM
    F032116778, S114-879, s114-881, S114-881A, 23300-CG000, 23300-CG00A

  • Normalised article numbler
    cst20258, f032116778, lrs03841, s114879, s114881, s114881a, 23300cg000, 23300cg00a, 254875, 255014, 11040841, 160587102
  • Description
    Voltage: 12
    kW: 1.7
    Mounting flange: 68.00
    Drive distance: 36.30
    Mounting hole 2 mm: 10.80
    Mounting hole 1 mm: M10
    Distance/cover: 158.00
    Number/teeth: 10
    B+: M8
    Position/B+: 60
    Terminal 50: Plug
    Gear type: GR
    Distance mm: 95.00
    Rotation: CW
    Total length mm: 196.00
    Number/mounting holes: 2 (1)

    Files

  • Suitable for these vehicles

    • OEM
      F032116778, S114-879, s114-881, S114-881A, 23300-CG000, 23300-CG00A

    • Normalised article numbler
      cst20258, f032116778, lrs03841, s114879, s114881, s114881a, 23300cg000, 23300cg00a, 254875, 255014, 11040841, 160587102
