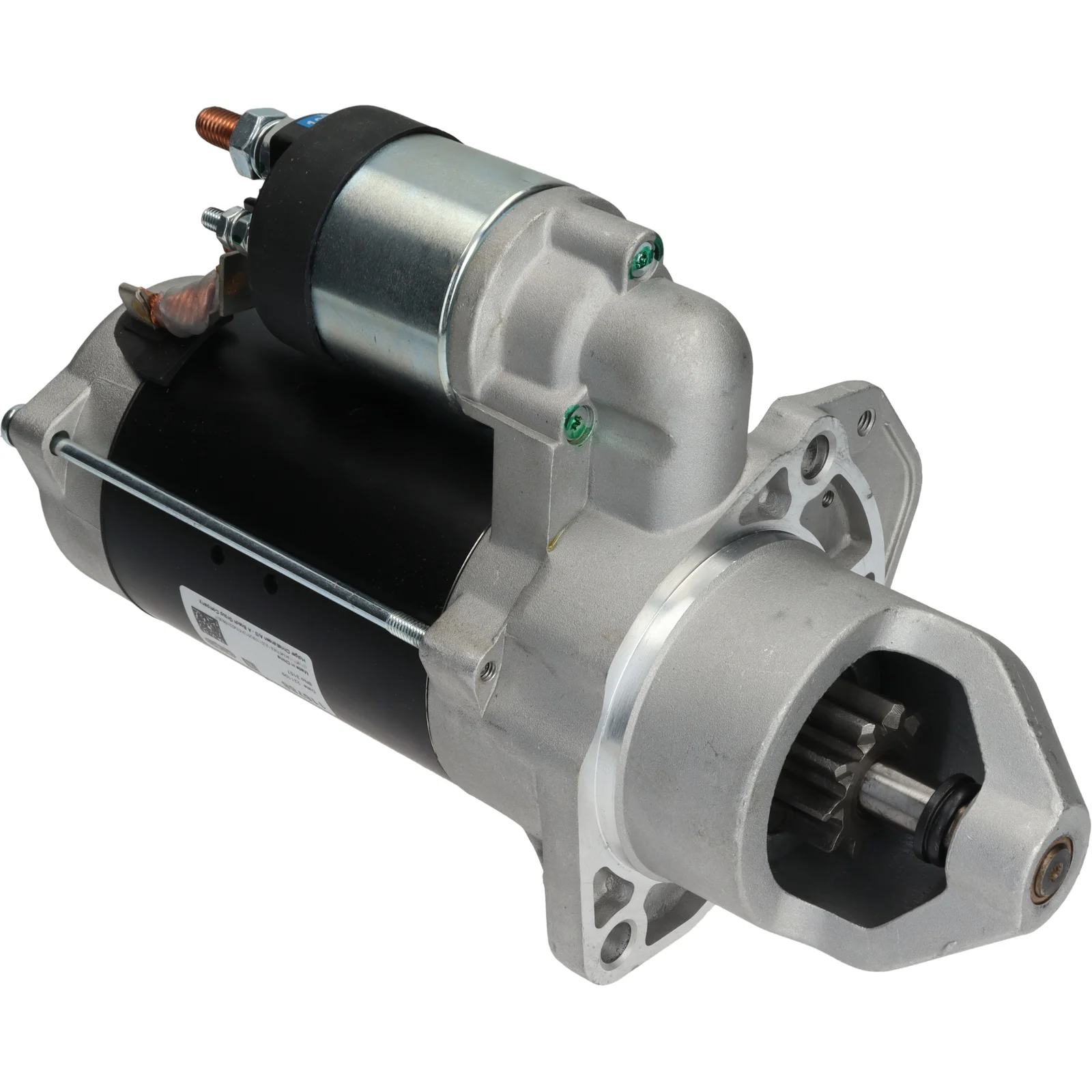

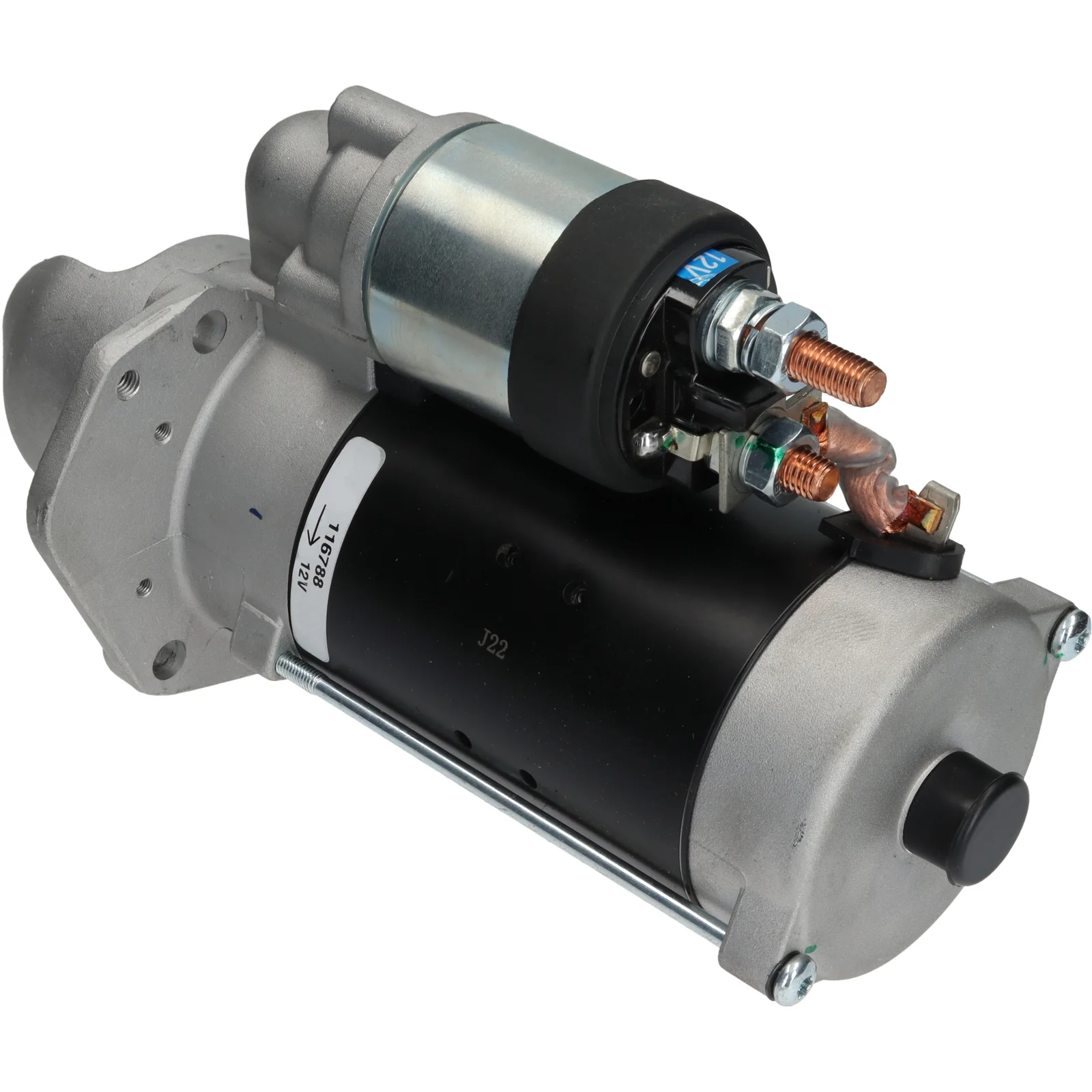

HC-Cargo Starter motor
HC-Cargo Starter motor
Article no.: F032116788

HC-Cargo Starter motor

Technical info:

Voltage: 12, kW: 3.0, No./teeth: 10, Rotation: CW

Description

Voltage: 12
kW: 3.0
Mounting flange: 89.00
Drive distance: 48.00
Mounting hole 3 mm: 11.00
Mounting hole 2 mm: 11.00
Mounting hole 1 mm: 11.00
Distance/back: 221.00
Distance/front: 95.00
Number/teeth: 10
B+: M10
Position/B+: 60
Position/50: 15
Terminal 50: M6
Gear type: GR
Distance 2: 90.00
Distance 3: 127.00
Distance mm: 90.00
Rotation: CW
Total length mm: 316.00
Number/mounting holes: 3 (0)

Files

  • Description
    Voltage: 12
    kW: 3.0
    Mounting flange: 89.00
    Drive distance: 48.00
    Mounting hole 3 mm: 11.00
    Mounting hole 2 mm: 11.00
    Mounting hole 1 mm: 11.00
    Distance/back: 221.00
    Distance/front: 95.00
    Number/teeth: 10
    B+: M10
    Position/B+: 60
    Position/50: 15
    Terminal 50: M6
    Gear type: GR
    Distance 2: 90.00
    Distance 3: 127.00
    Distance mm: 90.00
    Rotation: CW
    Total length mm: 316.00
    Number/mounting holes: 3 (0)

    Files

  • Suitable for these vehicles
