HC-Cargo Starter motor
HC-Cargo Starter motor
Article no.: F032116913

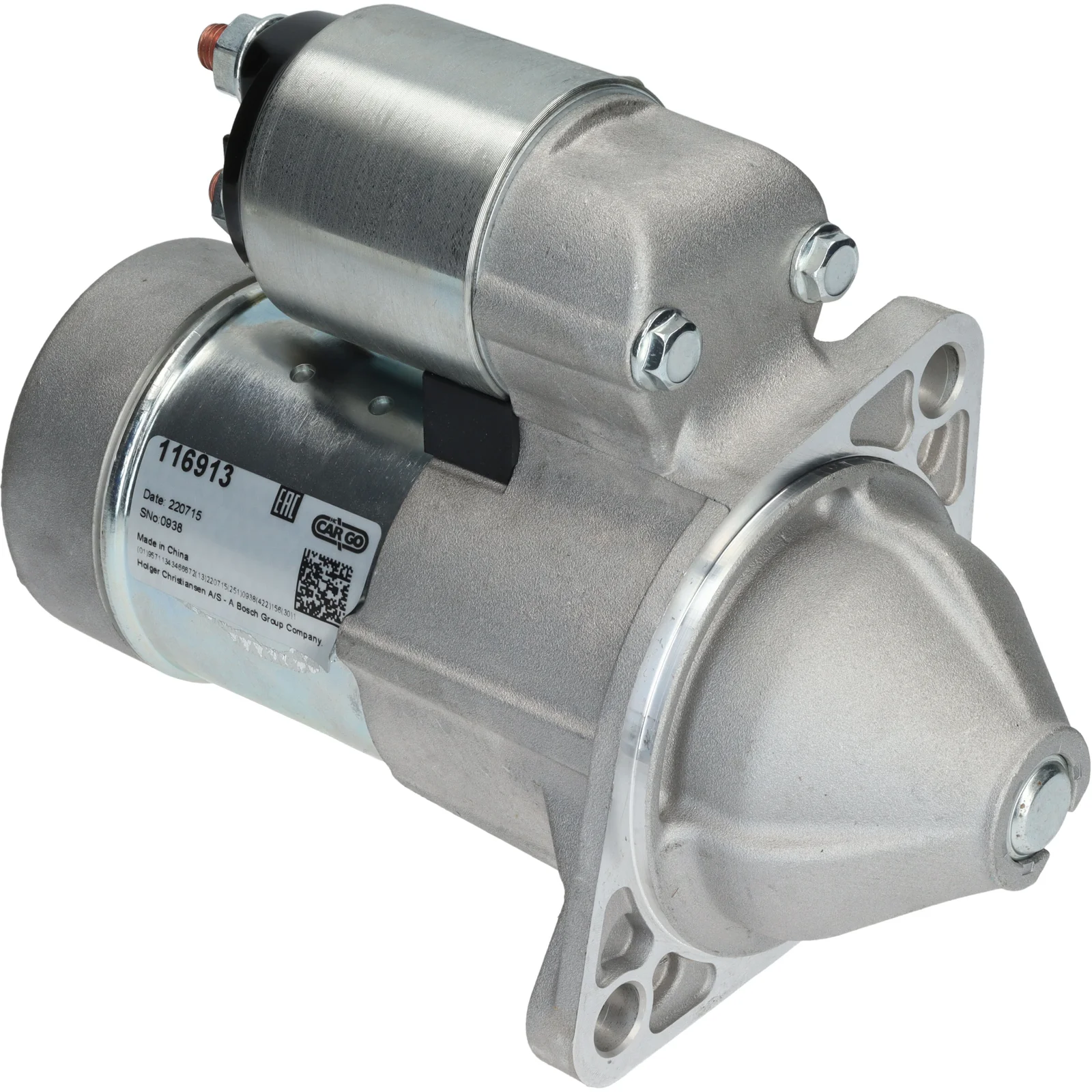

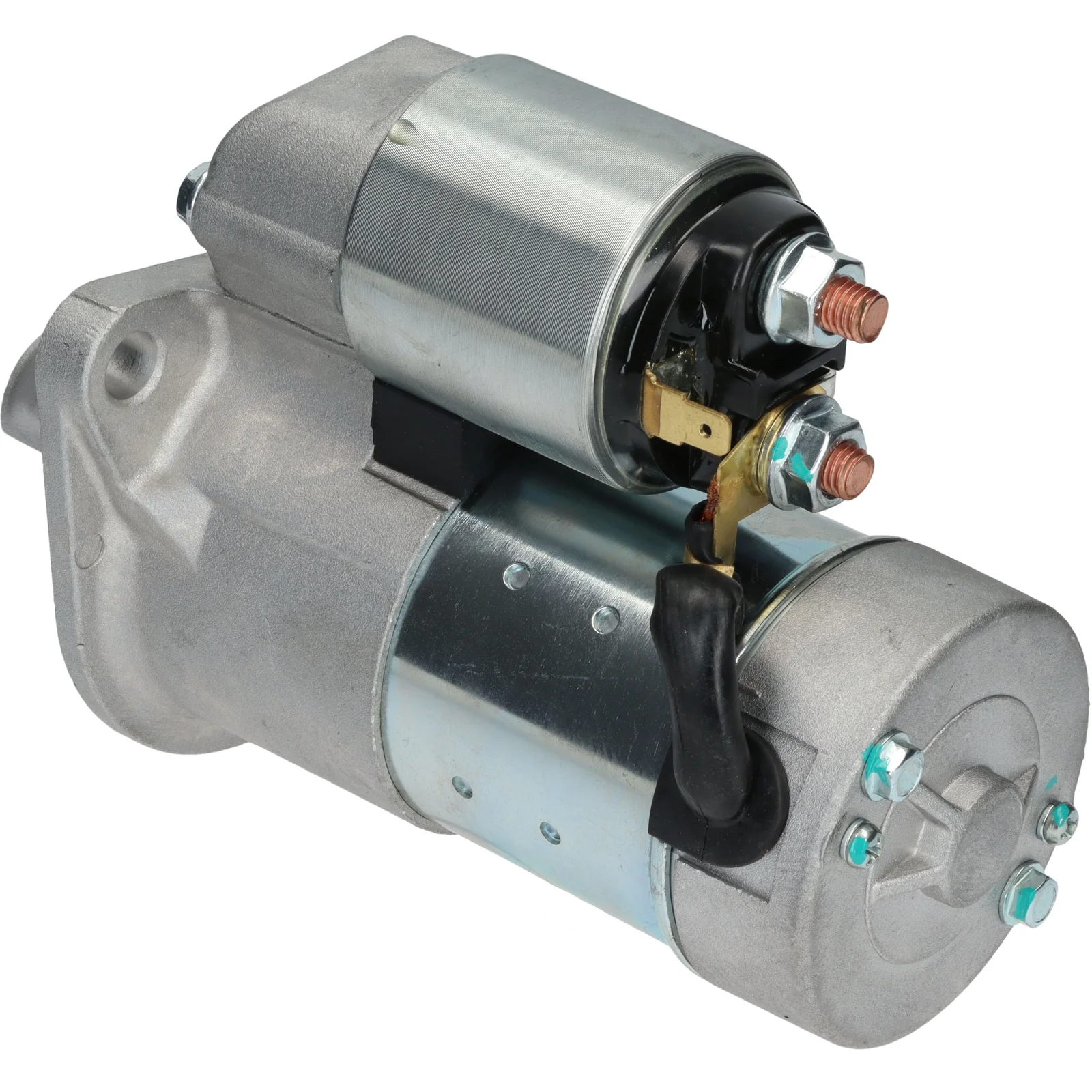

HC-Cargo Starter motor

Technical info:

Voltage: 12, kW: 1.2, No./teeth: 8, Rotation: CW

Description

Voltage: 12
kW: 1.2
Mounting flange: 80.00
Drive distance: 13.00
Mounting hole 2 mm: 10.80
Mounting hole 1 mm: 10.80
Distance / back: 145.00
Distance / front: 46.00
Number / teeth: 8
B+: M8
Position / B+: 60
Position / 50: 45
Terminal 50: 6.30
Gear type: GR
Rotation: CW
Total length mm: 191.00
Number / mounting holes: 2 (0)

Files

  • OEM
    F032116913, s114-816, S114-816A, 119233-77010

  • Normalised article numbler
    cst20167, f032116913, lrs01619, s114816, s114816a, 201356, 253144, 11040933, 682030082, 11923377010
  • Description
    Voltage: 12
    kW: 1.2
    Mounting flange: 80.00
    Drive distance: 13.00
    Mounting hole 2 mm: 10.80
    Mounting hole 1 mm: 10.80
    Distance / back: 145.00
    Distance / front: 46.00
    Number / teeth: 8
    B+: M8
    Position / B+: 60
    Position / 50: 45
    Terminal 50: 6.30
    Gear type: GR
    Rotation: CW
    Total length mm: 191.00
    Number / mounting holes: 2 (0)

    Files

  • Suitable for these vehicles

    • OEM
      F032116913, s114-816, S114-816A, 119233-77010

    • Normalised article numbler
      cst20167, f032116913, lrs01619, s114816, s114816a, 201356, 253144, 11040933, 682030082, 11923377010
