Article no.: F032110209

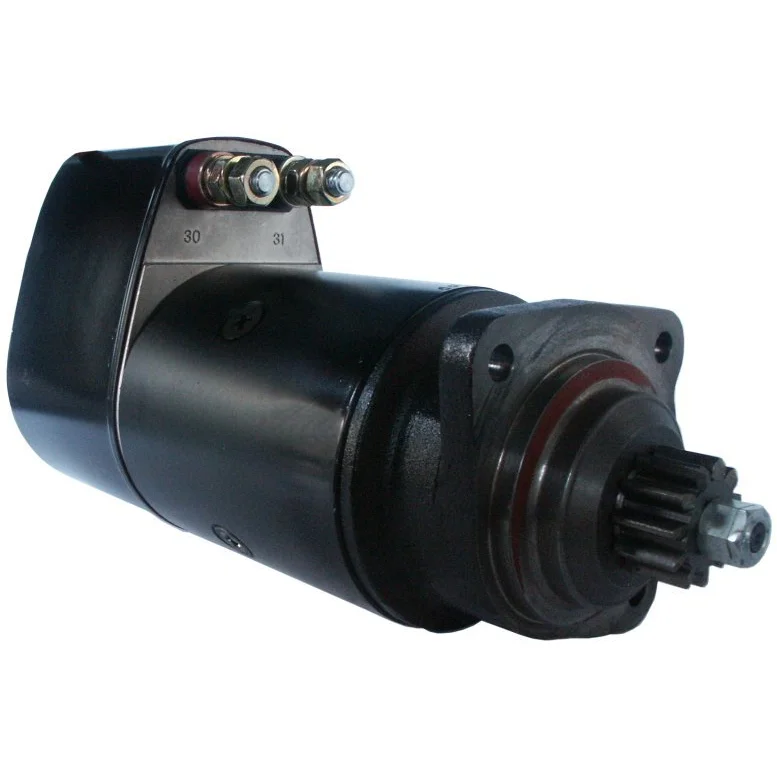

HC-Cargo Starter motor

Technical info:

Voltage: 24, kW: 5.4, No./teeth: 11, Rotation: CW

Description

HC-Cargo Starter motor

Voltage: 24
kW: 5.4
Mounting flange: 89.00
Drive distance: 47.00
Mounting hole 3 mm: 11.00
Mounting hole 2 mm: 11.00
Mounting hole 1 mm: 11.00
Distance / back: 322.50
Distance / front: 62.00
Number / teeth: 11
B+: M12
Position / 50: 60
Terminal 50: M6
Gear type: DD
Distance 2: 127.00
Distance 3: 90.00
Distance mm: 90.00
Rotation: CW
B-: M10
Total length mm: 387.00
Drive type: Steel
Product info: BN
Waterproof: No
Oil sealed: No
Number / mounting holes: 3 (0)

Files

  • OEM
    F032110209, R23.23, 327, 543, 11206, 14401B2420, 22622, 241787, 0293019R, 293019, 0300582, 01301834, 1301834, 0001410067, 0001416043, 2998009, 6230000, 9125420, 9000084008

  • Normalised article numbler
    bso7105, drs1470, drs1520, drs3260, drs4870, f032110209, f042002109, f042s02109, is9026, lrs00945, lrs02141, ms457, ms707, r2323, s0346, str22021, str22041, str23806, 8ea726179001, 327, 543, 1639, 10546, 11206, 14401b2420, 18223, 18223n, 22622, 33405, 33582, 220327, 220327a, 220339, 220339a, 241787, 0293019r, 293019, 0300582, 438037, 450180, 451430, 455526, 455546, 01301834, 1301834, 0001410067, 0001416043, 2998009, 6230000, 8811470, 8814870, 9125420, 646004114, 646014114, 943252203, 0986014870, 9000084008
  • Description
    HC-Cargo Starter motor

    Voltage: 24
    kW: 5.4
    Mounting flange: 89.00
    Drive distance: 47.00
    Mounting hole 3 mm: 11.00
    Mounting hole 2 mm: 11.00
    Mounting hole 1 mm: 11.00
    Distance / back: 322.50
    Distance / front: 62.00
    Number / teeth: 11
    B+: M12
    Position / 50: 60
    Terminal 50: M6
    Gear type: DD
    Distance 2: 127.00
    Distance 3: 90.00
    Distance mm: 90.00
    Rotation: CW
    B-: M10
    Total length mm: 387.00
    Drive type: Steel
    Product info: BN
    Waterproof: No
    Oil sealed: No
    Number / mounting holes: 3 (0)

    Files

  • Suitable for these vehicles

    • OEM
      F032110209, R23.23, 327, 543, 11206, 14401B2420, 22622, 241787, 0293019R, 293019, 0300582, 01301834, 1301834, 0001410067, 0001416043, 2998009, 6230000, 9125420, 9000084008

    • Normalised article numbler
      bso7105, drs1470, drs1520, drs3260, drs4870, f032110209, f042002109, f042s02109, is9026, lrs00945, lrs02141, ms457, ms707, r2323, s0346, str22021, str22041, str23806, 8ea726179001, 327, 543, 1639, 10546, 11206, 14401b2420, 18223, 18223n, 22622, 33405, 33582, 220327, 220327a, 220339, 220339a, 241787, 0293019r, 293019, 0300582, 438037, 450180, 451430, 455526, 455546, 01301834, 1301834, 0001410067, 0001416043, 2998009, 6230000, 8811470, 8814870, 9125420, 646004114, 646014114, 943252203, 0986014870, 9000084008
