Article no.: F032110213

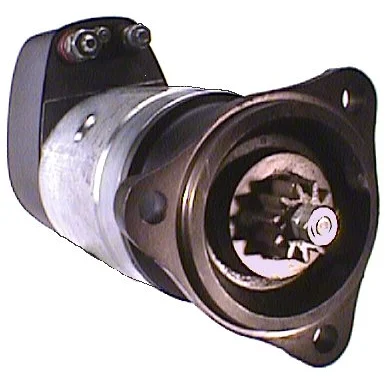

HC-Cargo Starter motor

Technical info:

Voltage: 24, kW: 6.6, No./teeth: 11, Rotation: CW

Description

HC-Cargo Starter motor

Voltage: 24
kW: 6.6
Mounting flange: 115.00
Drive distance: 21.00
Mounting hole 3 mm: 15.50
Mounting hole 2 mm: 15.50
Mounting hole 1 mm: 15.50
Distance/behind: 365.50
Distance/in front: 36.50
Number of/teeth: 11
B+: M12
Position/50: 60
Terminal 50: M6
Gear type: DD
Distance 2: 127.00
Distance 3: 127.00
Distance mm: 127.00
Rotation: CW
Position/b-: 2
B-: M10
Total length mm: 407.00
Drive type: Steel
Production info: BN
Waterproof: No
Oil sealed: No
Number of/mounting holes: 3 (0)

Files

  • OEM
    AZK5179, cs526, F032110213, r22.07, 11.139.020, 316, 362, 605, 1986S00060, 22703, 0070000, 000179626, 0001410065, 0001411025, 0001417005, 1516767R, 2995112, 2997383, 004684280, 04684280, 4684280, 004732242, 4732242, 004782803, 04782803, 4782803, 9125020, 19024053, 42498147, 63226301, 63226391, 81467005, 81467006, 500325102

  • Normalised article numbler
    azk5179, cs526, cst10600, cst30612, drs3430, f032110213, is0289, is9020, lrs00845, ms495, r2207, s0360, str2390, 8ea726167001, 316, 362, 605, 1555, 1986s00060, 3472, 10526, 22703, 30118n, 33520, 33596, 0070000, 000179626, 203014, 220218, 220218a, 438042, 450150, 451123, 455523, 0001410065, 0001411025, 0001417005, 1516767r, 2995112, 2997383, 004684280, 04684280, 4684280, 004732242, 4732242, 004782803, 04782803, 4782803, 8813430, 9125020, 11013430, 11139020, 19024053, 42498147, 63226301, 63226391, 81467005, 81467006, 500325102, 943252221, 0986013430, 0986018823, 943252221010
  • Description
    HC-Cargo Starter motor

    Voltage: 24
    kW: 6.6
    Mounting flange: 115.00
    Drive distance: 21.00
    Mounting hole 3 mm: 15.50
    Mounting hole 2 mm: 15.50
    Mounting hole 1 mm: 15.50
    Distance/behind: 365.50
    Distance/in front: 36.50
    Number of/teeth: 11
    B+: M12
    Position/50: 60
    Terminal 50: M6
    Gear type: DD
    Distance 2: 127.00
    Distance 3: 127.00
    Distance mm: 127.00
    Rotation: CW
    Position/b-: 2
    B-: M10
    Total length mm: 407.00
    Drive type: Steel
    Production info: BN
    Waterproof: No
    Oil sealed: No
    Number of/mounting holes: 3 (0)

    Files

  • Suitable for these vehicles

    • OEM
      AZK5179, cs526, F032110213, r22.07, 11.139.020, 316, 362, 605, 1986S00060, 22703, 0070000, 000179626, 0001410065, 0001411025, 0001417005, 1516767R, 2995112, 2997383, 004684280, 04684280, 4684280, 004732242, 4732242, 004782803, 04782803, 4782803, 9125020, 19024053, 42498147, 63226301, 63226391, 81467005, 81467006, 500325102

    • Normalised article numbler
      azk5179, cs526, cst10600, cst30612, drs3430, f032110213, is0289, is9020, lrs00845, ms495, r2207, s0360, str2390, 8ea726167001, 316, 362, 605, 1555, 1986s00060, 3472, 10526, 22703, 30118n, 33520, 33596, 0070000, 000179626, 203014, 220218, 220218a, 438042, 450150, 451123, 455523, 0001410065, 0001411025, 0001417005, 1516767r, 2995112, 2997383, 004684280, 04684280, 4684280, 004732242, 4732242, 004782803, 04782803, 4782803, 8813430, 9125020, 11013430, 11139020, 19024053, 42498147, 63226301, 63226391, 81467005, 81467006, 500325102, 943252221, 0986013430, 0986018823, 943252221010
