Article no.: F032110490

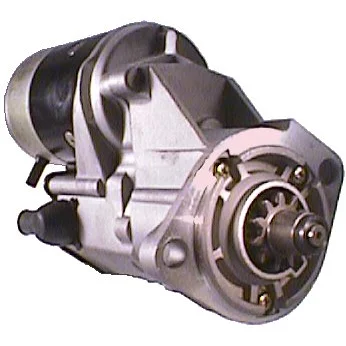

HC-Cargo Starter motor

Technical info:

Voltage: 24, kW: 4.5, No./teeth: 11, Rotation: CW

Description

Voltage: 24
kW: 4.5
Mount. flange: 90.00
Drive dist.: 16.00
Mount. hole 2 mm: 13.50
Mount. hole 1 mm: 13.50
Dist./back: 193.00
Dist./front: 42.00
No./teeth: 11
B+: M10
Position/50: 10
Terminal 50: M5
Gear type: GR
Dist. mm: 112.50
Rotation: CW
Total length mm: 295.00
Drive type: Steel
Prod. info: BN
Waterproof: No
Oil sealed: No
No./mount. holes: 2 (0)

Files

  • OEM
    F032110490, js733, 028000-5860, 028000-5861, 028000-5862, 028000-5863, 028000-5864, 028000-6010, 028000-6011, 028000-6012, 028000-6013, 28100-22060, 28100-22060-71, 28100-22061, 28100-22061-71

  • Normalised article numbler
    cst38137, cst40606, drs3257, f032110490, f042000096, f042000099, f042s00096, f042s00099, js733, les0140, lrs01881, s6010, s9207, str6163, str6168, 8ea730274001, 4256, 16614, 16614n, 17794n, 18180, 18180n, 20733, 21754nd, 103866, 104702, 451462, 11040392, 0280005860, 0280005861, 0280005862, 0280005863, 0280005864, 0280006010, 0280006011, 0280006012, 0280006013, 635004114, 0986014441, 2810022060, 2810022061, 281002206071, 281002206171
