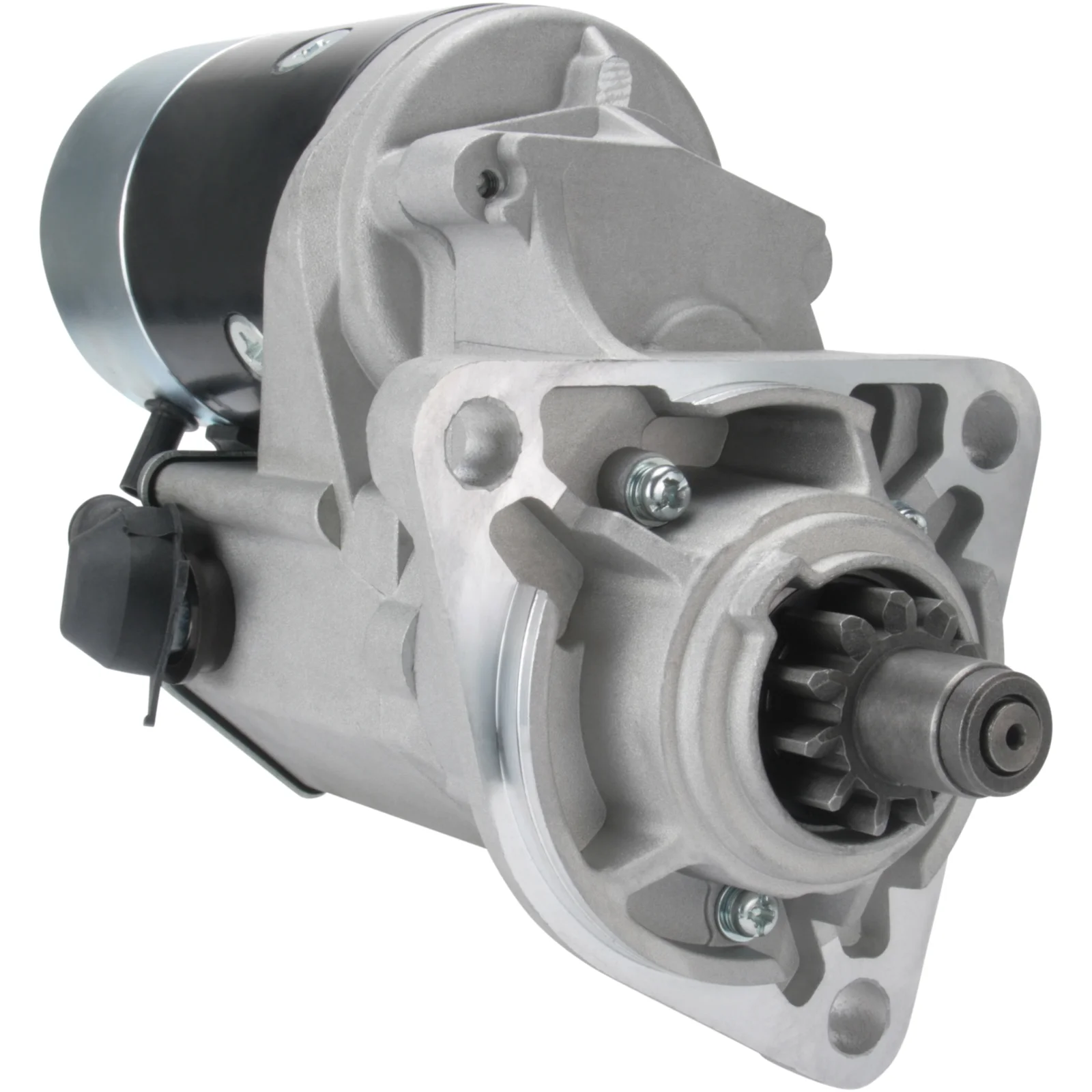

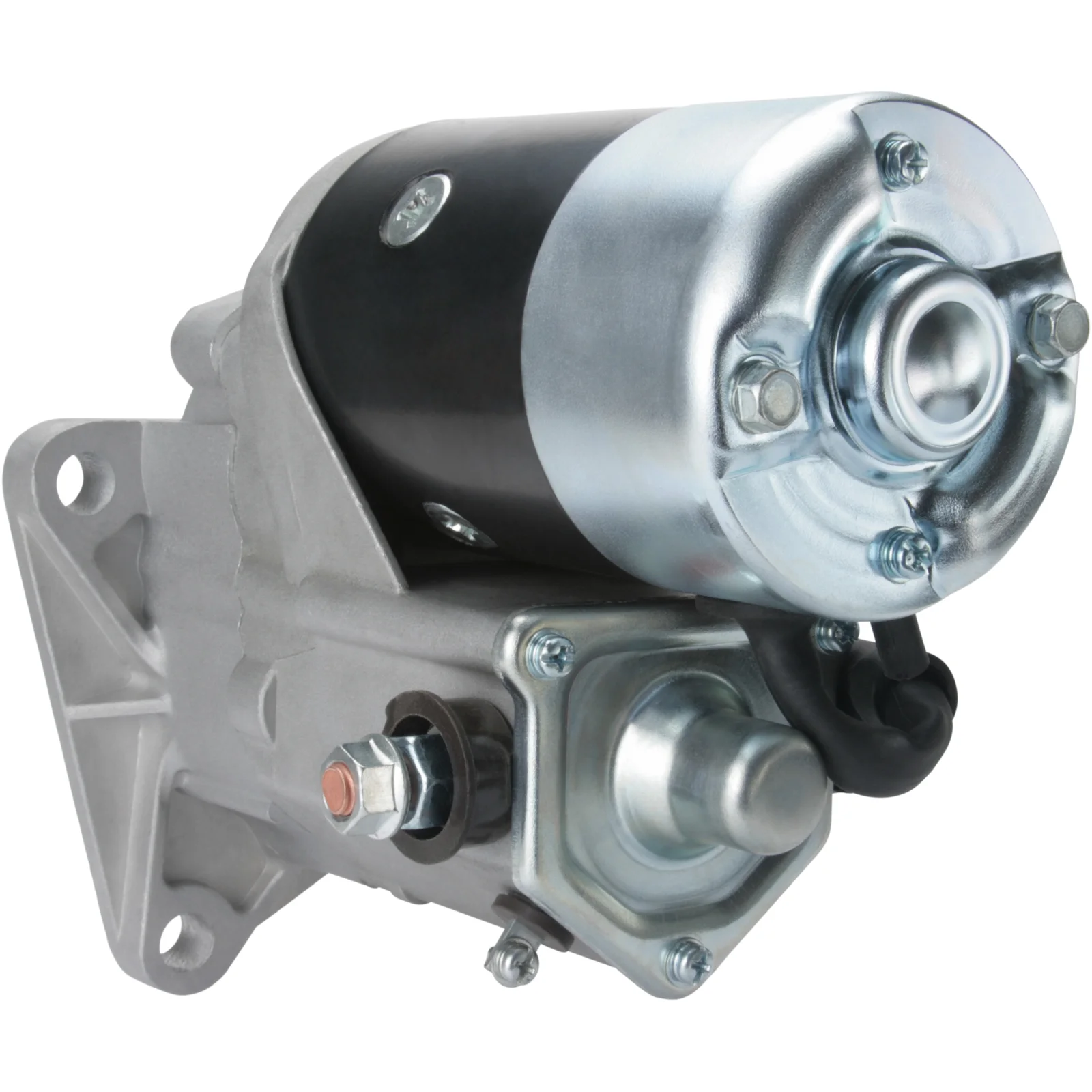

HC-Cargo Starter motor
HC-Cargo Starter motor
Article no.: F032110580

HC-Cargo Starter motor

Technical info:

Voltage: 24, kW: 4.5, No./teeth: 11, Rotation: CW

Description

Voltage: 24
kW: 4.5
Mount. flange: 105.00
Drive dist.: 41.00
Mount. hole 3 mm: 13.00
Mount. hole 2 mm: 13.00
Mount. hole 1 mm: 13.00
Dist./back: 170.00
Dist./front: 68.00
No./teeth: 11
B+: M10
Position/50: 35
Terminal 50: M5
Gear type: GR
Dist. 2: 135.00
Dist. 3: 110.50
Dist. mm: 110.50
Rotation: CW
Total length mm: 297.00
Drive type: Steel
Prod. info: BN
Waterproof: No
Oil sealed: No
No./mount. holes: 3 (0)

Files

  • OEM
    0-21000-3291, 0-21000-3600, 0-21000-3650, 0-21000-3660, 0-21000-3661, 0-21000-4470, 0-21000-4471, 0-23000-1030, 0-23000-1031, 0-23000-1032, 0-23000-1033, 0-23000-1050, 0-23000-1060, 0-23000-1061, 0-23000-1670, 0-23000-3000, 0-23000-3010, 0-23000-3016, 0-23000-3661, F032110580, s25-100, s25-100a, s25-103, S25-135, s25-135a, 1-81100141-1, 714-40280, 028000-6200, 028000-6201, 028000-6202, 1811001410, 1811001891, 5811000180, 5811000252, 5811001180

  • Normalised article numbler
    cst40642, cst50601, drs3217, drs3217n, dsn2054, f032110580, f042000093, f042s00093, s25100, s25100a, s25103, s25135, s25135a, s6027, s9184, str6160, 8ea730287001, 4269, 18100nnd, 18190, 18190n, 20746, 22105nd, 103870, 220625, 220625a, 254653, 451382, 451392, 71440280, 0210003291, 0210003600, 0210003650, 0210003660, 0210003661, 0210004470, 0210004471, 0230001030, 0230001031, 0230001032, 0230001033, 0230001050, 0230001060, 0230001061, 0230001670, 0230003000, 0230003010, 0230003016, 0230003661, 261516113, 0280006200, 0280006201, 0280006202, 643006114, 643034114, 1811001410, 1811001411, 1811001891, 5811000180, 5811000252, 5811001180
  • Description
    Voltage: 24
    kW: 4.5
    Mount. flange: 105.00
    Drive dist.: 41.00
    Mount. hole 3 mm: 13.00
    Mount. hole 2 mm: 13.00
    Mount. hole 1 mm: 13.00
    Dist./back: 170.00
    Dist./front: 68.00
    No./teeth: 11
    B+: M10
    Position/50: 35
    Terminal 50: M5
    Gear type: GR
    Dist. 2: 135.00
    Dist. 3: 110.50
    Dist. mm: 110.50
    Rotation: CW
    Total length mm: 297.00
    Drive type: Steel
    Prod. info: BN
    Waterproof: No
    Oil sealed: No
    No./mount. holes: 3 (0)

    Files

  • Suitable for these vehicles

    • OEM
      0-21000-3291, 0-21000-3600, 0-21000-3650, 0-21000-3660, 0-21000-3661, 0-21000-4470, 0-21000-4471, 0-23000-1030, 0-23000-1031, 0-23000-1032, 0-23000-1033, 0-23000-1050, 0-23000-1060, 0-23000-1061, 0-23000-1670, 0-23000-3000, 0-23000-3010, 0-23000-3016, 0-23000-3661, F032110580, s25-100, s25-100a, s25-103, S25-135, s25-135a, 1-81100141-1, 714-40280, 028000-6200, 028000-6201, 028000-6202, 1811001410, 1811001891, 5811000180, 5811000252, 5811001180

    • Normalised article numbler
      cst40642, cst50601, drs3217, drs3217n, dsn2054, f032110580, f042000093, f042s00093, s25100, s25100a, s25103, s25135, s25135a, s6027, s9184, str6160, 8ea730287001, 4269, 18100nnd, 18190, 18190n, 20746, 22105nd, 103870, 220625, 220625a, 254653, 451382, 451392, 71440280, 0210003291, 0210003600, 0210003650, 0210003660, 0210003661, 0210004470, 0210004471, 0230001030, 0230001031, 0230001032, 0230001033, 0230001050, 0230001060, 0230001061, 0230001670, 0230003000, 0230003010, 0230003016, 0230003661, 261516113, 0280006200, 0280006201, 0280006202, 643006114, 643034114, 1811001410, 1811001411, 1811001891, 5811000180, 5811000252, 5811001180
