Article no.: F032110581

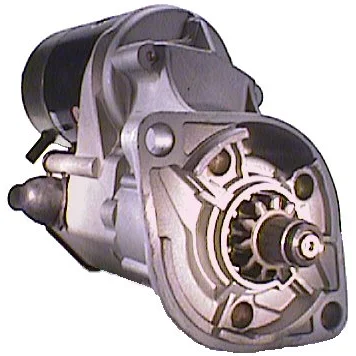

HC-Cargo Starter motor

Technical info:

Voltage: 24, kW: 4.5, No./teeth: 11, Rotation: CW

Description

Voltage: 24
kW: 4.5
Mounting flange: 105.00
Drive distance: 16.50
Mounting hole 2 mm: 13.00
Mounting hole 1 mm: 13.00
Distance / back: 253.00
Distance / front: 44.00
Number / teeth: 11
B+: M10
Position / 50: 35
Terminal 50: M5
Gear type: GR
Distance in millimeters: 139.50
Rotation: CW
Total length in millimeters: 296.00
Drive type: Steel
Product info: BN
Waterproof: No
Oil sealed: No
Number / mounting holes: 2 (0)

Files

  • OEM
    F032110581, js666, 028000-5890, 028000-5891, 028000-7240, 028000-7241, 028000-7242, 028000-7810, 028000-7811, 28100-31625-71, 28100-47090, 28100-47091, 10412194

  • Normalised article numbler
    cst40602, drs3208, f032110581, f042000094, f042s00094, j5212033, js666, lrs01840, s6073, s6085, str6161, 8ea730254001, 4239, 9791, 11630, 16896, 16896n, 20666, 22106nd, 103769, 451060, 3952233, 8052233, 8213151, 10412194, 11040231, 0280005890, 0280005891, 0280007240, 0280007241, 0280007242, 0280007810, 0280007811, 335021114, 0986014431, 995016023, 2810047090, 2810047091, 281003162571, 943254027010
  • Description
    Voltage: 24
    kW: 4.5
    Mounting flange: 105.00
    Drive distance: 16.50
    Mounting hole 2 mm: 13.00
    Mounting hole 1 mm: 13.00
    Distance / back: 253.00
    Distance / front: 44.00
    Number / teeth: 11
    B+: M10
    Position / 50: 35
    Terminal 50: M5
    Gear type: GR
    Distance in millimeters: 139.50
    Rotation: CW
    Total length in millimeters: 296.00
    Drive type: Steel
    Product info: BN
    Waterproof: No
    Oil sealed: No
    Number / mounting holes: 2 (0)

    Files

  • Suitable for these vehicles

    • OEM
      F032110581, js666, 028000-5890, 028000-5891, 028000-7240, 028000-7241, 028000-7242, 028000-7810, 028000-7811, 28100-31625-71, 28100-47090, 28100-47091, 10412194

    • Normalised article numbler
      cst40602, drs3208, f032110581, f042000094, f042s00094, j5212033, js666, lrs01840, s6073, s6085, str6161, 8ea730254001, 4239, 9791, 11630, 16896, 16896n, 20666, 22106nd, 103769, 451060, 3952233, 8052233, 8213151, 10412194, 11040231, 0280005890, 0280005891, 0280007240, 0280007241, 0280007242, 0280007810, 0280007811, 335021114, 0986014431, 995016023, 2810047090, 2810047091, 281003162571, 943254027010
