Article no.: F032110601

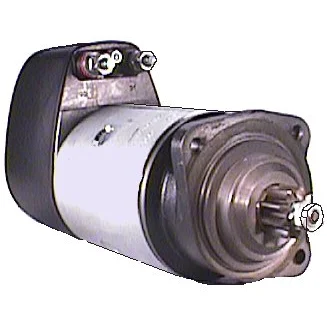

HC-Cargo Starter motor

Technical info:

Voltage: 24, kW: 5.4, No./teeth: 9, Rotation: CW

Description

Start 24V-5.4kW fits Volvo 24V - 5.4kW, 9k A - 89mm, B - 48mm For Yourex product order 91-600-2059

Voltage: 24
kW: 5.4
Mounting flange: 89.00
Drive distance: 47.50
Mounting hole 3 mm: 11.00
Mounting hole 2 mm: 11.00
Mounting hole 1 mm: 11.00
Distance/back: 324.00
Distance/front: 62.00
Number/teeth: 9
B+: M10
Position/50: 60
Terminal 50: M6
Gear type: DD
Distance 2: 127.00
Distance 3: 89.50
Distance mm: 89.50
Rotation: CW
Total length mm: 386.00
Drive type: Steel
Product info: BN
Waterproof: No
Oil sealed: No
Number/mounting holes: 3 (0)

Files

  • OEM
    azk5113, azk5117, AZK5193, bng4/24cr165sr, BNG4/24CRS165, bng4/24crs165sr, DLT039567, F032110601, R23.13, ST-1509, 0001 402 011, 0001 402 043, 0001 402 058, 0001 402 059, 0001 410 029, 0001 414 002, 0001 414 017, 0001 414 018, 0001 415 010, 0001 416 013, 0001 416 017, 0001 416 027, 10.130.121, 11.130.005, 11.139.034, 16/1, 21-5/24, 51.26201-7014, 90.80110-5110, 131, 321, 513, 04667, 06710, 22609, 01178720, 1178720, 0001402043, 0001402059, 0001410029, 0001410030, 0001414017, 0001415010, 0001416013, 5001682, 05710926, 6130000, 008961949, 9124340, 9125290, 12343770, 19024578, 0025841025, 82224044, 614090004, 614090018, 614090022, 61500090022, 61500090030, 161500090030

  • Normalised article numbler
    azk5113, azk5117, azk5193, bng424cr165sr, bng424crs165, bng424crs165sr, cst10624, cst10839, dlt039567, drs1340, drs1550, f032110601, f042002117, f042s02117, is0005, is0655, is9051, lrs00840, lrs00843, ms469, ms536, ms552, r2313, s0151, s0328, st1509, str2385, str50138, 131, 161, 321, 513, 04667, 06710, 21524, 22609, 33423, 33438, 33449, 33645, 103806, 220219, 220219a, 220253, 220253a, 220264, 220264a, 450128, 450331, 01178720, 1178720, 0001402011, 0001402043, 0001402058, 0001402059, 0001410029, 0001410030, 0001414002, 0001414017, 0001414018, 0001415010, 0001416013, 0001416017, 0001416027, 5001682, 05710926, 6130000, 8811340, 008961949, 9124340, 9125290, 10130121, 11090165, 11130005, 11139034, 12343770, 19024578, 0025841025, 063216733, 82224044, 338009094, 614090004, 614090018, 614090022, 811101093, 943214376, 51262017014, 61500090022, 61500090030, 90801105110, 161500090030
  • Description
    Start 24V-5.4kW fits Volvo 24V - 5.4kW, 9k A - 89mm, B - 48mm For Yourex product order 91-600-2059

    Voltage: 24
    kW: 5.4
    Mounting flange: 89.00
    Drive distance: 47.50
    Mounting hole 3 mm: 11.00
    Mounting hole 2 mm: 11.00
    Mounting hole 1 mm: 11.00
    Distance/back: 324.00
    Distance/front: 62.00
    Number/teeth: 9
    B+: M10
    Position/50: 60
    Terminal 50: M6
    Gear type: DD
    Distance 2: 127.00
    Distance 3: 89.50
    Distance mm: 89.50
    Rotation: CW
    Total length mm: 386.00
    Drive type: Steel
    Product info: BN
    Waterproof: No
    Oil sealed: No
    Number/mounting holes: 3 (0)

    Files

  • Suitable for these vehicles

    • OEM
      azk5113, azk5117, AZK5193, bng4/24cr165sr, BNG4/24CRS165, bng4/24crs165sr, DLT039567, F032110601, R23.13, ST-1509, 0001 402 011, 0001 402 043, 0001 402 058, 0001 402 059, 0001 410 029, 0001 414 002, 0001 414 017, 0001 414 018, 0001 415 010, 0001 416 013, 0001 416 017, 0001 416 027, 10.130.121, 11.130.005, 11.139.034, 16/1, 21-5/24, 51.26201-7014, 90.80110-5110, 131, 321, 513, 04667, 06710, 22609, 01178720, 1178720, 0001402043, 0001402059, 0001410029, 0001410030, 0001414017, 0001415010, 0001416013, 5001682, 05710926, 6130000, 008961949, 9124340, 9125290, 12343770, 19024578, 0025841025, 82224044, 614090004, 614090018, 614090022, 61500090022, 61500090030, 161500090030

    • Normalised article numbler
      azk5113, azk5117, azk5193, bng424cr165sr, bng424crs165, bng424crs165sr, cst10624, cst10839, dlt039567, drs1340, drs1550, f032110601, f042002117, f042s02117, is0005, is0655, is9051, lrs00840, lrs00843, ms469, ms536, ms552, r2313, s0151, s0328, st1509, str2385, str50138, 131, 161, 321, 513, 04667, 06710, 21524, 22609, 33423, 33438, 33449, 33645, 103806, 220219, 220219a, 220253, 220253a, 220264, 220264a, 450128, 450331, 01178720, 1178720, 0001402011, 0001402043, 0001402058, 0001402059, 0001410029, 0001410030, 0001414002, 0001414017, 0001414018, 0001415010, 0001416013, 0001416017, 0001416027, 5001682, 05710926, 6130000, 8811340, 008961949, 9124340, 9125290, 10130121, 11090165, 11130005, 11139034, 12343770, 19024578, 0025841025, 063216733, 82224044, 338009094, 614090004, 614090018, 614090022, 811101093, 943214376, 51262017014, 61500090022, 61500090030, 90801105110, 161500090030
