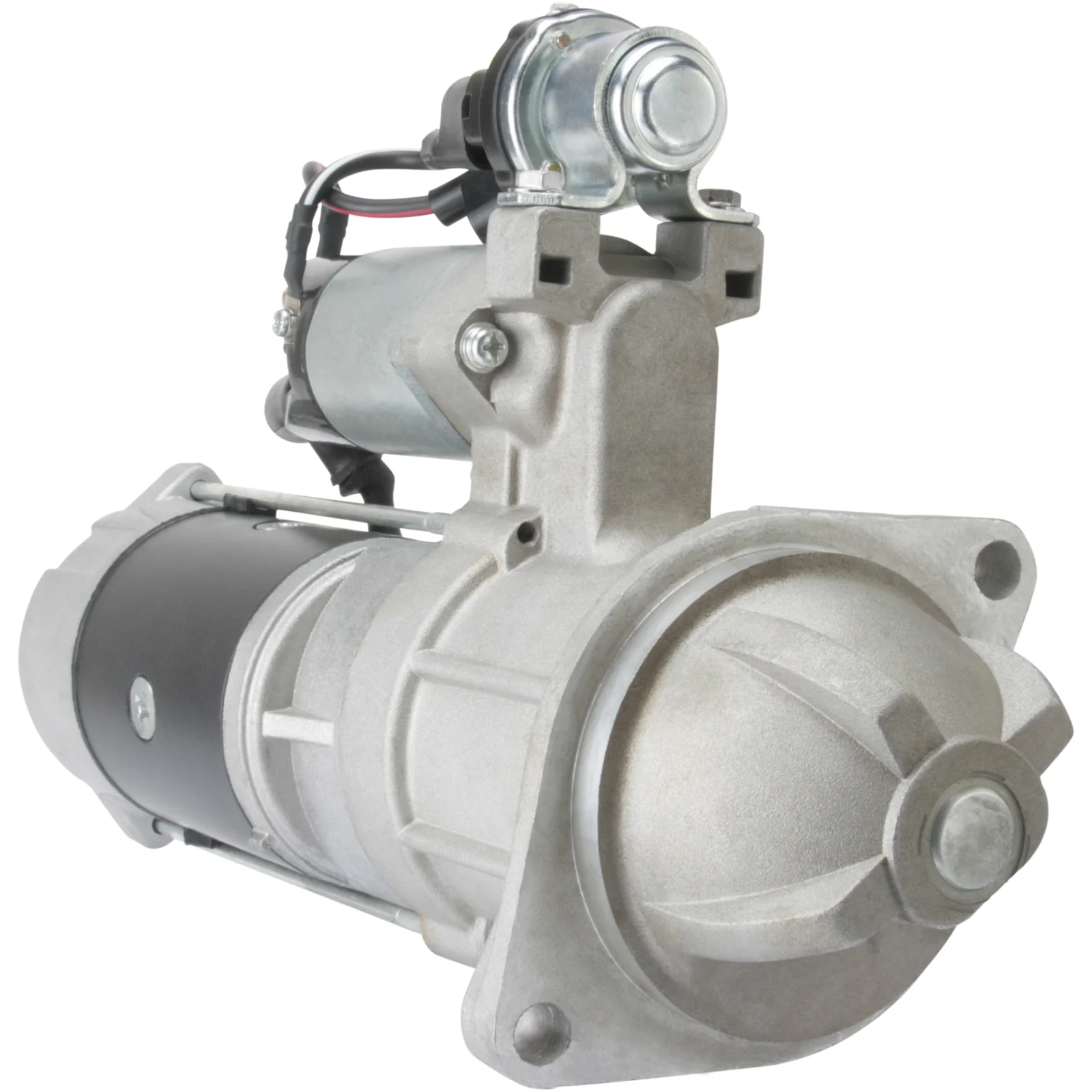

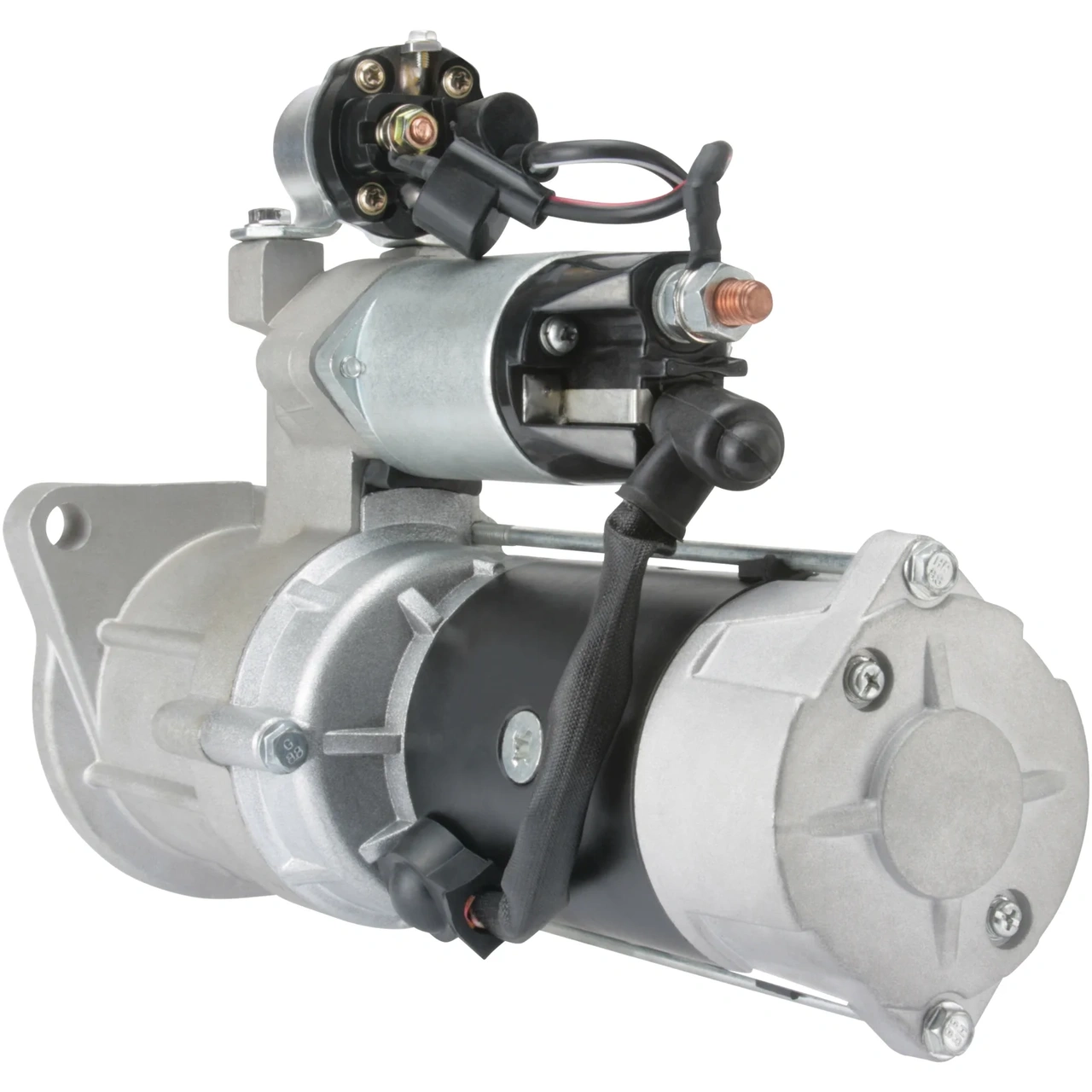

HC-Cargo Starter motor
HC-Cargo Starter motor
Article no.: F032110656

HC-Cargo Starter motor

Technical info:

Voltage: 24, kW: 5.5, No./teeth: 11, Rotation: CW

Description

Voltage: 24
kW: 5.5
Mounting flange: 105.00
Drive distance: 13.50
Mounting hole 2 mm: 13.00
Mounting hole 1 mm: 13.00
Distance/rear: 300.00
Distance/front: 67.00
Number of teeth: 11
B+: M10
Position/50: 5
Terminal 50: M5
Gear type: GR
Distance mm: 150.00
Rotation: CW
Total length mm: 368.00
Drive type: Steel
Product info: BN
Waterproof: No
Oil sealed: No
Remarks: w/ safety switch.
Number of mounting holes: 2 (0)

Files

  • OEM
    0-23000-1290, 0-23000-1292, 0-23000-1410, 0-23000-1550, 0-23000-1750, 0-23000-1752, 0-23000-2560, 0-23000-2561, F032110656, 600-813-3320, 600-813-3350, 600-813-4420, 600-813-4421

  • Normalised article numbler
    cst50603, f032110656, f042001201, lrs2172, s9034, str29017, 8ea730290001, 4273, 18078, 18078n, 18104, 18104n, 18521, 220626, 220626a, 453346, 0230001290, 0230001292, 0230001410, 0230001550, 0230001750, 0230001752, 0230002560, 0230002561, 643040114, 941530112, 941530113, 941551112, 6008133320, 6008133350, 6008134420, 6008134421
  • Description
    Voltage: 24
    kW: 5.5
    Mounting flange: 105.00
    Drive distance: 13.50
    Mounting hole 2 mm: 13.00
    Mounting hole 1 mm: 13.00
    Distance/rear: 300.00
    Distance/front: 67.00
    Number of teeth: 11
    B+: M10
    Position/50: 5
    Terminal 50: M5
    Gear type: GR
    Distance mm: 150.00
    Rotation: CW
    Total length mm: 368.00
    Drive type: Steel
    Product info: BN
    Waterproof: No
    Oil sealed: No
    Remarks: w/ safety switch.
    Number of mounting holes: 2 (0)

    Files

  • Suitable for these vehicles

    • OEM
      0-23000-1290, 0-23000-1292, 0-23000-1410, 0-23000-1550, 0-23000-1750, 0-23000-1752, 0-23000-2560, 0-23000-2561, F032110656, 600-813-3320, 600-813-3350, 600-813-4420, 600-813-4421

    • Normalised article numbler
      cst50603, f032110656, f042001201, lrs2172, s9034, str29017, 8ea730290001, 4273, 18078, 18078n, 18104, 18104n, 18521, 220626, 220626a, 453346, 0230001290, 0230001292, 0230001410, 0230001550, 0230001750, 0230001752, 0230002560, 0230002561, 643040114, 941530112, 941530113, 941551112, 6008133320, 6008133350, 6008134420, 6008134421
