HC-Cargo Starter motor
HC-Cargo Starter motor
Article no.: F032110944

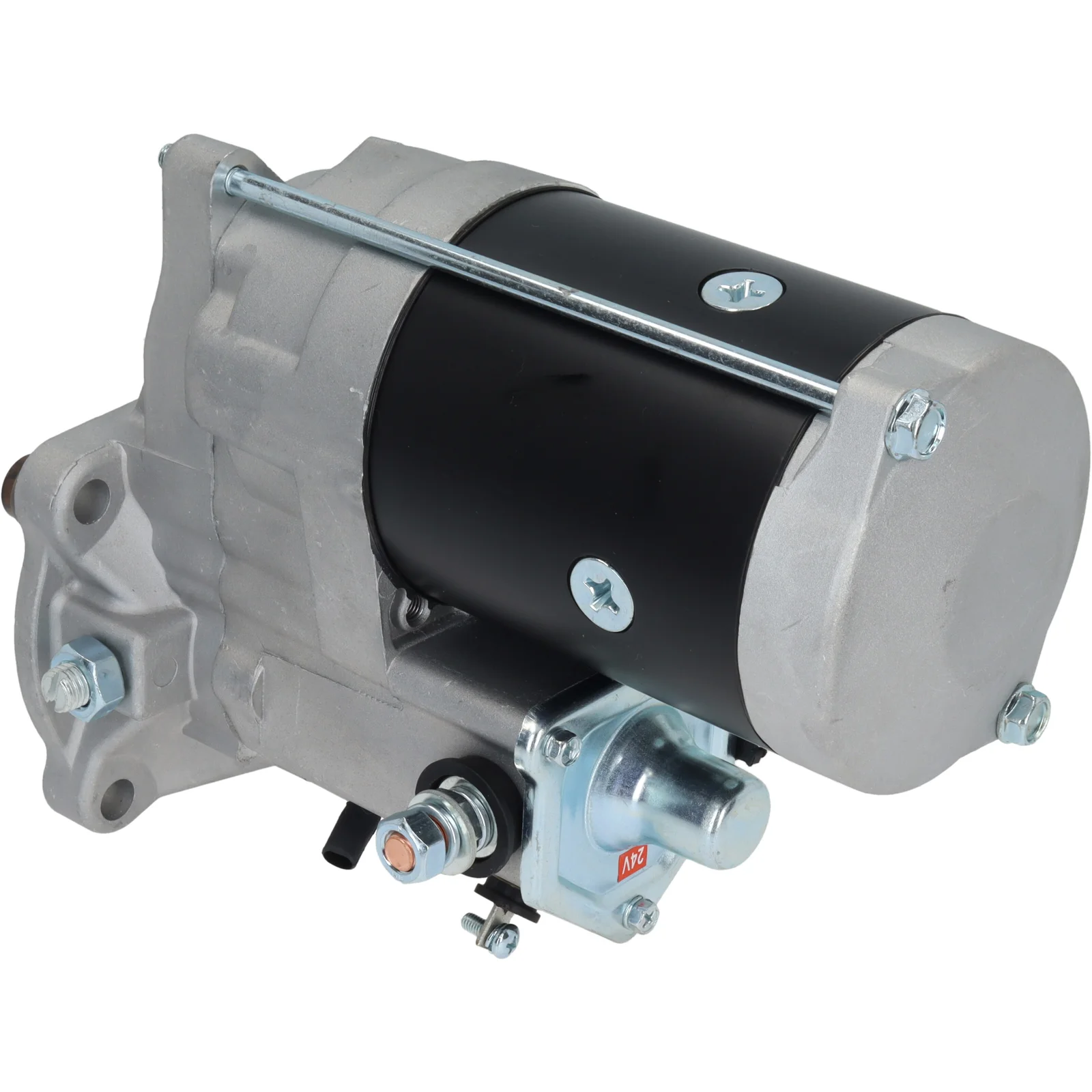

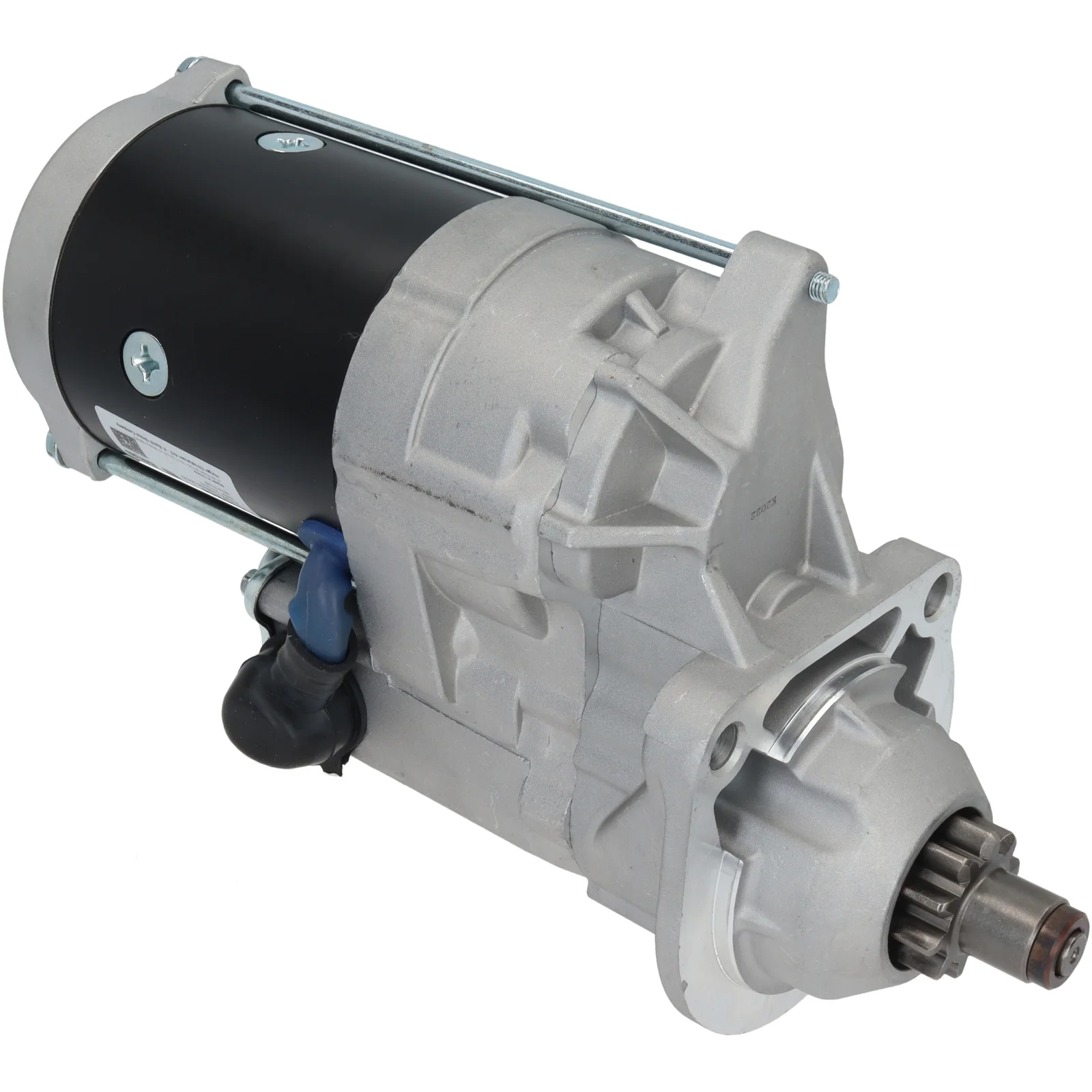

HC-Cargo Starter motor

Technical info:

Voltage: 24, kW: 5.5, No./teeth: 10, Rotation: CW

Description

Voltage: 24
kW: 5.5
Mounting flange: 89.00
Drive distance: 47.50
Mounting hole 3 mm: 12.50
Mounting hole 2 mm: 11.00
Mounting hole 1 mm: 11.00
Distance/back: 162.00
Distance/front: 73.50
Number/teeth: 10
B+: M10
Position/50: 35
Terminal 50: M5
Gear type: GR
Distance 2: 127.00
Distance 3: 90.00
Distance mm: 90.00
Rotation: CW
Total length mm: 322.00
Clutch type: Wet
Drive type: Steel
Prod. info: BN
Waterproof: No
Oil sealed: Yes
Number/mounting holes: 3 (0)

Files

  • OEM
    F032110944, 3e5381, 6T0380, 8c4774, 8C4775, 9w3748, 204-9742, 128000-5730, 128000-5731, 128000-5732, 128000-5733

  • Normalised article numbler
    cst40608, drs3544, dsn2003, f032110944, f042000247, f042s00247, ga21918, s6025, str30029, str9118, 3e5381, 6t0380, 8c4774, 8c4775, 8ea737131001, 9w3748, 4342, 6405n, 17616, 17616n, 20930, 103921, 105294, 452196, 2049742, 672016104, 1280005730, 1280005731, 1280005732, 1280005733
  • Description
    Voltage: 24
    kW: 5.5
    Mounting flange: 89.00
    Drive distance: 47.50
    Mounting hole 3 mm: 12.50
    Mounting hole 2 mm: 11.00
    Mounting hole 1 mm: 11.00
    Distance/back: 162.00
    Distance/front: 73.50
    Number/teeth: 10
    B+: M10
    Position/50: 35
    Terminal 50: M5
    Gear type: GR
    Distance 2: 127.00
    Distance 3: 90.00
    Distance mm: 90.00
    Rotation: CW
    Total length mm: 322.00
    Clutch type: Wet
    Drive type: Steel
    Prod. info: BN
    Waterproof: No
    Oil sealed: Yes
    Number/mounting holes: 3 (0)

    Files

  • Suitable for these vehicles

    • OEM
      F032110944, 3e5381, 6T0380, 8c4774, 8C4775, 9w3748, 204-9742, 128000-5730, 128000-5731, 128000-5732, 128000-5733

    • Normalised article numbler
      cst40608, drs3544, dsn2003, f032110944, f042000247, f042s00247, ga21918, s6025, str30029, str9118, 3e5381, 6t0380, 8c4774, 8c4775, 8ea737131001, 9w3748, 4342, 6405n, 17616, 17616n, 20930, 103921, 105294, 452196, 2049742, 672016104, 1280005730, 1280005731, 1280005732, 1280005733
