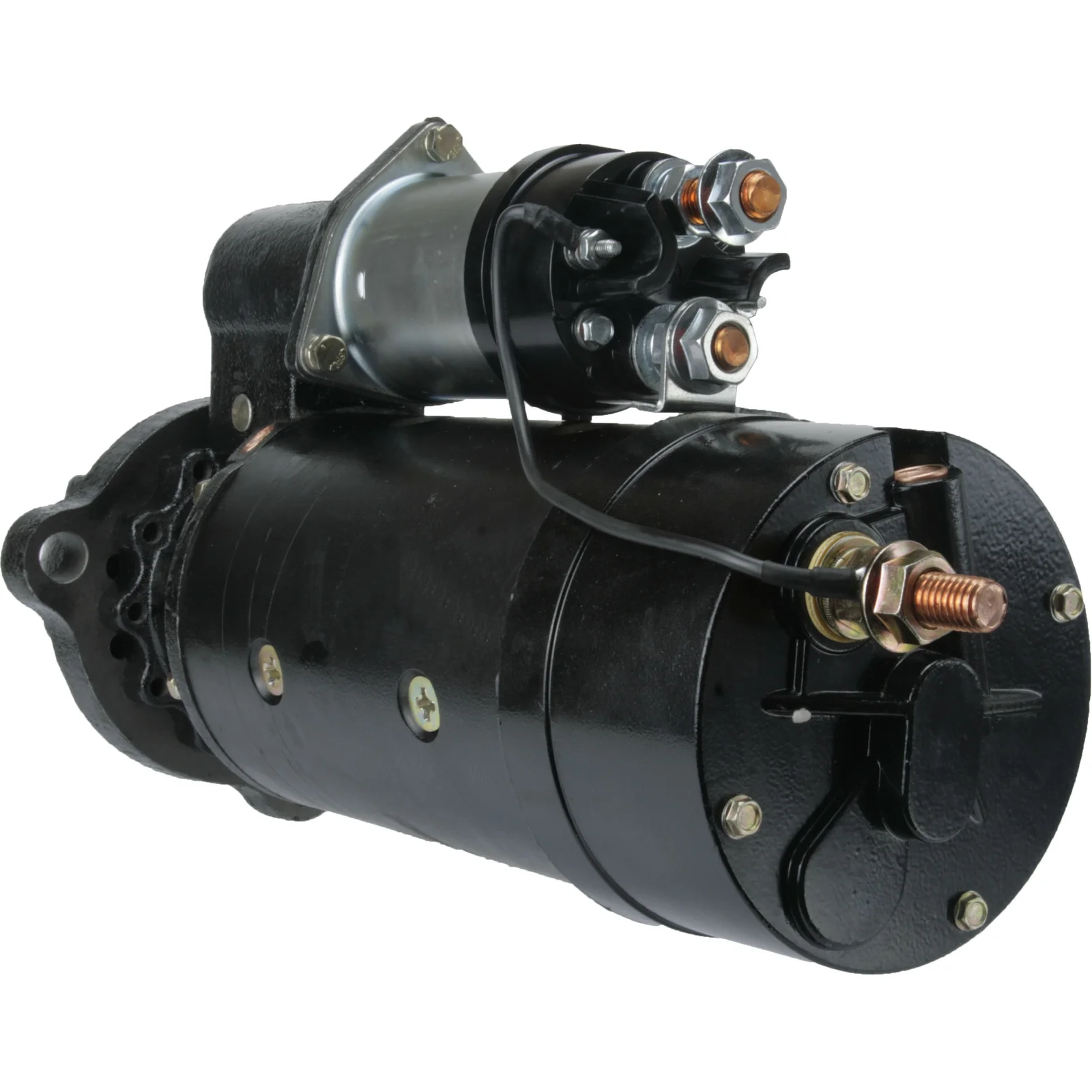

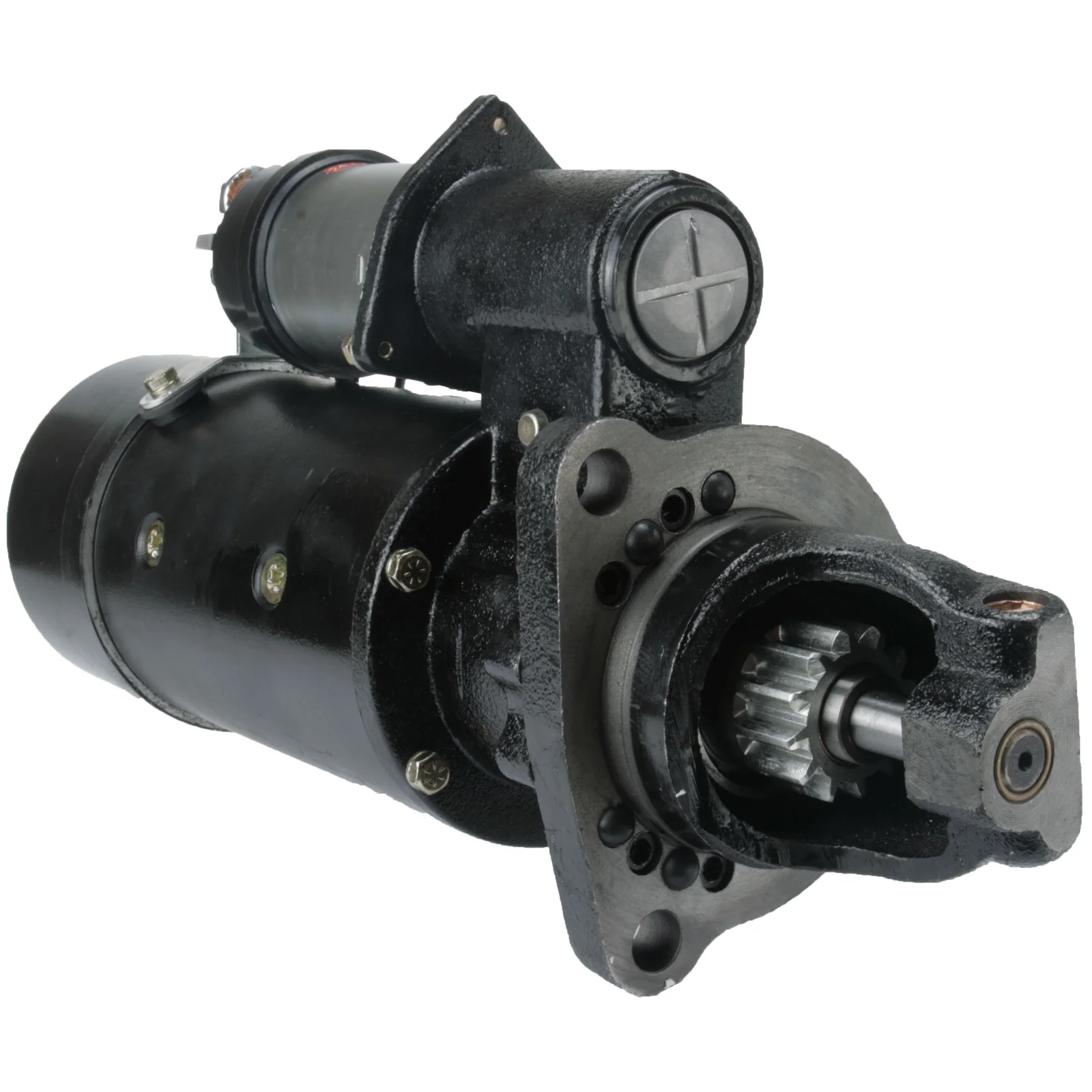

- Starter motor
-
HC-Cargo Starter motor
- Starter motor
-
HC-Cargo Starter motor
Article no.: F032110999
HC-Cargo Starter motor
Voltage: 24, No./teeth: 12, Rotation: CW, Insulated return: Yes
Description
Cat Starter motor 24V, 42MT, 12 teeth 24V - 7.5kW, 12k Delco Remy 40MT type suitable = ST-3713. Delco Remy 39MT type suitable = ST-6823 For Yourex product order ST-6360
Voltage: 24
Insulated return: Yes
Mounting flange: 92.00
Drive distance: 46.50
Mounting hole 3 mm: 16.50
Mounting hole 2 mm: 16.50
Mounting hole 1 mm: 16.50
Distance/rear: 350.00
Distance/front: 102.00
Number/teeth: 12
B+: 1/2" UNC
Position/B+: 60
Position/50: 17
Terminal 50: 3/16" UNF
Gear type: DD
Distance 2: 126.50
Distance 3: 126.50
Distance mm: 126.50
Rotation: CW
B-: 1/2" UNC
Total length mm: 499.50
Drive type: Steel
Product info: BN
Waterproof: No
Oil sealed: Yes
Remarks: Replacing: 42MT.
Number/mounting holes: 3 (0)
Voltage: 24
Insulated return: Yes
Mounting flange: 92.00
Drive distance: 46.50
Mounting hole 3 mm: 16.50
Mounting hole 2 mm: 16.50
Mounting hole 1 mm: 16.50
Distance/rear: 350.00
Distance/front: 102.00
Number/teeth: 12
B+: 1/2" UNC
Position/B+: 60
Position/50: 17
Terminal 50: 3/16" UNF
Gear type: DD
Distance 2: 126.50
Distance 3: 126.50
Distance mm: 126.50
Rotation: CW
B-: 1/2" UNC
Total length mm: 499.50
Drive type: Steel
Product info: BN
Waterproof: No
Oil sealed: Yes
Remarks: Replacing: 42MT.
Number/mounting holes: 3 (0)
Files
-
OEM
0r2186, 0R4256, 0R4257, 0r5207, 0r5270, F032110999, F048972, F6HT110001EA, F6HZ11002EA, M007T03774, M007T03777, m7t03774, m7t03777, mfy6201i, mfy6201k, mfy6401k, mfy6401l, mfy6601i, mfy6601k, OR2186, R6742014240, RE28782, STR1016, STR1019, T 3T 4586, T 8C 3651, us863, 0001 420 004, 2p2501, 2s0900, 2s900, 3A1872, 3A1872H, 3p0006, 3p0007, 3p0110, 3p3006, 3p3007, 3r7356, 3T2371, 3T2579, 3t2647, 3t2652, 3t2660, 3T2764, 3t2772, 3t4581, 3t4582, 3T4583, 3t4584, 3T4586, 3t4586, 3t6305, 3y8852, 4n3181, 4n3182, 4n3347, 4n3348, 4n3350, 4N7752, 4n7901, 5a6494, 5a6495, 5a6522, 5r3155, 5r3857, 6V5227, 6V5537, 7t0798, 7t0799, 7t1082, 7t1799, 8c3597, 8c3647, 8c3650, 8c3651, 8n2145, 9g4337, 9g4338, 9g4339, 9m1662, 10R0399, 106-8552, 106-8555, 323-859, 25900, 128000-7510, 128000-7520, 228000-0070, 673782C91, 690644C91, 1109298, 1109831, 1113811, 1113817, 1113827, 1113840, 1113853, 1113901, 1113904, 1113910, 1113919, 1113923, 1113928, 1113930, 1113934, 1113942, 1113943, 1113949, 1113950, 1113959, 1113960, 1113962, 1113967, 1113969, 1113982, 1113990, 1113992, 1113993, 1113998, 1114706, 1114711, 1114712, 1114729, 1114735, 1114740, 1114742, 1114759, 1114767, 1114777, 1114793, 1114805, 1114843, 1114845, 1114856, 1114859, 1114860, 1114862, 1114872, 1114905, 1114910, 1114914, 1114917, 1114945, 1114949, 1114953, 1114968, 1114980, 1114989, 1219520H92, 1219521H92, 1219526H92, 1221592H91, 1243215H92, 0001420001, 0001420003, 0001420004, 0001420005, 0001420009, 0001420013, 1516810R, 1990204, 1990283, 1990297, 1990324, 1990343, 1990357, 1990359, 1990360, 1990364, 1990366, 1990373, 1990402, 1990413, 1990414, 1990432, 1990433, 1990453, 1990455, 1990457, 1990474, 1990497, 1990809, 1993704, 1993796, 1993797, 1993804, 1993808, 1993814, 1993815, 1993833, 1993945, 2071560, 3011895, 3604233rx, 3604484rx, 3604784rx, 3907821, 3910646, 3938502, 4816170, 5284105, 5284106, 10461025, 10461031, 10461107, 10461136, 10461357, 10461533, 10478864, 10479100, 10479115, 10479118, 10479264, 39002661, 6742014240 -
Normalised article numbler
0r2186, 0r4256, 0r4257, 0r5207, 0r5270, bso7165, bso7190, bso7191, cst60601, drz5104, drz5115, drz5119, drz5166, f032110999, f042003074, f042s03074, f048972, f6ht110001ea, f6hz11002ea, ga21367, is1179, les0313, m007t03774, m007t03777, m7t03774, m7t03777, mfy6201i, mfy6201k, mfy6401k, mfy6401l, mfy6601i, mfy6601k, ms75, or2186, r6742014240, re28782, s1006, s1050, s1133, s1143s, s3133s, sr963x, str1016, str1019, str20003, str20015, str4303, str60201, t3t4586, t8c3651, us863, 2p2501, 2s0900, 2s900, 3a1872, 3a1872h, 3p0006, 3p0007, 3p0110, 3p3006, 3p3007, 3r7356, 3t2371, 3t2579, 3t2647, 3t2652, 3t2660, 3t2764, 3t2772, 3t4581, 3t4582, 3t4583, 3t4584, 3t4586, 3t6305, 3y8852, 4n3181, 4n3182, 4n3347, 4n3348, 4n3350, 4n7752, 4n7901, 5a6494, 5a6495, 5a6522, 5r3155, 5r3857, 6v5227, 6v5537, 7t0798, 7t0799, 7t1082, 7t1799, 8c3597, 8c3647, 8c3650, 8c3651, 8ea730303001, 8ea732855001, 8n2145, 9g4337, 9g4338, 9g4339, 9m1662, 10r0399, 3052, 3054, 3370, 3785, 3948, 3948n, 3955, 4367, 4402, 4746, 4987, 6207, 6232, 6360, 6360n, 6360r, 6361, 6363n, 6369, 6378, 6526, 6544, 6557, 6779, 6780, 6823n, 18005, 18021, 23381a, 25900, 33515, 33577, 33614, 33617, 33756, 50103, 50152, 60823, 60863, 103898, 323859, 450438, 451267, 452213, 501031, 501032, 501521, 501522, 673782c91, 690644c91, 1068552, 1068555, 1109298, 1109831, 1113811, 1113817, 1113827, 1113840, 1113853, 1113901, 1113904, 1113910, 1113919, 1113923, 1113928, 1113930, 1113934, 1113942, 1113943, 1113949, 1113950, 1113959, 1113960, 1113962, 1113967, 1113969, 1113982, 1113990, 1113992, 1113993, 1113998, 1114706, 1114711, 1114712, 1114729, 1114735, 1114740, 1114742, 1114759, 1114767, 1114777, 1114793, 1114805, 1114843, 1114845, 1114856, 1114859, 1114860, 1114862, 1114872, 1114905, 1114910, 1114914, 1114917, 1114945, 1114949, 1114953, 1114968, 1114980, 1114989, 1219520h92, 1219521h92, 1219526h92, 1221592h91, 1243215h92, 0001420001, 0001420003, 0001420004, 0001420005, 0001420009, 0001420013, 1516810r, 1990204, 1990283, 1990297, 1990324, 1990343, 1990357, 1990359, 1990360, 1990364, 1990366, 1990373, 1990402, 1990413, 1990414, 1990432, 1990433, 1990453, 1990455, 1990457, 1990474, 1990497, 1990809, 1993704, 1993796, 1993797, 1993804, 1993808, 1993814, 1993815, 1993833, 1993945, 2071560, 3011895, 3604233rx, 3604484rx, 3604784rx, 3907821, 3910646, 3938502, 4816170, 5284105, 5284106, 8880293, 10461025, 10461031, 10461107, 10461136, 10461357, 10461533, 10478864, 10479100, 10479115, 10479118, 10479264, 39002661, 42001377, 91013703n, 600068114, 641536133, 672013124, 672014124, 1280007510, 1280007520, 2280000070, 6742014240
-
