Article no.: F032111020

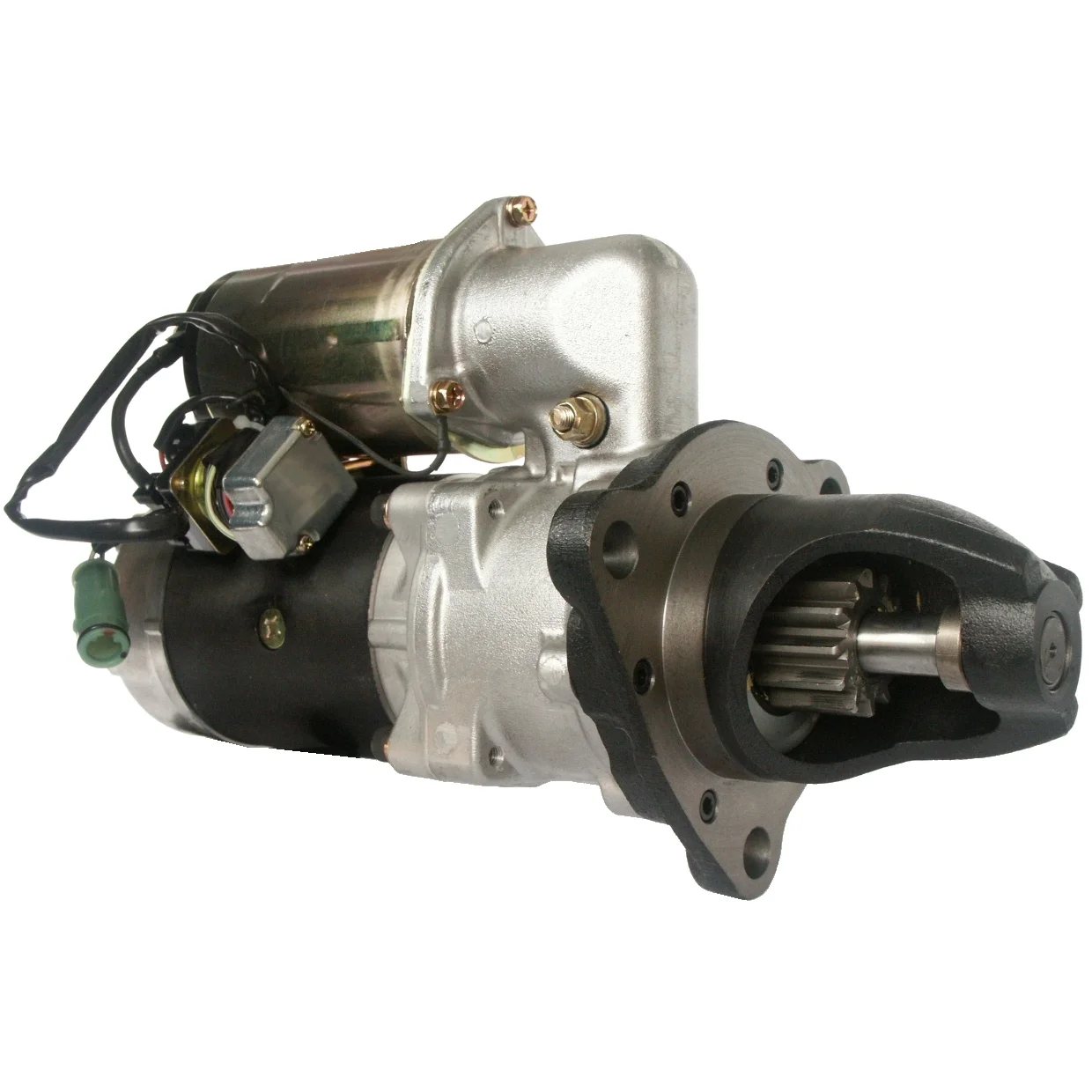

HC-Cargo Starter motor

Technical info:

Voltage: 24, kW: 7.5, No./teeth: 12, Rotation: CW

Description

Voltage: 24
kW: 7.5
Mounting flange: 92.00
Drive distance: 47.00
Mounting hole 3 mm: 17.00
Distance / back: 302.50
Distance / front: 104.00
Number / teeth: 12
B+: M10
Position / 50: 15
Terminal 50: Plug
Gear type: GR
Distance 2: 128.50
Distance 3: 128.50
Distance mm: 128.50
Rotation: CW
Total length mm: 407.00
Drive type: Steel
Product info: BN
Waterproof: No
Oil sealed: Yes
Remarks: w / safety switch.
Number / mounting holes: 3 (0)

Files

  • OEM
    0-23000-3331, 0-23000-3332, 0-23000-3335, 0-23000-6530, 0-23000-6531, 0-23000-6532, 0-23000-6533, 0-23000-7020, 0-23000-7021, 0-23000-8300, F032111020, 600-813-4670, 600-813-4671, 600-813-4672, 600-813-6632

  • Normalised article numbler
    cst50614, f032111020, f042000248, f042s00248, s8832b, s9006, s9271, sn00215r, str75203, str9119, 18107, 18107n, 18522n, 254576, 451409, 91284007, 0230003331, 0230003332, 0230003335, 0230006530, 0230006531, 0230006532, 0230006533, 0230007020, 0230007021, 0230008300, 6008134670, 6008134671, 6008134672, 6008136632
  • Description
    Voltage: 24
    kW: 7.5
    Mounting flange: 92.00
    Drive distance: 47.00
    Mounting hole 3 mm: 17.00
    Distance / back: 302.50
    Distance / front: 104.00
    Number / teeth: 12
    B+: M10
    Position / 50: 15
    Terminal 50: Plug
    Gear type: GR
    Distance 2: 128.50
    Distance 3: 128.50
    Distance mm: 128.50
    Rotation: CW
    Total length mm: 407.00
    Drive type: Steel
    Product info: BN
    Waterproof: No
    Oil sealed: Yes
    Remarks: w / safety switch.
    Number / mounting holes: 3 (0)

    Files

  • Suitable for these vehicles

    • OEM
      0-23000-3331, 0-23000-3332, 0-23000-3335, 0-23000-6530, 0-23000-6531, 0-23000-6532, 0-23000-6533, 0-23000-7020, 0-23000-7021, 0-23000-8300, F032111020, 600-813-4670, 600-813-4671, 600-813-4672, 600-813-6632

    • Normalised article numbler
      cst50614, f032111020, f042000248, f042s00248, s8832b, s9006, s9271, sn00215r, str75203, str9119, 18107, 18107n, 18522n, 254576, 451409, 91284007, 0230003331, 0230003332, 0230003335, 0230006530, 0230006531, 0230006532, 0230006533, 0230007020, 0230007021, 0230008300, 6008134670, 6008134671, 6008134672, 6008136632
