Article no.: F032111212

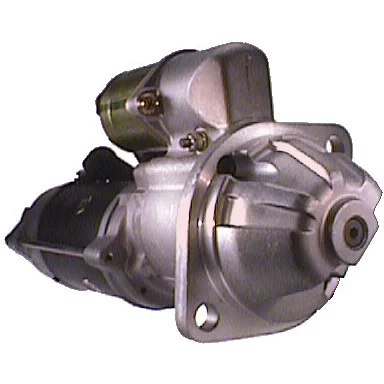

HC-Cargo Starter motor

Technical info:

Voltage: 24, kW: 2.8, No./teeth: 9, Rotation: CW

Description

Voltage: 24
kilowatt: 2.8
Mount. flange: 95.00
Drive distance: 20.00
Mount. hole 2 mm: 13.50
Mount. hole 1 mm: 13.50
Distance / back: 270.00
Distance / front: 61.00
Number / teeth: 9
B+: M8
Terminal 50: Plug
Gear type: GR
Distance in millimeters: 119.00
Rotation: CW
Total length in millimeters: 332.00
Drive type: Steel
Manufacturing info: BN
Waterproof: No
Oil sealed: No
Number / mounting holes: 2 (0)

Files

  • OEM
    0-23000-0040, 0-23000-0041, 0-23000-0042, 0-23000-0050, 0-23000-0051, 0-23000-0052, 0-23000-0053, 0-23000-0060, 0-23000-0061, 0-23000-0062, 0-23000-0063, 0-23000-0330, 0-23000-0331, 0-23000-0332, 0-23000-0333, F032111212, 600-813-3111, 600-813-3121, 600-813-3122, 600-813-3130, 600-813-4000, 600-813-4410

  • Normalised article numbler
    cst50608, f032111212, lrs02632, s8639, s8639a, s9213, sn00224r, str29003, 18086, 220624, 220624a, 254034, 454305, 91284043, 91284044, 0230000040, 0230000041, 0230000042, 0230000050, 0230000051, 0230000052, 0230000053, 0230000060, 0230000061, 0230000062, 0230000063, 0230000330, 0230000331, 0230000332, 0230000333, 643041094, 941545092, 6008133111, 6008133121, 6008133122, 6008133130, 6008134000, 6008134410
  • Description
    Voltage: 24
    kilowatt: 2.8
    Mount. flange: 95.00
    Drive distance: 20.00
    Mount. hole 2 mm: 13.50
    Mount. hole 1 mm: 13.50
    Distance / back: 270.00
    Distance / front: 61.00
    Number / teeth: 9
    B+: M8
    Terminal 50: Plug
    Gear type: GR
    Distance in millimeters: 119.00
    Rotation: CW
    Total length in millimeters: 332.00
    Drive type: Steel
    Manufacturing info: BN
    Waterproof: No
    Oil sealed: No
    Number / mounting holes: 2 (0)

    Files

  • Suitable for these vehicles

    • OEM
      0-23000-0040, 0-23000-0041, 0-23000-0042, 0-23000-0050, 0-23000-0051, 0-23000-0052, 0-23000-0053, 0-23000-0060, 0-23000-0061, 0-23000-0062, 0-23000-0063, 0-23000-0330, 0-23000-0331, 0-23000-0332, 0-23000-0333, F032111212, 600-813-3111, 600-813-3121, 600-813-3122, 600-813-3130, 600-813-4000, 600-813-4410

    • Normalised article numbler
      cst50608, f032111212, lrs02632, s8639, s8639a, s9213, sn00224r, str29003, 18086, 220624, 220624a, 254034, 454305, 91284043, 91284044, 0230000040, 0230000041, 0230000042, 0230000050, 0230000051, 0230000052, 0230000053, 0230000060, 0230000061, 0230000062, 0230000063, 0230000330, 0230000331, 0230000332, 0230000333, 643041094, 941545092, 6008133111, 6008133121, 6008133122, 6008133130, 6008134000, 6008134410
