Article no.: F032111218

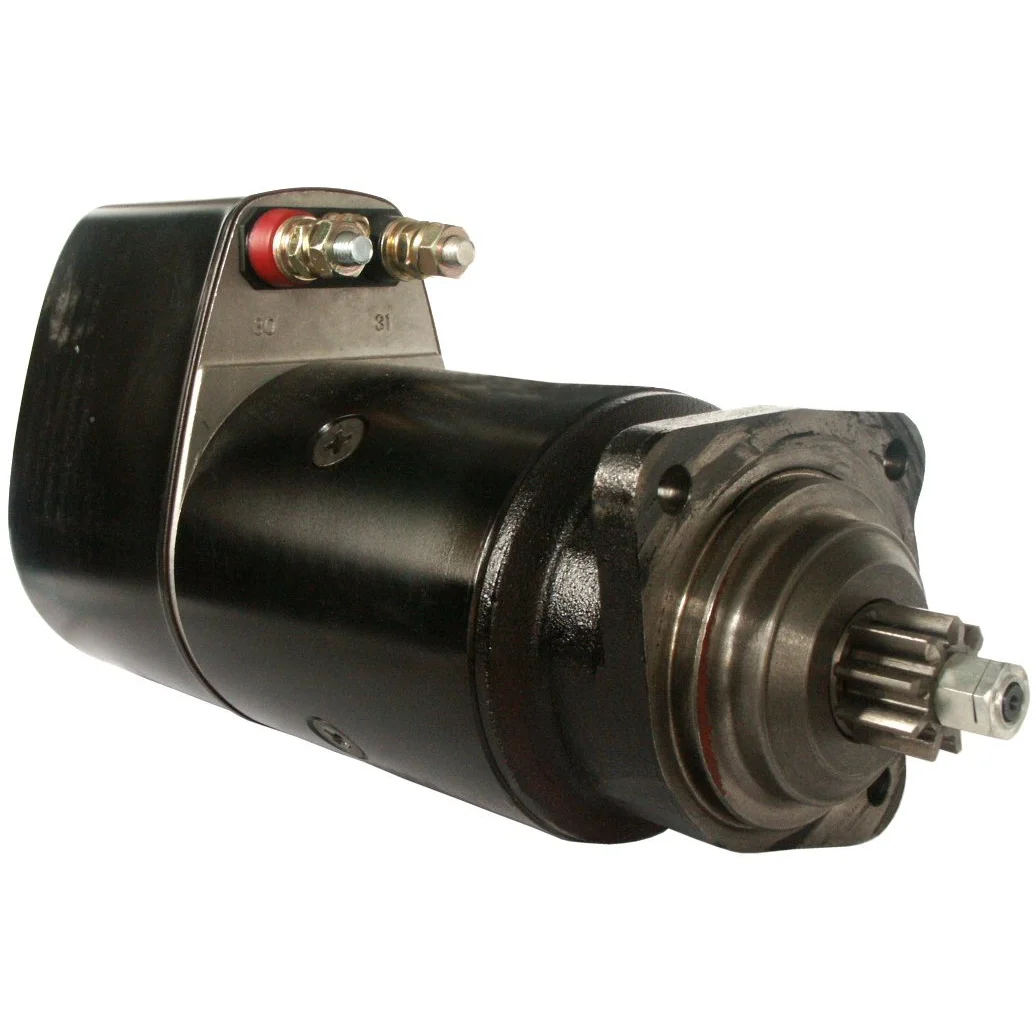

HC-Cargo Starter motor

Technical info:

Voltage: 24, kW: 5.4, No./teeth: 9, Rotation: CW

Description

Start 24V-5.4kW fits Penta 24V - 5.4kW, 9k, insulated return A - 89mm, B - 48mm 12V-variant is 91-605-8009 For Yourex product order 91-605-6028

Voltage: 24
kW: 5.4
Insulated return: Yes
Mounting flange: 89.00
Drive distance: 48.00
Mounting hole 3 mm: 11.00
Mounting hole 2 mm: 11.00
Mounting hole 1 mm: 11.00
Distance / back: 326.50
Distance / front: 61.50
Number / teeth: 9
B+: M10
Position / 50: 60
Terminal 50: M6
Gear type: DD
Distance 2: 127.00
Distance 3: 89.00
Distance mm: 89.00
Rotation: CW
B-: M10
Total length mm: 388.00
Drive type: Steel
Product info: BN
Waterproof: No
Oil sealed: No
Number / mounting holes: 3 (0)

Files

  • OEM
    AZK 5431, AZK5431, cs955, F032111218, R23.33, 0001 402 079, 0001 414 011, 0001 416 028, 11.139.077, 528, 9068, 11139 077, 241011, 842774, 843510, 847307, 860543, 881683, 912006-05, 0001402079, 0001414011, 0001416028, 3803079, 6330000, 9125350, 19024028, 060520796, 9000847307, 605720100076, 623200700047

  • Normalised article numbler
    azk5431, bso7294, cs955, cst10776, drs3764, f032111218, f042002119, f042s02119, is9068, lrs01807, lrs01812, ms487, ms703, r2333, s0338, str2388, 8ea015642441, 8ea737100001, 528, 4165, 9068, 10955, 18388, 33691, 220264, 220264a, 241011, 450123, 450206, 842774, 843510, 847307, 860543, 881683, 0001402079, 0001414011, 0001416028, 3803079, 6330000, 9125350, 11090108, 11139077, 19024028, 060520796, 91200605, 638011094, 638111094, 943252046, 0986019653, 9000847307, 605720100076, 623200700047, 943252046010
  • Description
    Start 24V-5.4kW fits Penta 24V - 5.4kW, 9k, insulated return A - 89mm, B - 48mm 12V-variant is 91-605-8009 For Yourex product order 91-605-6028

    Voltage: 24
    kW: 5.4
    Insulated return: Yes
    Mounting flange: 89.00
    Drive distance: 48.00
    Mounting hole 3 mm: 11.00
    Mounting hole 2 mm: 11.00
    Mounting hole 1 mm: 11.00
    Distance / back: 326.50
    Distance / front: 61.50
    Number / teeth: 9
    B+: M10
    Position / 50: 60
    Terminal 50: M6
    Gear type: DD
    Distance 2: 127.00
    Distance 3: 89.00
    Distance mm: 89.00
    Rotation: CW
    B-: M10
    Total length mm: 388.00
    Drive type: Steel
    Product info: BN
    Waterproof: No
    Oil sealed: No
    Number / mounting holes: 3 (0)

    Files

  • Suitable for these vehicles

    • OEM
      AZK 5431, AZK5431, cs955, F032111218, R23.33, 0001 402 079, 0001 414 011, 0001 416 028, 11.139.077, 528, 9068, 11139 077, 241011, 842774, 843510, 847307, 860543, 881683, 912006-05, 0001402079, 0001414011, 0001416028, 3803079, 6330000, 9125350, 19024028, 060520796, 9000847307, 605720100076, 623200700047

    • Normalised article numbler
      azk5431, bso7294, cs955, cst10776, drs3764, f032111218, f042002119, f042s02119, is9068, lrs01807, lrs01812, ms487, ms703, r2333, s0338, str2388, 8ea015642441, 8ea737100001, 528, 4165, 9068, 10955, 18388, 33691, 220264, 220264a, 241011, 450123, 450206, 842774, 843510, 847307, 860543, 881683, 0001402079, 0001414011, 0001416028, 3803079, 6330000, 9125350, 11090108, 11139077, 19024028, 060520796, 91200605, 638011094, 638111094, 943252046, 0986019653, 9000847307, 605720100076, 623200700047, 943252046010
