Article no.: F032112342

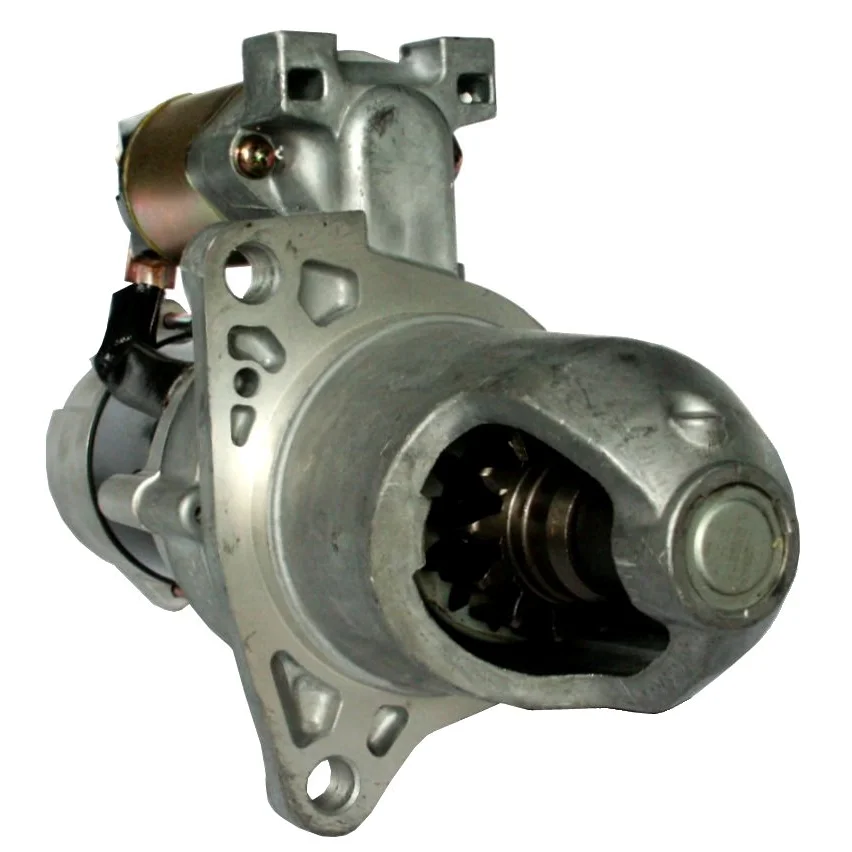

HC-Cargo Starter motor

Technical info:

Voltage: 24, kW: 5.5, No./teeth: 13, Rotation: CW

Description

Voltage: 24
kW: 5.5
Mounting flange: 100.00
Drive distance: 68.00
Mounting hole 3 mm: 13.50
Mounting hole 2 mm: 13.50
Mounting hole 1 mm: 13.50
Distance / back: 239.00
Distance / front: 129.00
Number / teeth: 13
B+: M10
Position / 50: 45
Terminal 50: M5
Gear type: GR
Distance 2: 133.00
Distance 3: 149.00
Distance mm: 109.00
Rotation: CW
Total length mm: 368.00
Drive type: Steel
Production info: BN
Waterproof: No
Oil sealed: No
Number / mounting holes: 3 (0)

Files

  • OEM
    F032112342, M000A0271, M003T95071, M003T95072, M003T95073, M003T95081, M003T95082, M004T55072, M004T55076, M004T55077, M34466, m3t95071, m3t95072, m3t95073, m3t95081, m3t95082, M4T55071, m4t55072, m4t55076, m4t55077, me057200, me057350, me057845, me057985, me057990, mg255301, 36100-83010

  • Normalised article numbler
    cst32600, drs0429, f032112342, f042000237, f042s00237, m000a0271, m003t95071, m003t95072, m003t95073, m003t95081, m003t95082, m004t55072, m004t55076, m004t55077, m34466, m3t95071, m3t95072, m3t95073, m3t95081, m3t95082, m4t55071, m4t55072, m4t55076, m4t55077, me057200, me057350, me057845, me057985, me057990, mg255301, s5047, s5182, str28009, str9107, 17317, 18243, 18243n, 22237mi, 22237mi1, 220618, 220618a, 254334, 452170, 600316, 600885, 626019134, 3610083010
  • Description
    Voltage: 24
    kW: 5.5
    Mounting flange: 100.00
    Drive distance: 68.00
    Mounting hole 3 mm: 13.50
    Mounting hole 2 mm: 13.50
    Mounting hole 1 mm: 13.50
    Distance / back: 239.00
    Distance / front: 129.00
    Number / teeth: 13
    B+: M10
    Position / 50: 45
    Terminal 50: M5
    Gear type: GR
    Distance 2: 133.00
    Distance 3: 149.00
    Distance mm: 109.00
    Rotation: CW
    Total length mm: 368.00
    Drive type: Steel
    Production info: BN
    Waterproof: No
    Oil sealed: No
    Number / mounting holes: 3 (0)

    Files

  • Suitable for these vehicles

    • OEM
      F032112342, M000A0271, M003T95071, M003T95072, M003T95073, M003T95081, M003T95082, M004T55072, M004T55076, M004T55077, M34466, m3t95071, m3t95072, m3t95073, m3t95081, m3t95082, M4T55071, m4t55072, m4t55076, m4t55077, me057200, me057350, me057845, me057985, me057990, mg255301, 36100-83010

    • Normalised article numbler
      cst32600, drs0429, f032112342, f042000237, f042s00237, m000a0271, m003t95071, m003t95072, m003t95073, m003t95081, m003t95082, m004t55072, m004t55076, m004t55077, m34466, m3t95071, m3t95072, m3t95073, m3t95081, m3t95082, m4t55071, m4t55072, m4t55076, m4t55077, me057200, me057350, me057845, me057985, me057990, mg255301, s5047, s5182, str28009, str9107, 17317, 18243, 18243n, 22237mi, 22237mi1, 220618, 220618a, 254334, 452170, 600316, 600885, 626019134, 3610083010
