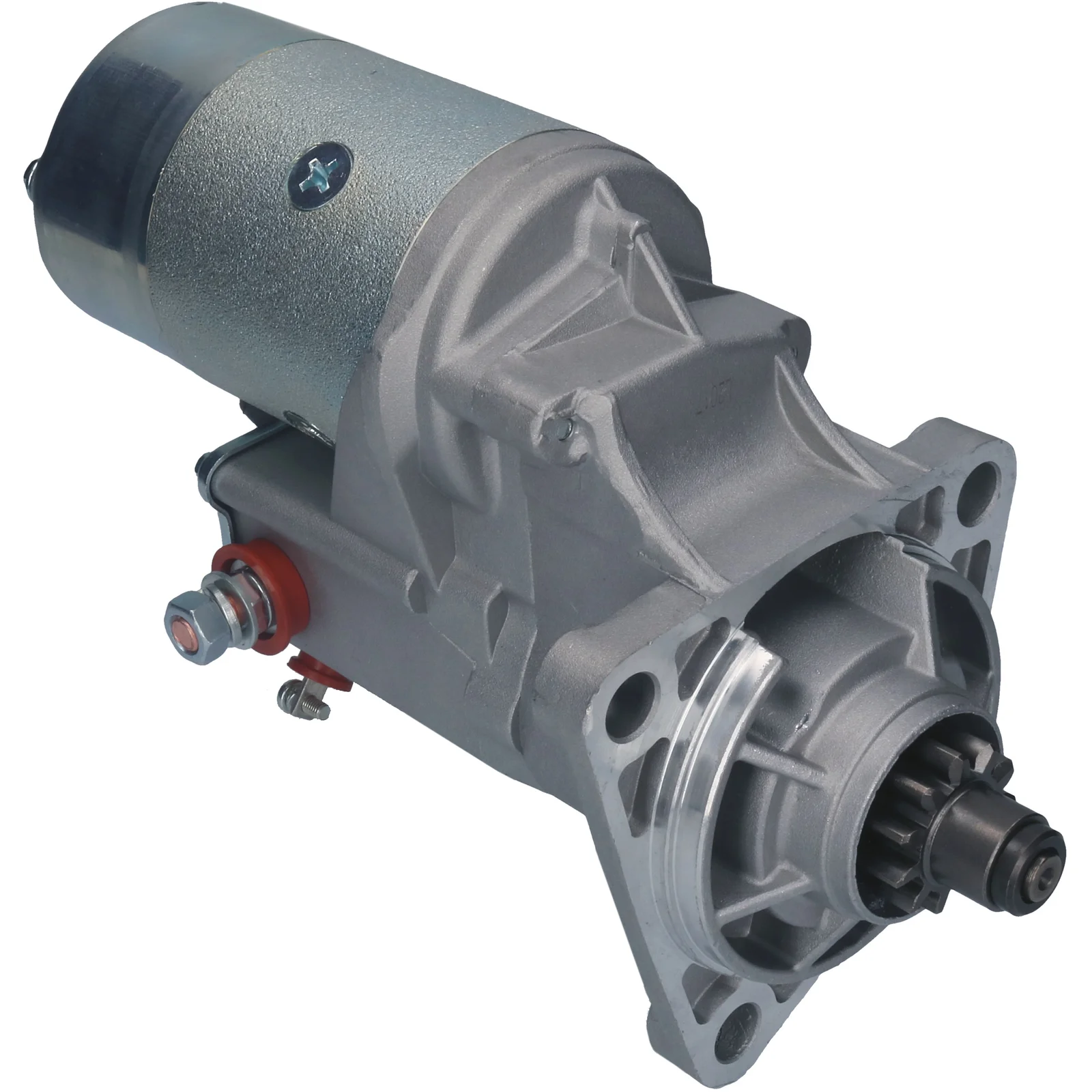

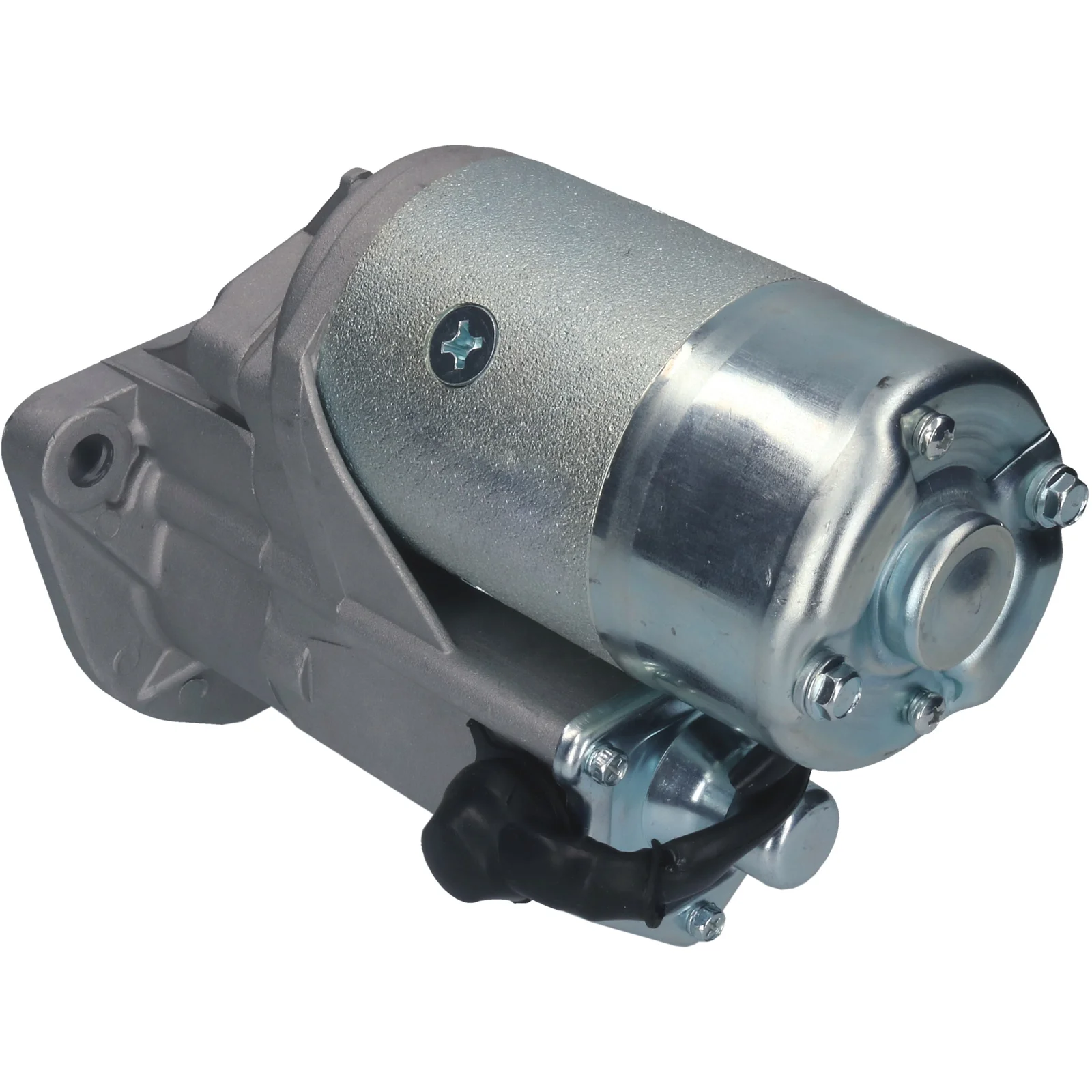

HC-Cargo Starter motor
HC-Cargo Starter motor
Article no.: F032112502

HC-Cargo Starter motor

Technical info:

Voltage: 24, kW: 4.5, No./teeth: 11, Rotation: CW

Description

Voltage: 24
kilowatts: 4.5
Mounting flange: 105.00
Drive distance: 42.50
Mounting hole 3 mm: 13.50
Mounting hole 2 mm: 13.50
Mounting hole 1 mm: 13.50
Distance/ rear: 169.00
Distance/ front: 62.00
Number/ teeth: 11
B+: M10
Position/50: 55
Terminal 50: M5
Gear type: GR
Distance 2: 110.50
Distance 3: 110.50
Distance mm: 134.50
Rotation: CW
Total length mm: 293.50
Clutch type: Wet
Drive type: Steel
Product info: BN
Waterproof: No
Oil sealed: No
Number/ mounting holes: 3 (0)
