Article no.: F032112507

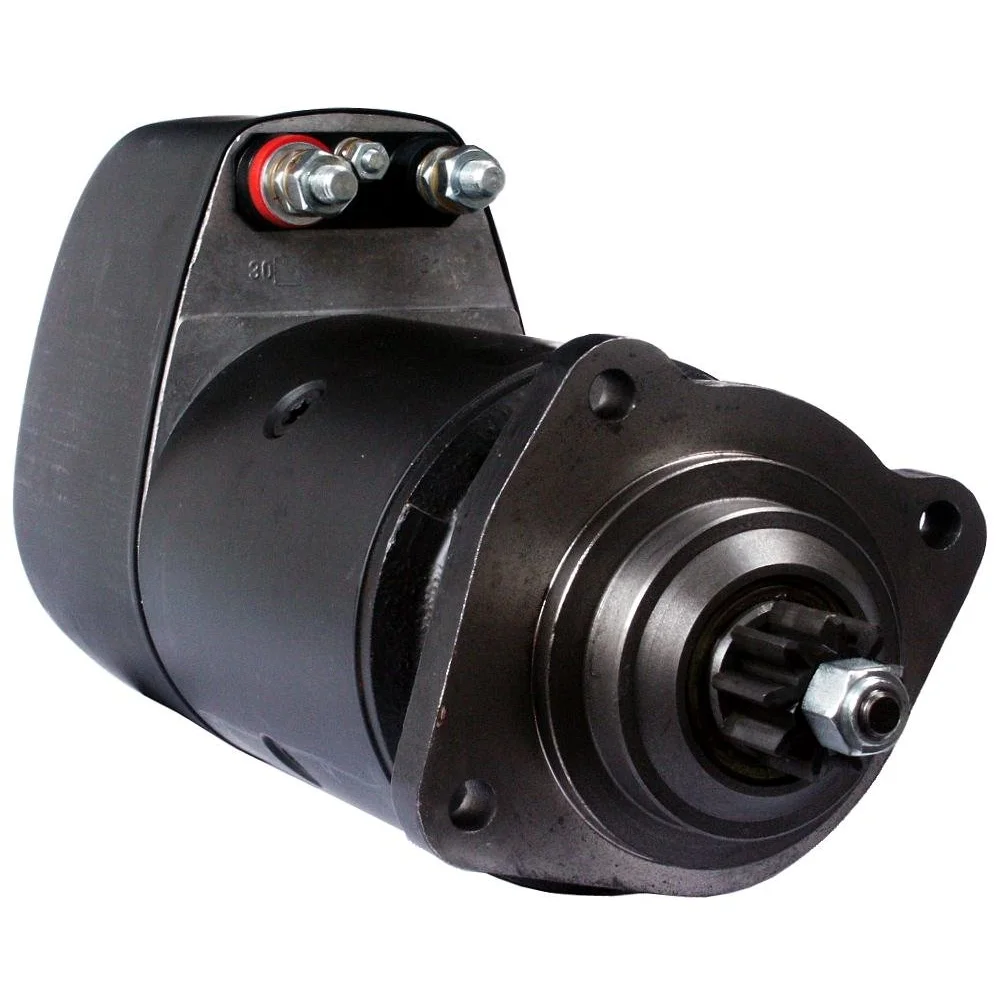

HC-Cargo Starter motor

Technical info:

Voltage: 24, kW: 5.4, No./teeth: 9, Rotation: CW

Description

Start 24V-5.4kW fits BM 24V - 5.4kW, 9k, oil sealed For Yourex product order 91-604-6026

Voltage: 24
kW: 5.4
Mount. flange: 89.00
Drive dist.: 47.50
Mount. hole 3 mm: 11.00
Mount. hole 2 mm: 11.00
Mount. hole 1 mm: 11.00
Dist./back: 322.00
Dist./front: 62.00
No./teeth: 9
B+: M10
Position/50: 60
Terminal 50: M6
Gear type: DD
Dist. 2: 127.00
Dist. 3: 90.00
Dist. mm: 90.00
Rotation: CW
B-: M10
Total length mm: 385.00
Clutch type: Dry
Drive type: Steel
Prod. info: BN
Waterproof: No
Oil sealed: No
Remarks: Bosch OE 0001414022/0001416026 is oil-sealed. HC-CARGO 112507 is not.
No./mount. holes: 3 (0)

Files

  • OEM
    AZK 5460, F032112507, 0001 414 022, 0001 416 026, 526, 9099, 11139 111, 112507, 860520, 0001414022, 0001416026, 4774617, 4881097, 19024026, 9004881097

  • Normalised article numbler
    azk5460, cst10623, drs0171, f032112507, is9099, lrs01918, ms499, ms713, s0436, 526, 9099, 106298, 112507, 220310, 220310a, 254322, 255242, 452360, 453089, 860520, 0001414022, 0001416026, 4774617, 4881097, 11090161, 11139111, 19024026, 638015094, 0986019643, 9004881097
  • Description
    Start 24V-5.4kW fits BM 24V - 5.4kW, 9k, oil sealed For Yourex product order 91-604-6026

    Voltage: 24
    kW: 5.4
    Mount. flange: 89.00
    Drive dist.: 47.50
    Mount. hole 3 mm: 11.00
    Mount. hole 2 mm: 11.00
    Mount. hole 1 mm: 11.00
    Dist./back: 322.00
    Dist./front: 62.00
    No./teeth: 9
    B+: M10
    Position/50: 60
    Terminal 50: M6
    Gear type: DD
    Dist. 2: 127.00
    Dist. 3: 90.00
    Dist. mm: 90.00
    Rotation: CW
    B-: M10
    Total length mm: 385.00
    Clutch type: Dry
    Drive type: Steel
    Prod. info: BN
    Waterproof: No
    Oil sealed: No
    Remarks: Bosch OE 0001414022/0001416026 is oil-sealed. HC-CARGO 112507 is not.
    No./mount. holes: 3 (0)

    Files

  • Suitable for these vehicles

    • OEM
      AZK 5460, F032112507, 0001 414 022, 0001 416 026, 526, 9099, 11139 111, 112507, 860520, 0001414022, 0001416026, 4774617, 4881097, 19024026, 9004881097

    • Normalised article numbler
      azk5460, cst10623, drs0171, f032112507, is9099, lrs01918, ms499, ms713, s0436, 526, 9099, 106298, 112507, 220310, 220310a, 254322, 255242, 452360, 453089, 860520, 0001414022, 0001416026, 4774617, 4881097, 11090161, 11139111, 19024026, 638015094, 0986019643, 9004881097
