HC-Cargo Starter motor
HC-Cargo Starter motor
Article no.: F032112670

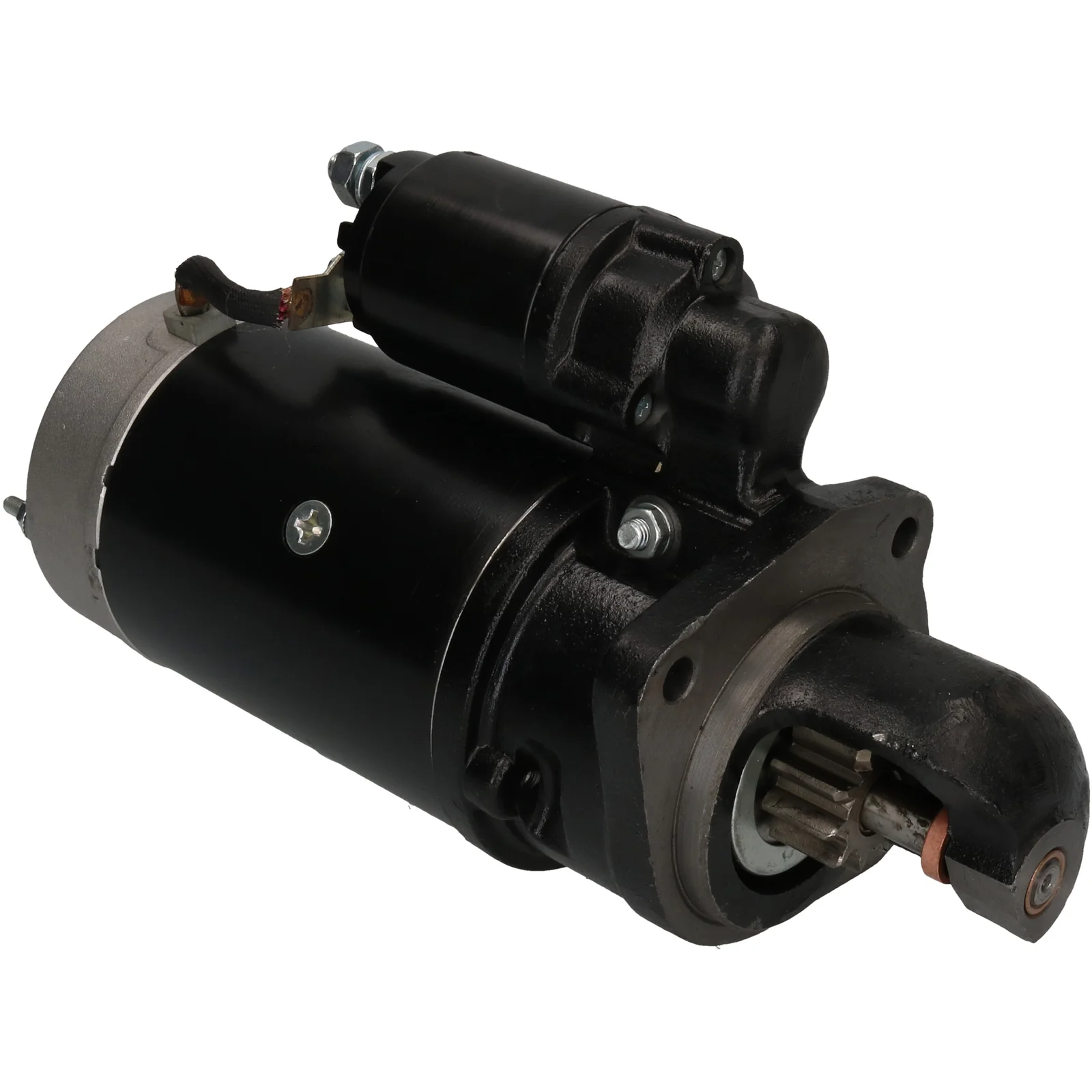

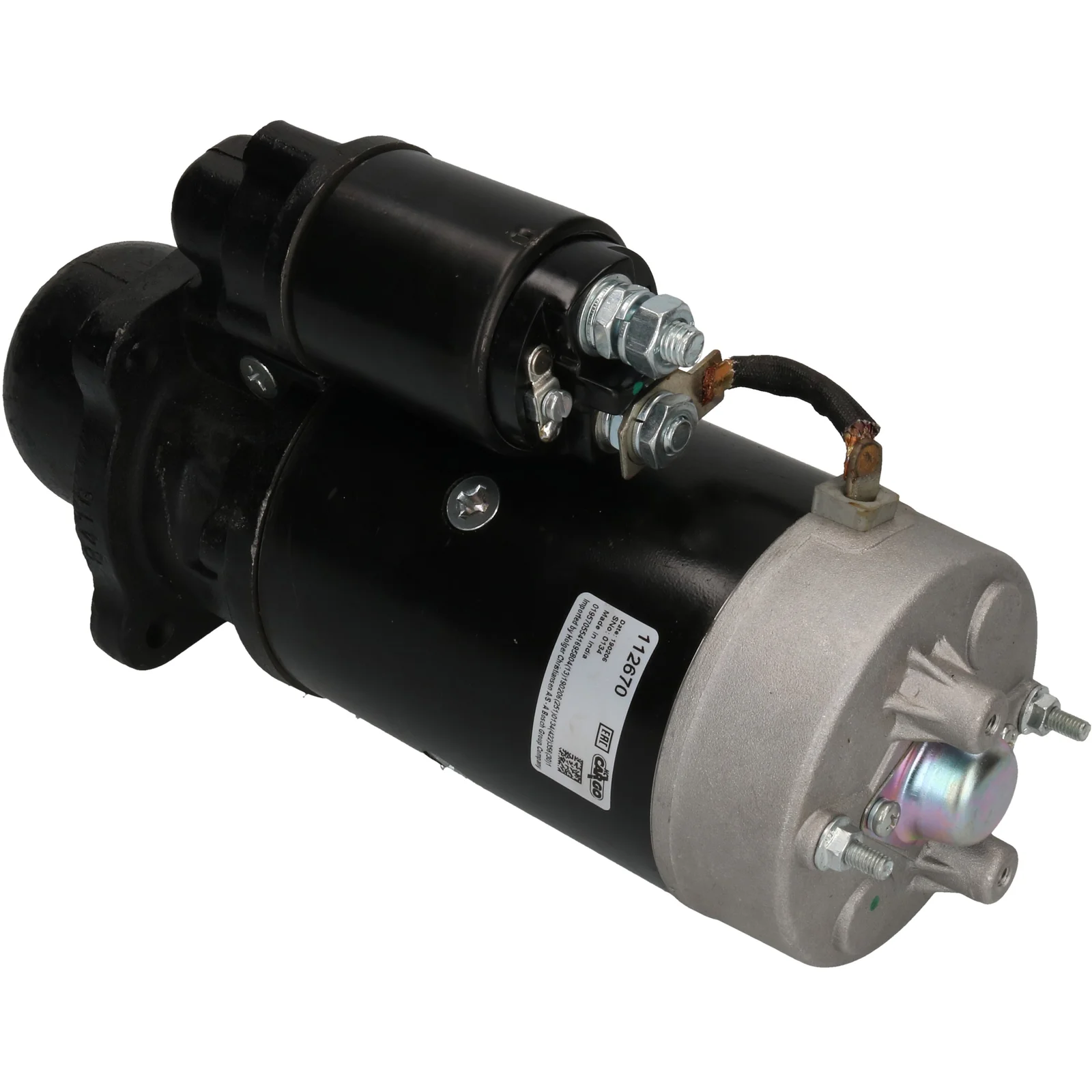

HC-Cargo Starter motor

Technical info:

Voltage: 24, kW: 4.0, No./teeth: 10, Rotation: CW

Description

Daf/Hanomag/Perkins Starter motor 24V 24V - 4.0kW, 10k. Not oil-filled. A - 89mm, B - 29mm 2008-01-15 In case this starter motor (4.0kW) is mounted instead of the CAV starter motor (7.8kW), it is at the CUSTOMER'S OWN RISK and THE WARRANTY DOES NOT APPLY!! For Yourex product order 91-441-1377

Voltage: 24
kW: 4.0
Mounting flange: 89.00
Drive distance: 28.50
Mounting hole 3 mm: 11.00
Mounting hole 2 mm: 11.00
Mounting hole 1 mm: 11.00
Distance / back: 252.00
Distance / front: 76.00
Number / teeth: 10
B+: M10
Position / 50: 45
Terminal 50: M4
Gear type: DD
Distance 2: 127.00
Distance 3: 90.00
Distance mm: 90.00
Rotation: CW
Total length mm: 341.00
Drive type: Steel
Product info: BN
Waterproof: No
Oil sealed: No
Number / mounting holes: 3 (0)

Files

  • OEM
    AZJ 3351, AZJ3351, F005510, F032112670, OR1903, PF54924, 0001 368 026, 0001 368 040, 0001 368 051, 11.130.993, 0986 013 770, 0986 013 771, 0993, 2873 K063, 2873K063, 3872D304, 27309, 27309a, 27309e, 27311, 27311a, 27311e, 27311h, 27315, 27315a, 27315b, 27315e, 0001368026, 0001368040, 0001368051, 0001368065, 2873306, 2873347R, 3091293M91, 3091293M92, 8091293M91, 20244940, 5000383929, 5000683929

  • Normalised article numbler
    azj3351, cst10668, drs3770, f005510, f032112670, is0993, lrs01845, ms369, or1903, pf54924, s0284, sbo0077, sr913x, str25018, ts6072, 0993, 2873k063, 3872d304, 8714, 17654, 18254, 18254n, 22299bo, 27309, 27309a, 27309e, 27311, 27311a, 27311e, 27311h, 27315, 27315a, 27315b, 27315e, 33795, 254191, 451185, 0001368026, 0001368040, 0001368051, 0001368065, 2873306, 2873347r, 3091293m91, 3091293m92, 8091293m91, 8813770, 11013770, 11130993, 20244940, 26067204, 91157078, 601003103, 646006104, 701506103, 943252252, 0986013770, 0986013771, 5000383929, 5000683929
  • Description
    Daf/Hanomag/Perkins Starter motor 24V 24V - 4.0kW, 10k. Not oil-filled. A - 89mm, B - 29mm 2008-01-15 In case this starter motor (4.0kW) is mounted instead of the CAV starter motor (7.8kW), it is at the CUSTOMER'S OWN RISK and THE WARRANTY DOES NOT APPLY!! For Yourex product order 91-441-1377

    Voltage: 24
    kW: 4.0
    Mounting flange: 89.00
    Drive distance: 28.50
    Mounting hole 3 mm: 11.00
    Mounting hole 2 mm: 11.00
    Mounting hole 1 mm: 11.00
    Distance / back: 252.00
    Distance / front: 76.00
    Number / teeth: 10
    B+: M10
    Position / 50: 45
    Terminal 50: M4
    Gear type: DD
    Distance 2: 127.00
    Distance 3: 90.00
    Distance mm: 90.00
    Rotation: CW
    Total length mm: 341.00
    Drive type: Steel
    Product info: BN
    Waterproof: No
    Oil sealed: No
    Number / mounting holes: 3 (0)

    Files

  • Suitable for these vehicles

    • OEM
      AZJ 3351, AZJ3351, F005510, F032112670, OR1903, PF54924, 0001 368 026, 0001 368 040, 0001 368 051, 11.130.993, 0986 013 770, 0986 013 771, 0993, 2873 K063, 2873K063, 3872D304, 27309, 27309a, 27309e, 27311, 27311a, 27311e, 27311h, 27315, 27315a, 27315b, 27315e, 0001368026, 0001368040, 0001368051, 0001368065, 2873306, 2873347R, 3091293M91, 3091293M92, 8091293M91, 20244940, 5000383929, 5000683929

    • Normalised article numbler
      azj3351, cst10668, drs3770, f005510, f032112670, is0993, lrs01845, ms369, or1903, pf54924, s0284, sbo0077, sr913x, str25018, ts6072, 0993, 2873k063, 3872d304, 8714, 17654, 18254, 18254n, 22299bo, 27309, 27309a, 27309e, 27311, 27311a, 27311e, 27311h, 27315, 27315a, 27315b, 27315e, 33795, 254191, 451185, 0001368026, 0001368040, 0001368051, 0001368065, 2873306, 2873347r, 3091293m91, 3091293m92, 8091293m91, 8813770, 11013770, 11130993, 20244940, 26067204, 91157078, 601003103, 646006104, 701506103, 943252252, 0986013770, 0986013771, 5000383929, 5000683929
