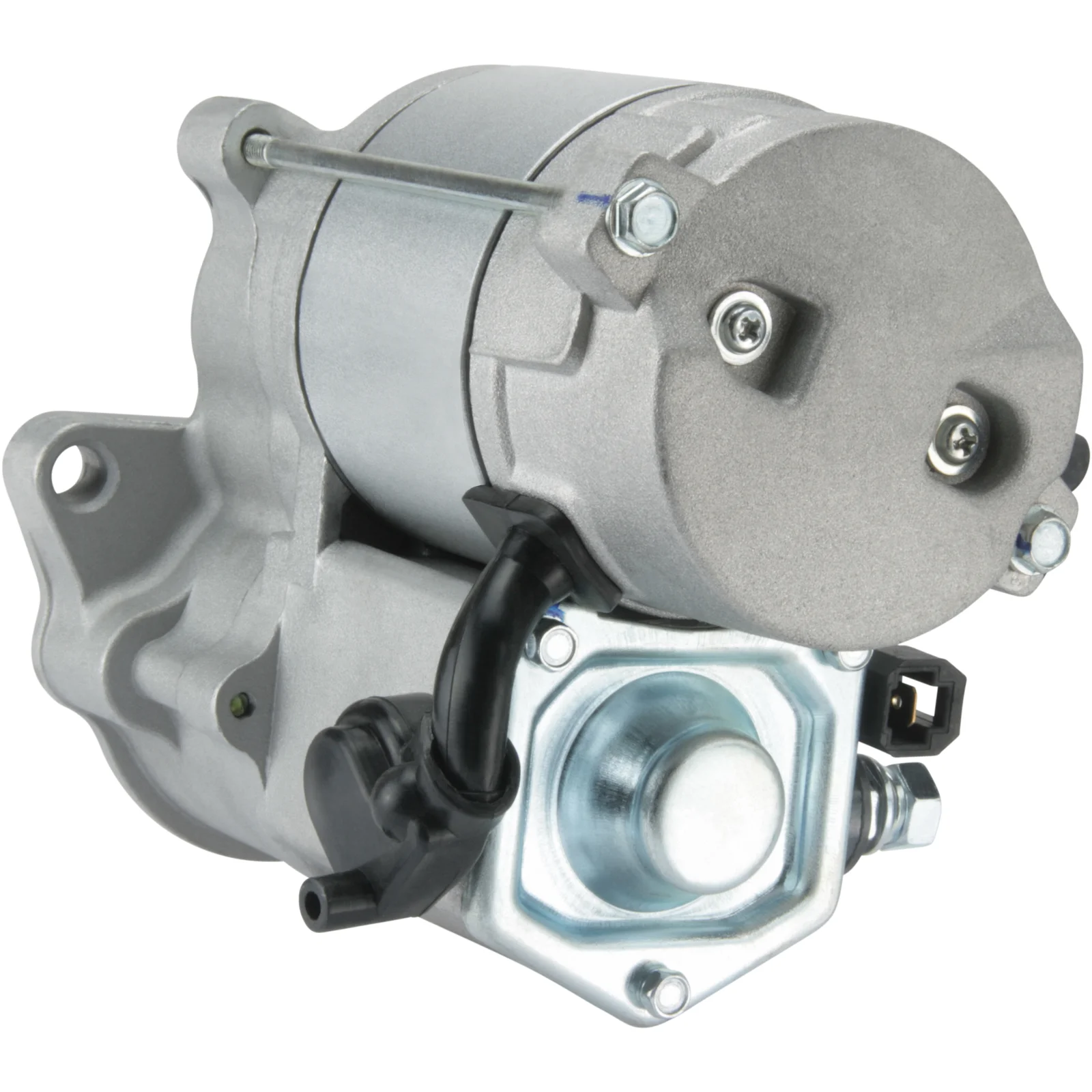

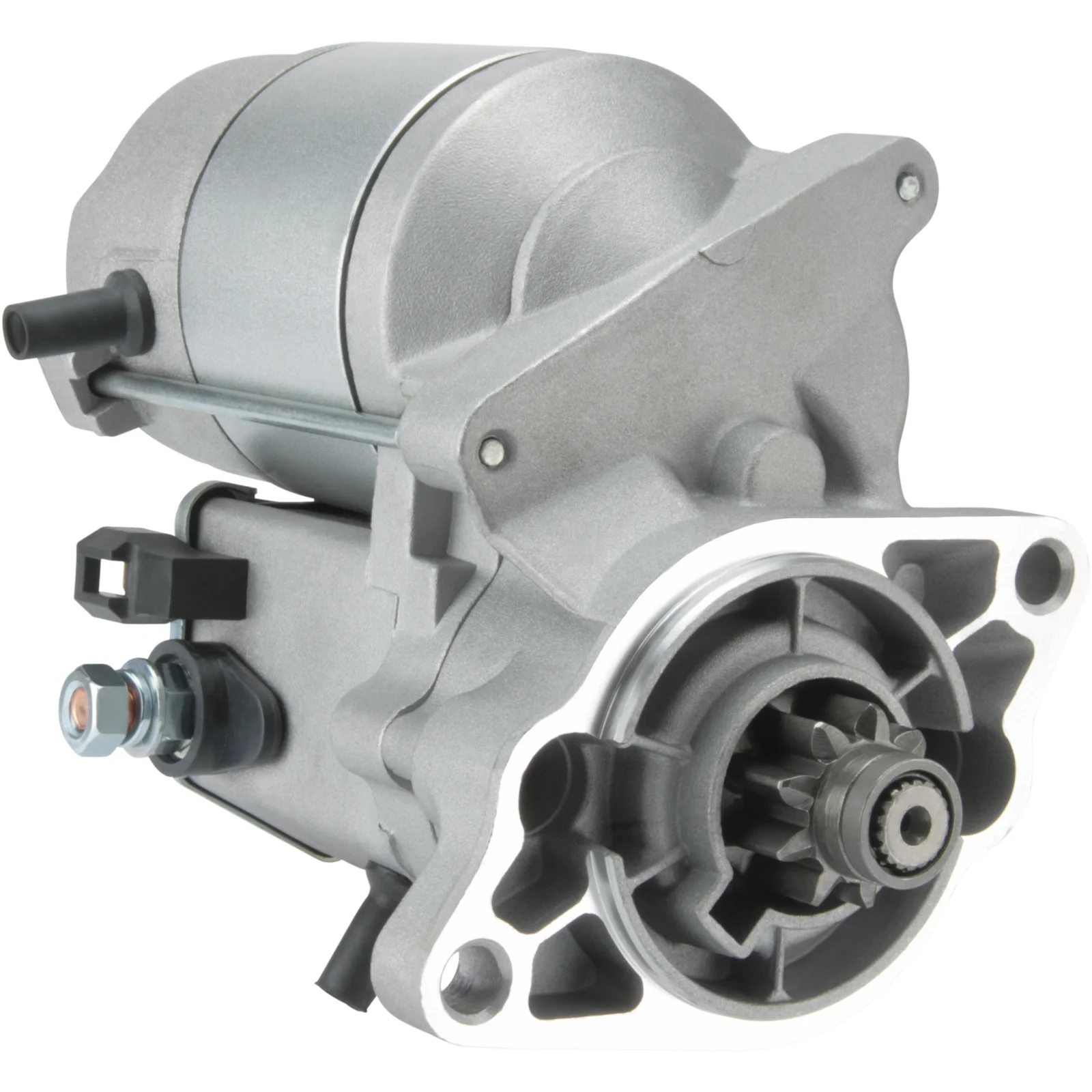

HC-Cargo Starter motor
HC-Cargo Starter motor
Article no.: F032113204

HC-Cargo Starter motor

Technical info:

Voltage: 24, kW: 1.4, No./teeth: 9, Rotation: CW

Description

Voltage: 24
kW: 1.4
Mounting flange: 66.00
Drive distance: 18.00
Mounting hole 2 mm: 8.50
Mounting hole 1 mm: 8.50
Distance / back: 128.00
Distance / front: 30.50
Number / teeth: 9
B+: M8
Position / 50: 10
Terminal 50: 6.30
Gear type: DD/GR
Distance mm: 110.00
Rotation: CW
Total length mm: 189.00
Drive type: Steel
Product info: BN
Waterproof: No
Oil sealed: No
Number / mounting holes: 2 (0)

Files

  • OEM
    F032113204, 19883-63011, 19883-63012, 128000-5410, 128000-5411, 228000-4780, 228000-4781

  • Normalised article numbler
    cst40629, f032113204, s6259s, str30026, 18143n, 254209, 683010092, 1280005410, 1280005411, 1988363011, 1988363012, 2280004780, 2280004781
  • Description
    Voltage: 24
    kW: 1.4
    Mounting flange: 66.00
    Drive distance: 18.00
    Mounting hole 2 mm: 8.50
    Mounting hole 1 mm: 8.50
    Distance / back: 128.00
    Distance / front: 30.50
    Number / teeth: 9
    B+: M8
    Position / 50: 10
    Terminal 50: 6.30
    Gear type: DD/GR
    Distance mm: 110.00
    Rotation: CW
    Total length mm: 189.00
    Drive type: Steel
    Product info: BN
    Waterproof: No
    Oil sealed: No
    Number / mounting holes: 2 (0)

    Files

  • Suitable for these vehicles

    • OEM
      F032113204, 19883-63011, 19883-63012, 128000-5410, 128000-5411, 228000-4780, 228000-4781

    • Normalised article numbler
      cst40629, f032113204, s6259s, str30026, 18143n, 254209, 683010092, 1280005410, 1280005411, 1988363011, 1988363012, 2280004780, 2280004781
