Article no.: F032113277

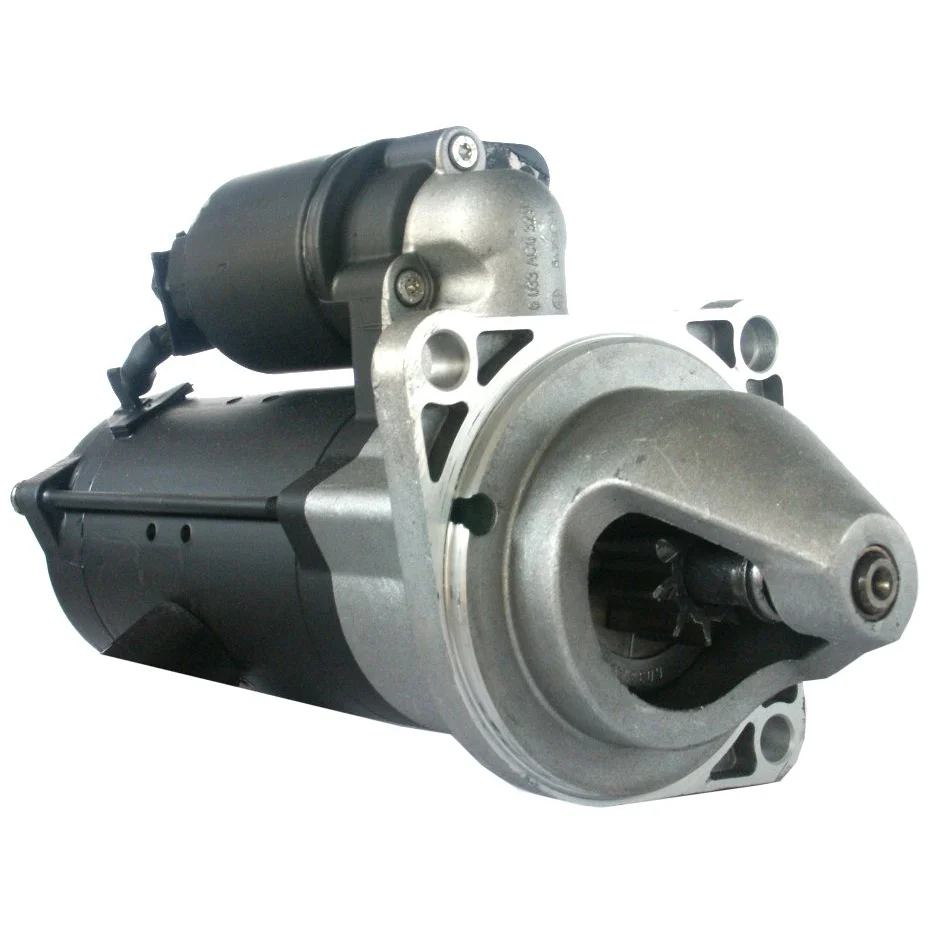

HC-Cargo Starter motor

Technical info:

Voltage: 24, kW: 4.0, No./teeth: 9, Rotation: CW

Description

Voltage: 24
kW: 4.0
Mounting flange: 110.00
Drive distance: 27.50
Mounting hole 3 mm: 12.00
Mounting hole 2 mm: 12.00
Mounting hole 1 mm: 12.00
Distance/back: 228.00
Distance/front: 77.00
Number/teeth: 9
B+: M10
Position/50: 45
Terminal 50: M4-6.30
Gear type: GR
Distance 2: 146.00
Distance 3: 103.00
Distance mm: 103.00
Rotation: CW
Total length mm: 315.00
Drive type: Steel
Prod. info: BN
Waterproof: No
Oil sealed: No
Number/mounting holes: 3 (0)

Files

  • OEM
    cs1248, F032113277, 1986S10093, 0001231011, 1516696R, 2995104, 2997760, 7141986, 19084022, 0000500325137, 500325137

  • Normalised article numbler
    cs1248, cst10662, drs3828, f032113277, f042002089, f042s02089, is1169, lrs01942, ms248, s0080, str22103, str2316, 1986s10093, 18959n, 23071bo, 101248, 104738, 203012, 203058, 220750, 220750a, 438472, 453097, 460257, 0001231011, 1516696r, 2995104, 2997760, 7141986, 11019010, 19084022, 0000500325137, 500325137, 618029094, 0986011330, 0986019010, 0986019013, 063522310110
  • Description
    Voltage: 24
    kW: 4.0
    Mounting flange: 110.00
    Drive distance: 27.50
    Mounting hole 3 mm: 12.00
    Mounting hole 2 mm: 12.00
    Mounting hole 1 mm: 12.00
    Distance/back: 228.00
    Distance/front: 77.00
    Number/teeth: 9
    B+: M10
    Position/50: 45
    Terminal 50: M4-6.30
    Gear type: GR
    Distance 2: 146.00
    Distance 3: 103.00
    Distance mm: 103.00
    Rotation: CW
    Total length mm: 315.00
    Drive type: Steel
    Prod. info: BN
    Waterproof: No
    Oil sealed: No
    Number/mounting holes: 3 (0)

    Files

  • Suitable for these vehicles

    • OEM
      cs1248, F032113277, 1986S10093, 0001231011, 1516696R, 2995104, 2997760, 7141986, 19084022, 0000500325137, 500325137

    • Normalised article numbler
      cs1248, cst10662, drs3828, f032113277, f042002089, f042s02089, is1169, lrs01942, ms248, s0080, str22103, str2316, 1986s10093, 18959n, 23071bo, 101248, 104738, 203012, 203058, 220750, 220750a, 438472, 453097, 460257, 0001231011, 1516696r, 2995104, 2997760, 7141986, 11019010, 19084022, 0000500325137, 500325137, 618029094, 0986011330, 0986019010, 0986019013, 063522310110
