HC-Cargo Starter motor
HC-Cargo Starter motor
Article no.: F032113353

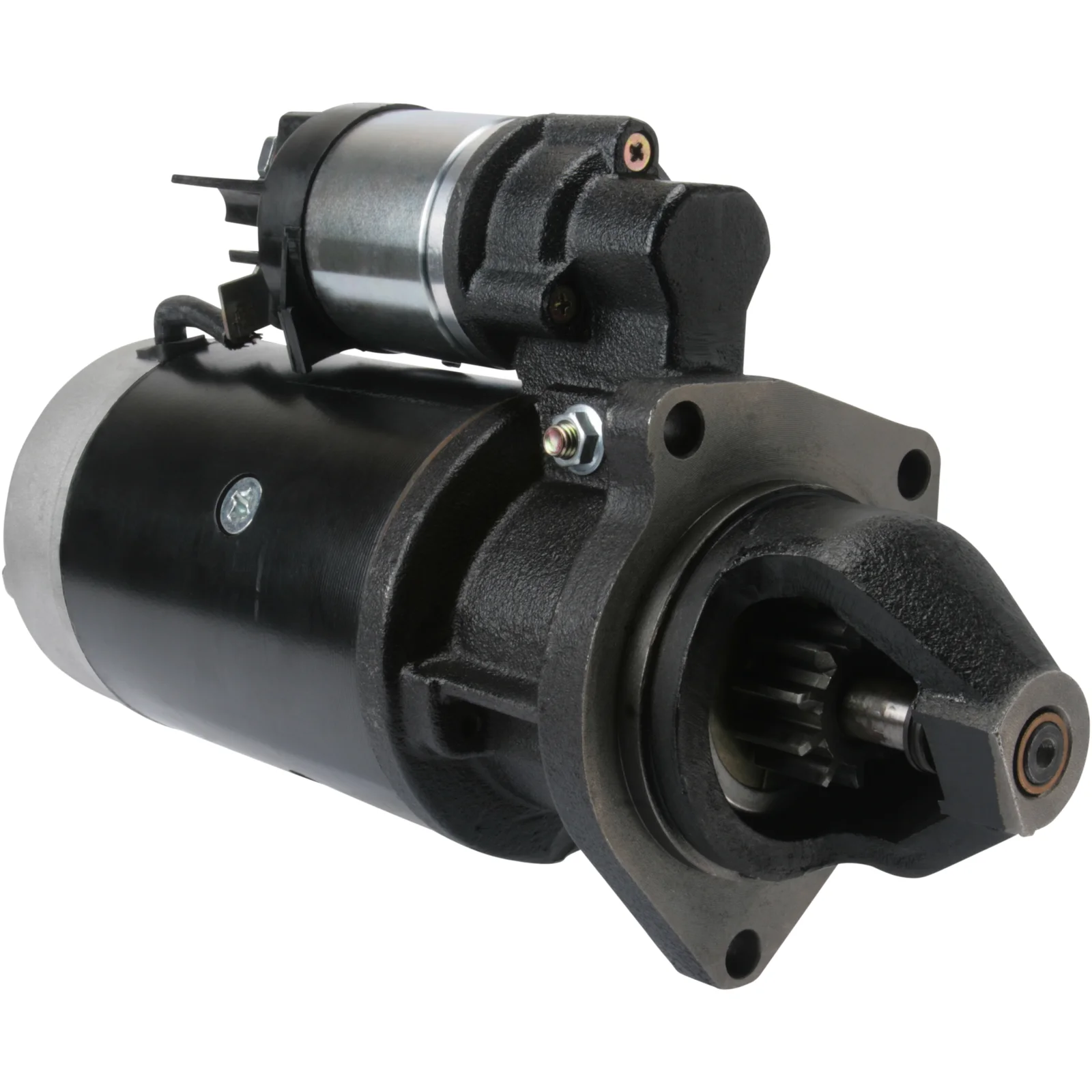

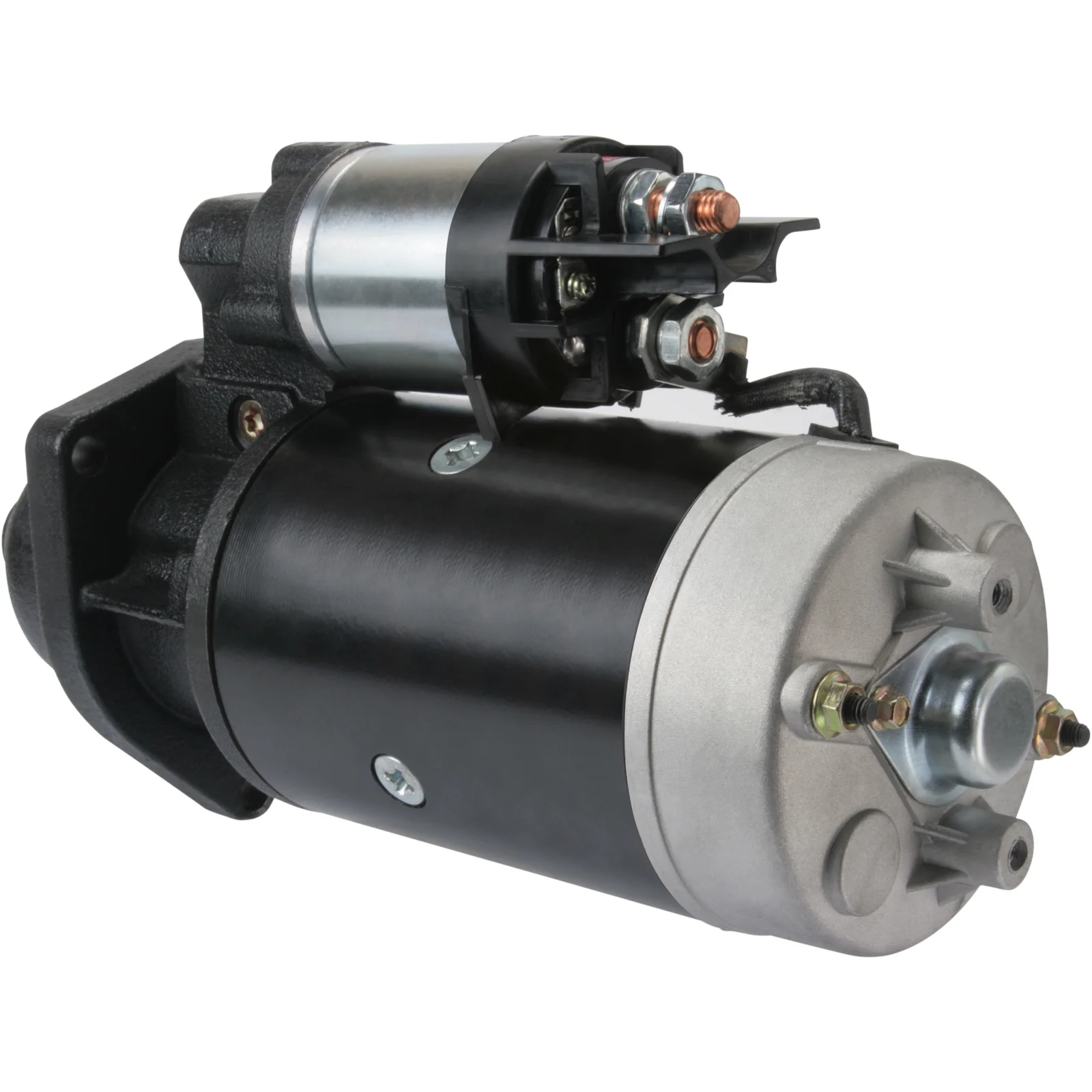

HC-Cargo Starter motor

Technical info:

Voltage: 24, kW: 4.0, No./teeth: 10, Rotation: CW

Description

Voltage: 24
kW: 4.0
Mount. flange: 89.00
Drive dist.: 27.50
Mount. hole 3 mm: 11.00
Mount. hole 2 mm: 11.00
Mount. hole 1 mm: 11.00
Dist./back: 265.00
Dist./front: 75.00
No./teeth: 10
B+: M10
Position/50: 45
Terminal 50: M4
Gear type: DD
Dist. 2: 124.00
Dist. 3: 78.00
Dist. mm: 117.00
Rotation: CW
Total length mm: 340.00
Drive type: Steel
Prod. info: BN/OE
Waterproof: No
Oil sealed: No
No./mount. holes: 3 (0)

Files

  • OEM
    cs1280, F032113353, 51.26201-7146, 0001368311

  • Normalised article numbler
    cs1280, f032113353, lrs02653, 101280, 104373, 454325, 0001368311, 11090052, 600240104, 51262017146
  • Description
    Voltage: 24
    kW: 4.0
    Mount. flange: 89.00
    Drive dist.: 27.50
    Mount. hole 3 mm: 11.00
    Mount. hole 2 mm: 11.00
    Mount. hole 1 mm: 11.00
    Dist./back: 265.00
    Dist./front: 75.00
    No./teeth: 10
    B+: M10
    Position/50: 45
    Terminal 50: M4
    Gear type: DD
    Dist. 2: 124.00
    Dist. 3: 78.00
    Dist. mm: 117.00
    Rotation: CW
    Total length mm: 340.00
    Drive type: Steel
    Prod. info: BN/OE
    Waterproof: No
    Oil sealed: No
    No./mount. holes: 3 (0)

    Files

  • Suitable for these vehicles

    • OEM
      cs1280, F032113353, 51.26201-7146, 0001368311

    • Normalised article numbler
      cs1280, f032113353, lrs02653, 101280, 104373, 454325, 0001368311, 11090052, 600240104, 51262017146
