HC-Cargo Starter motor
HC-Cargo Starter motor
Article no.: F032113356

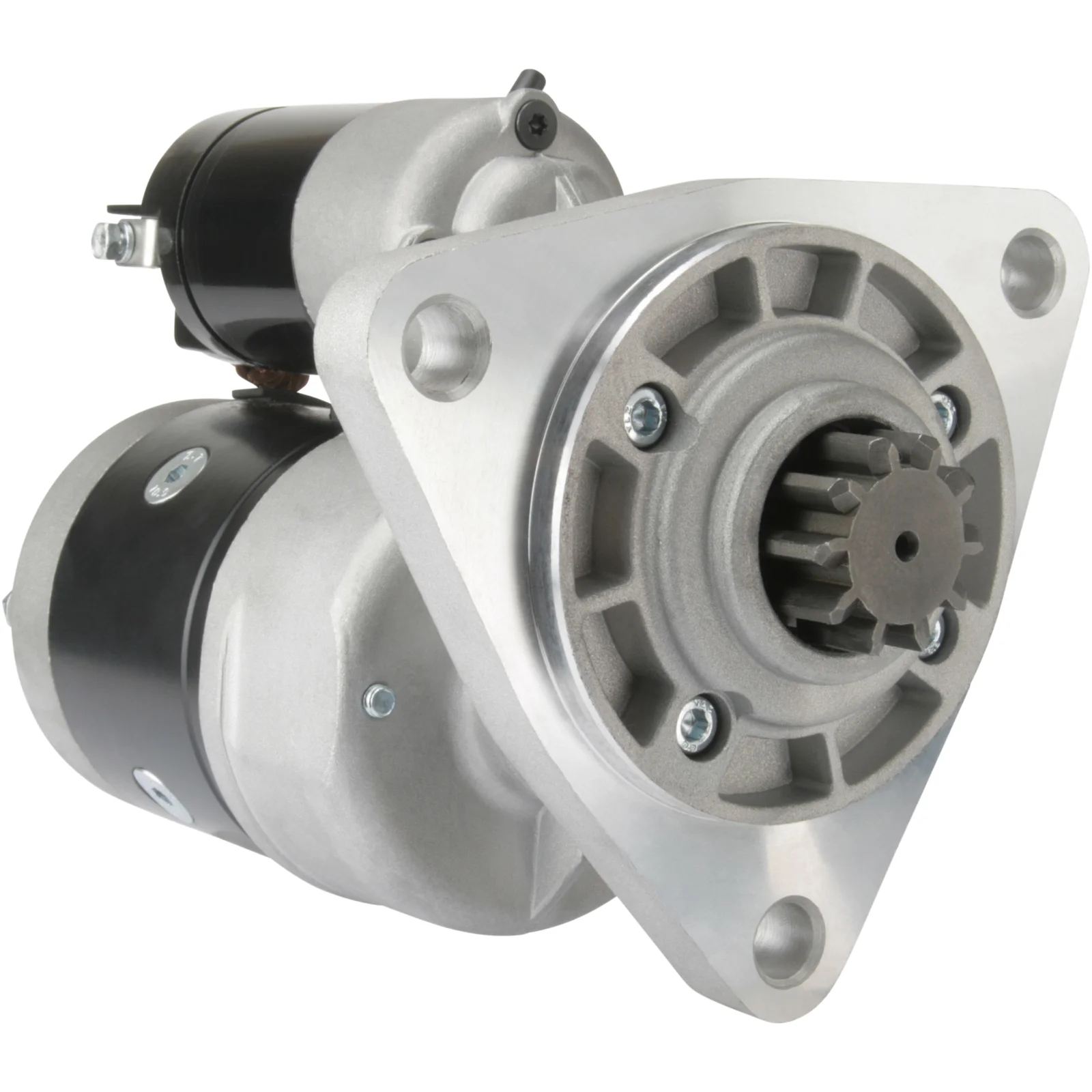

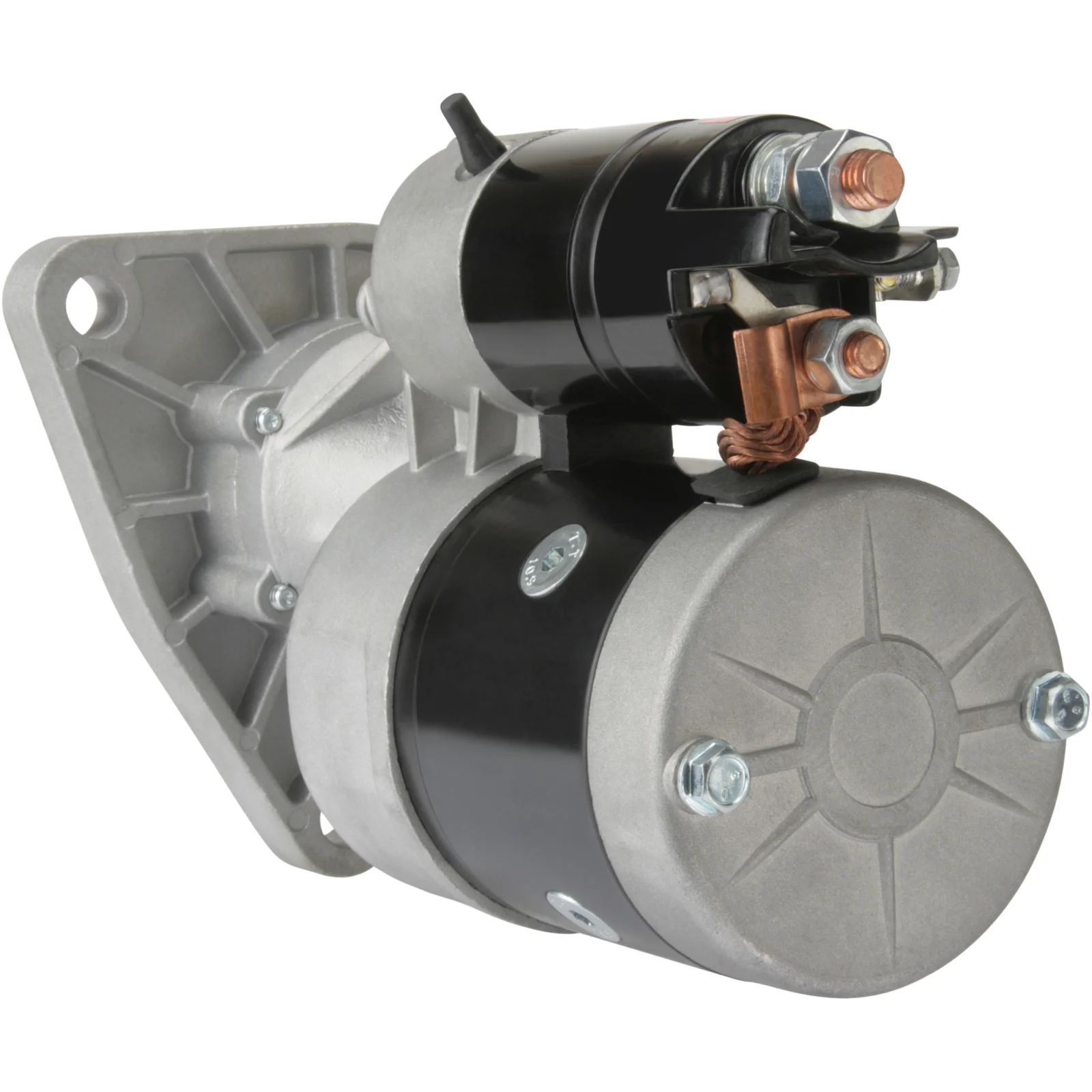

HC-Cargo Starter motor

Technical info:

Voltage: 24, kW: 3.5, No./teeth: 10, Rotation: CW

Description

Voltage: 24
kW: 3.5
Mount. flange: 100.00
Drive distance: 32.00
Mount. hole 3 mm: 13.00
Mount. hole 2 mm: 13.00
Mount. hole 1 mm: 13.00
Distance / back: 200.50
Distance / front: 32.00
Number / teeth: 10
B+: M10
Position / 50: 15
Terminal 50: M5
Gear type: GR
Distance 2: 126.00
Distance 3: 126.00
Distance mm: 126.00
Rotation: CW
Total length mm: 235.00
Drive type: Steel
Prod. info: BN
Waterproof: No
Oil sealed: No
Number / mount. holes: 3 (0)

Files

  • OEM
    AZF4910, AZJ3223, AZJ3381, F032113356, 11.130.676, 11.131.104, 11.139.199, 9172702, 9172780, 20073708000

  • Normalised article numbler
    azf4910, azj3223, azj3381, f032113356, is1035, is9497, lrs01945, ms1002, ms360, ms411, s9041, s9041magneton, s9093, s9093letrika, 18547n, 453110, 9172702, 9172780, 11130676, 11131104, 11139199, 231509103, 612006104, 20073708000
  • Description
    Voltage: 24
    kW: 3.5
    Mount. flange: 100.00
    Drive distance: 32.00
    Mount. hole 3 mm: 13.00
    Mount. hole 2 mm: 13.00
    Mount. hole 1 mm: 13.00
    Distance / back: 200.50
    Distance / front: 32.00
    Number / teeth: 10
    B+: M10
    Position / 50: 15
    Terminal 50: M5
    Gear type: GR
    Distance 2: 126.00
    Distance 3: 126.00
    Distance mm: 126.00
    Rotation: CW
    Total length mm: 235.00
    Drive type: Steel
    Prod. info: BN
    Waterproof: No
    Oil sealed: No
    Number / mount. holes: 3 (0)

    Files

  • Suitable for these vehicles

    • OEM
      AZF4910, AZJ3223, AZJ3381, F032113356, 11.130.676, 11.131.104, 11.139.199, 9172702, 9172780, 20073708000

    • Normalised article numbler
      azf4910, azj3223, azj3381, f032113356, is1035, is9497, lrs01945, ms1002, ms360, ms411, s9041, s9041magneton, s9093, s9093letrika, 18547n, 453110, 9172702, 9172780, 11130676, 11131104, 11139199, 231509103, 612006104, 20073708000
