Article no.: F032113456

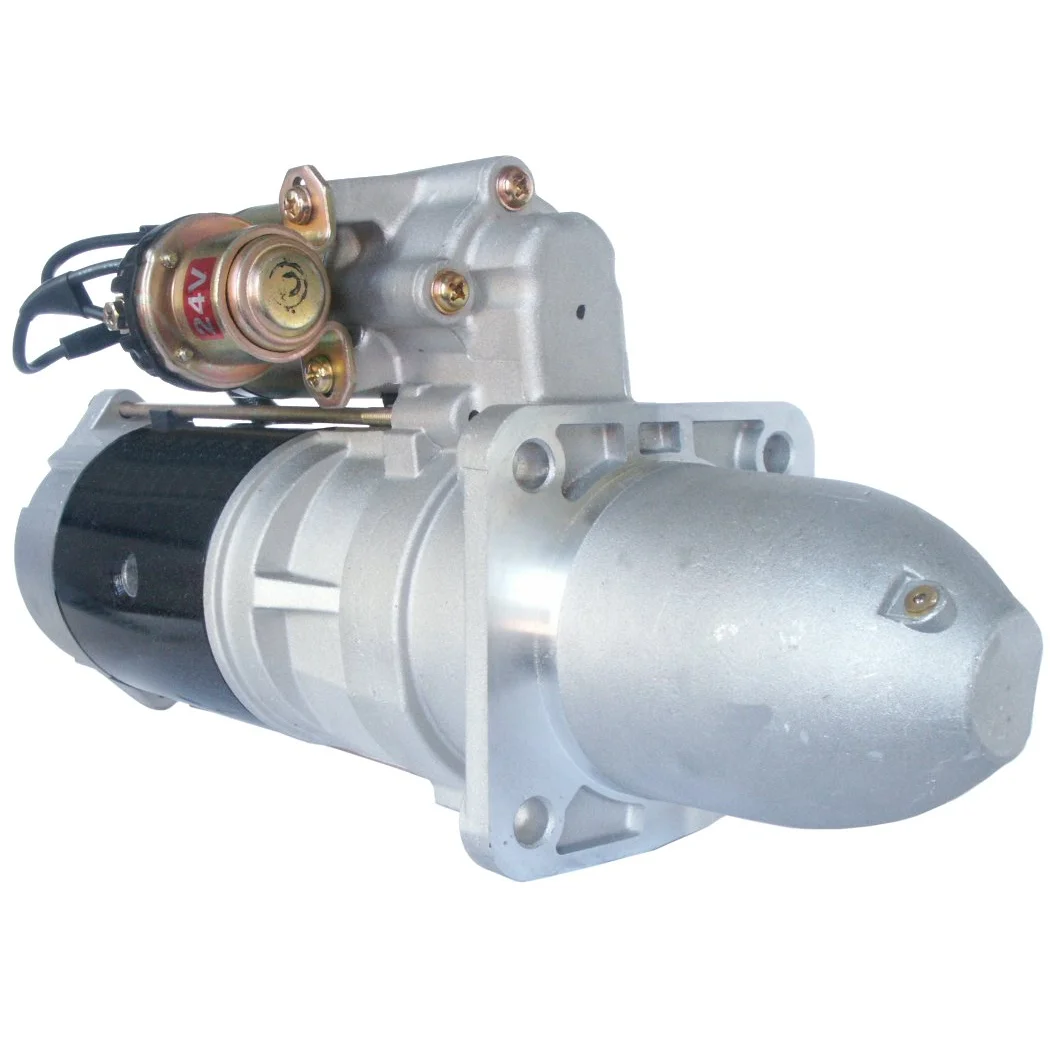

HC-Cargo Starter motor

Technical info:

Voltage: 24, kW: 6.0, No./teeth: 11, Rotation: CW

Description

Voltage: 24
kW: 6.0
Mounting flange: 89.00
Drive distance: 49.00
Mounting hole 3 mm: 11.30
Mounting hole 2 mm: 11.00
Mounting hole 1 mm: 11.00
Distance/back: 278.00
Distance/front: 107.50
Number of teeth: 11
B+: M10
Position/50: 60
Terminal 50: M5
Gear type: GR
Distance 2: 89.50
Distance 3: 89.50
Distance mm: 126.50
Rotation: CW
Total length mm: 386.00
Drive type: Steel
Product info: BN
Waterproof: No
Oil sealed: No
Remarks: w/ safety switch.
Number of mounting holes: 3 (0)

Files

  • OEM
    F032113456, M000A0301, tm000a0301, 65.26201-7049

  • Normalised article numbler
    cst32602, drs0354, f032113456, m000a0301, s9183, s9211, str85200, tm000a0301, 254763, 600290, 65262017049
  • Description
    Voltage: 24
    kW: 6.0
    Mounting flange: 89.00
    Drive distance: 49.00
    Mounting hole 3 mm: 11.30
    Mounting hole 2 mm: 11.00
    Mounting hole 1 mm: 11.00
    Distance/back: 278.00
    Distance/front: 107.50
    Number of teeth: 11
    B+: M10
    Position/50: 60
    Terminal 50: M5
    Gear type: GR
    Distance 2: 89.50
    Distance 3: 89.50
    Distance mm: 126.50
    Rotation: CW
    Total length mm: 386.00
    Drive type: Steel
    Product info: BN
    Waterproof: No
    Oil sealed: No
    Remarks: w/ safety switch.
    Number of mounting holes: 3 (0)

    Files

  • Suitable for these vehicles

    • OEM
      F032113456, M000A0301, tm000a0301, 65.26201-7049

    • Normalised article numbler
      cst32602, drs0354, f032113456, m000a0301, s9183, s9211, str85200, tm000a0301, 254763, 600290, 65262017049
