HC-Cargo Starter motor
HC-Cargo Starter motor
Article no.: F032113484

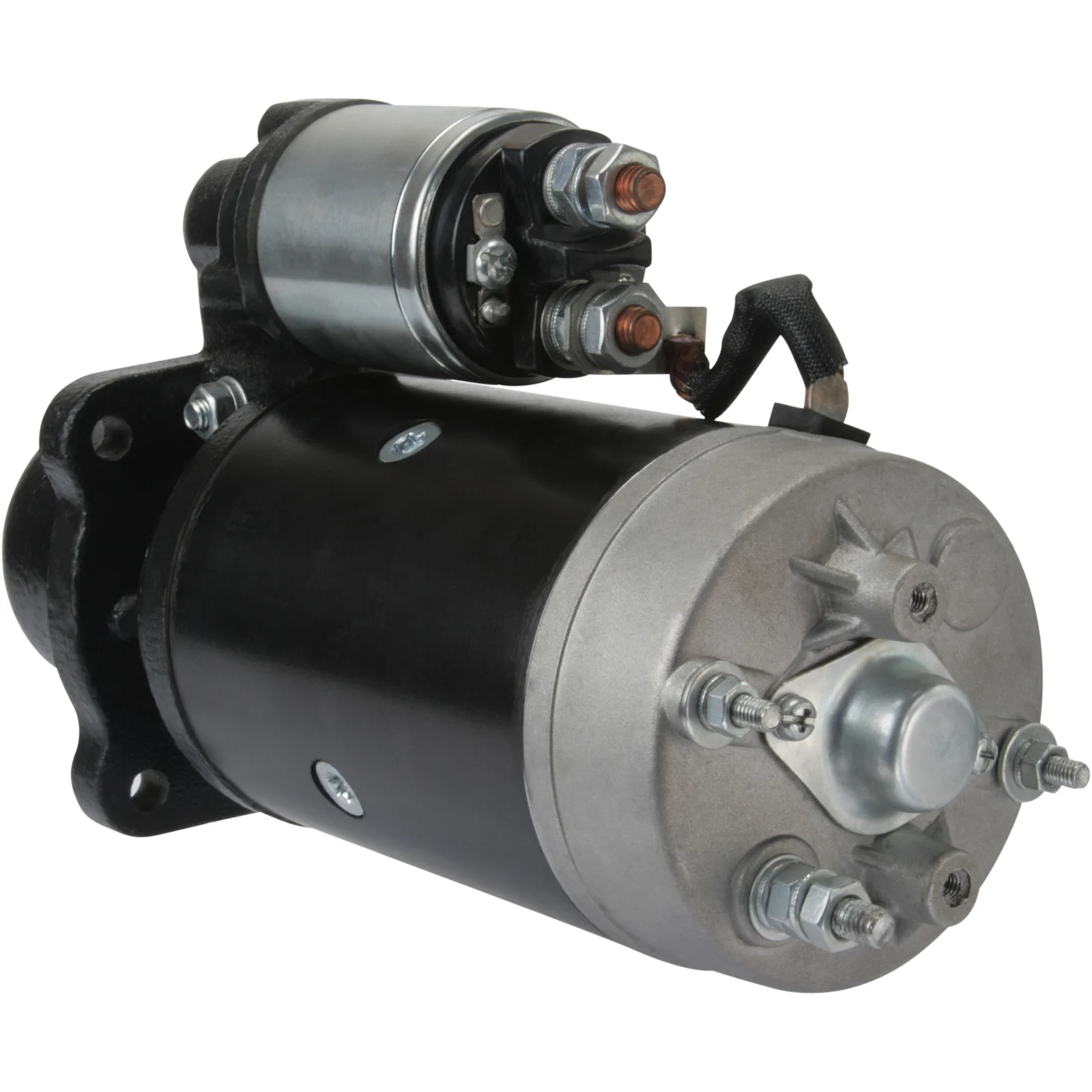

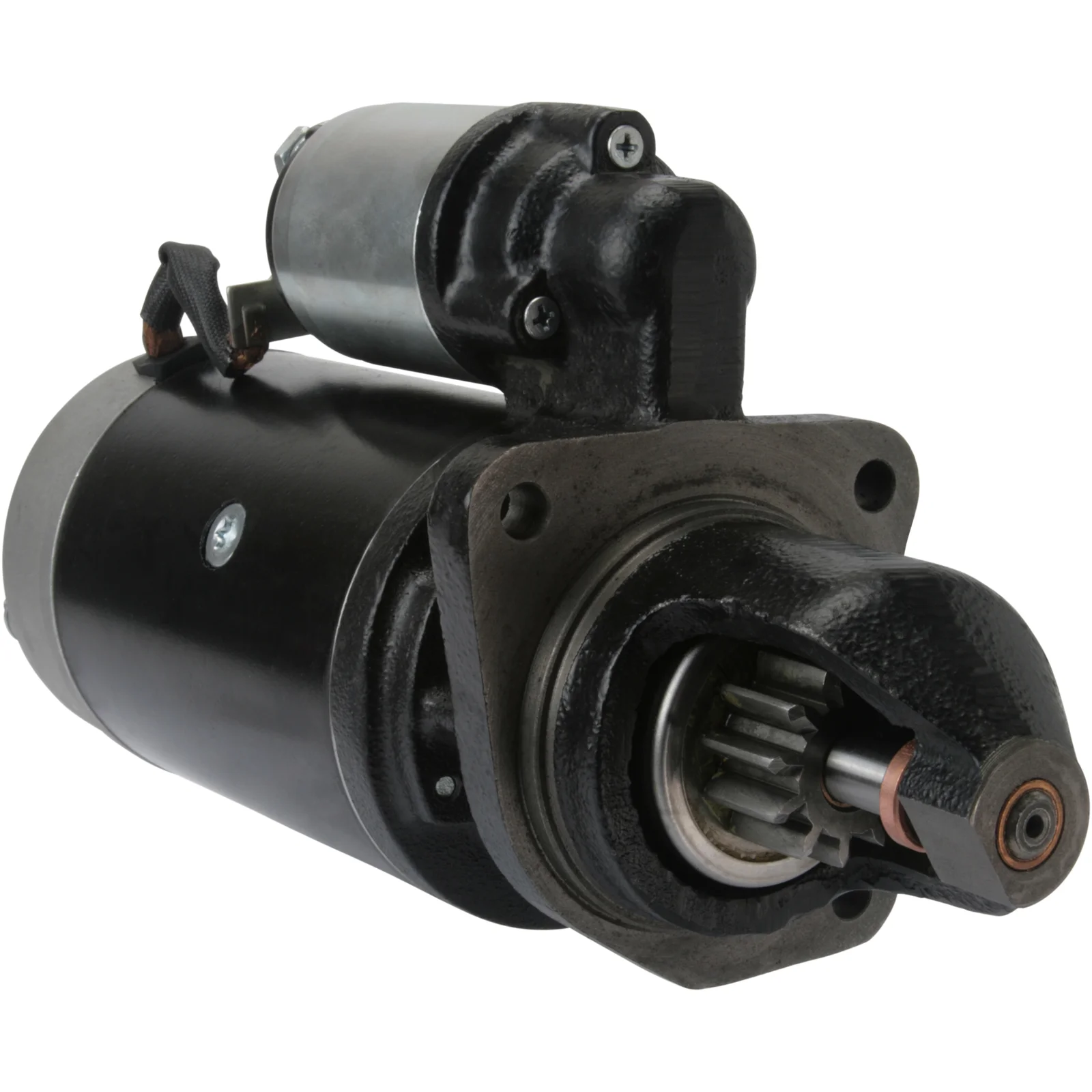

HC-Cargo Starter motor

Technical info:

Voltage: 24, kW: 4.0, No./teeth: 11, Rotation: CW

Description

Valmet Starter motor 24V-4.0kW, 11k 24V - 4.0kW, 11k, oil sealed A - 89mm, B - 48mm. Alternative for G/R gear type model see 91-571-3047 for Bosch type & 91-571-3048 for Iskra type. For Yourex product order 91-575-1371

Voltage: 24
kW: 4.0
Mounting flange: 89.00
Drive distance: 47.50
Mounting hole 3 mm: 11.00
Mounting hole 2 mm: 11.00
Mounting hole 1 mm: 11.00
Distance / back: 245.00
Distance / front: 95.00
Number / teeth: 11
B+: M10
Position / 50: 45
Terminal 50: M6
Gear type: DD
Distance 2: 127.00
Distance 3: 90.00
Distance mm: 90.00
Rotation: CW
Total length mm: 340.00
Clutch type: Dry
Drive type: Steel
Product info: BN
Waterproof: No
Oil sealed: No
Number / mounting holes: 3 (0)

Files

  • OEM
    AZF4588, azj3186, F032113484, V835330965, 0001 368 037, 0001 368 039, 0001 368 041, 11.130.595, 11.131.335, 0686, 0986 013 700, 0986 013 710, 27305, 0001368037, 0001368039, 31358041, 835330965

  • Normalised article numbler
    azf4588, azj3186, cst10665, f032113484, is0595, lrs01818, lrs01952, ms611, s0520, s9301s, str22071, str56010, v835330965, 0686, 8711, 27305, 255105, 450316, 453193, 0001368037, 0001368039, 0001368041, 8813700, 11013700, 11130595, 11131335, 31358041, 638022114, 638026114, 801502113, 835330965, 943252248, 0986013700, 0986013710
  • Description
    Valmet Starter motor 24V-4.0kW, 11k 24V - 4.0kW, 11k, oil sealed A - 89mm, B - 48mm. Alternative for G/R gear type model see 91-571-3047 for Bosch type & 91-571-3048 for Iskra type. For Yourex product order 91-575-1371

    Voltage: 24
    kW: 4.0
    Mounting flange: 89.00
    Drive distance: 47.50
    Mounting hole 3 mm: 11.00
    Mounting hole 2 mm: 11.00
    Mounting hole 1 mm: 11.00
    Distance / back: 245.00
    Distance / front: 95.00
    Number / teeth: 11
    B+: M10
    Position / 50: 45
    Terminal 50: M6
    Gear type: DD
    Distance 2: 127.00
    Distance 3: 90.00
    Distance mm: 90.00
    Rotation: CW
    Total length mm: 340.00
    Clutch type: Dry
    Drive type: Steel
    Product info: BN
    Waterproof: No
    Oil sealed: No
    Number / mounting holes: 3 (0)

    Files

  • Suitable for these vehicles

    • OEM
      AZF4588, azj3186, F032113484, V835330965, 0001 368 037, 0001 368 039, 0001 368 041, 11.130.595, 11.131.335, 0686, 0986 013 700, 0986 013 710, 27305, 0001368037, 0001368039, 31358041, 835330965

    • Normalised article numbler
      azf4588, azj3186, cst10665, f032113484, is0595, lrs01818, lrs01952, ms611, s0520, s9301s, str22071, str56010, v835330965, 0686, 8711, 27305, 255105, 450316, 453193, 0001368037, 0001368039, 0001368041, 8813700, 11013700, 11130595, 11131335, 31358041, 638022114, 638026114, 801502113, 835330965, 943252248, 0986013700, 0986013710
