Article no.: F032113669

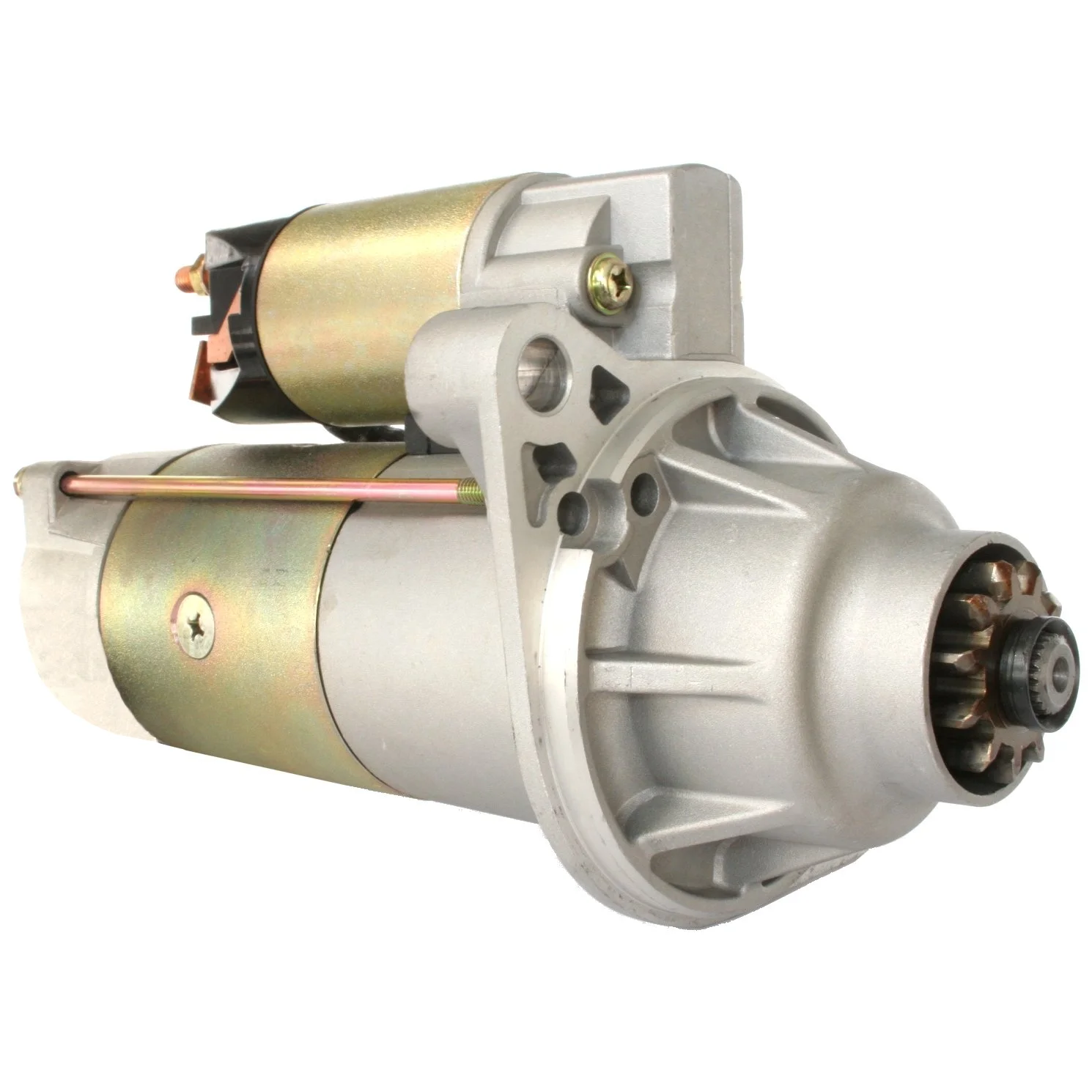

HC-Cargo Starter motor

Technical info:

Voltage: 24, kW: 5.0, No./teeth: 11, Rotation: CW

Description

Voltage: 24
kW: 5.0
Mounting flange: 110.00
Drive distance: 66.00
Mounting hole 2 mm: 13.50
Mounting hole 1 mm: 13.50
Distance/back: 214.00
Distance/front: 71.50
Number of teeth: 11
B+: M8
Position/B+: 60
Position/50: 45
Terminal 50: M5
Gear type: GR
Distance mm: 151.50
Rotation: CW
Total length mm: 288.00
Clutch type: Wet
Drive type: Steel
Product info: BN
Waterproof: No
Oil sealed: No
Number of mounting holes: 2 (0)

Files

  • OEM
    F032113669, M008T60071, M008T60071A, m3t56076, m8t60071, m8t60071a, me077796, 1347023

  • Normalised article numbler
    cst35603, drs0337, f032113669, f042001187, f042s01187, lrs02364, m008t60071, m008t60071a, m3t56076, m8t60071, m8t60071a, me077796, s5107, s80099, smt0198, str7107, 18542, 18542n, 254278, 454036, 1347023, 11040774
  • Description
    Voltage: 24
    kW: 5.0
    Mounting flange: 110.00
    Drive distance: 66.00
    Mounting hole 2 mm: 13.50
    Mounting hole 1 mm: 13.50
    Distance/back: 214.00
    Distance/front: 71.50
    Number of teeth: 11
    B+: M8
    Position/B+: 60
    Position/50: 45
    Terminal 50: M5
    Gear type: GR
    Distance mm: 151.50
    Rotation: CW
    Total length mm: 288.00
    Clutch type: Wet
    Drive type: Steel
    Product info: BN
    Waterproof: No
    Oil sealed: No
    Number of mounting holes: 2 (0)

    Files

  • Suitable for these vehicles

    • OEM
      F032113669, M008T60071, M008T60071A, m3t56076, m8t60071, m8t60071a, me077796, 1347023

    • Normalised article numbler
      cst35603, drs0337, f032113669, f042001187, f042s01187, lrs02364, m008t60071, m008t60071a, m3t56076, m8t60071, m8t60071a, me077796, s5107, s80099, smt0198, str7107, 18542, 18542n, 254278, 454036, 1347023, 11040774
