Article no.: F032113673

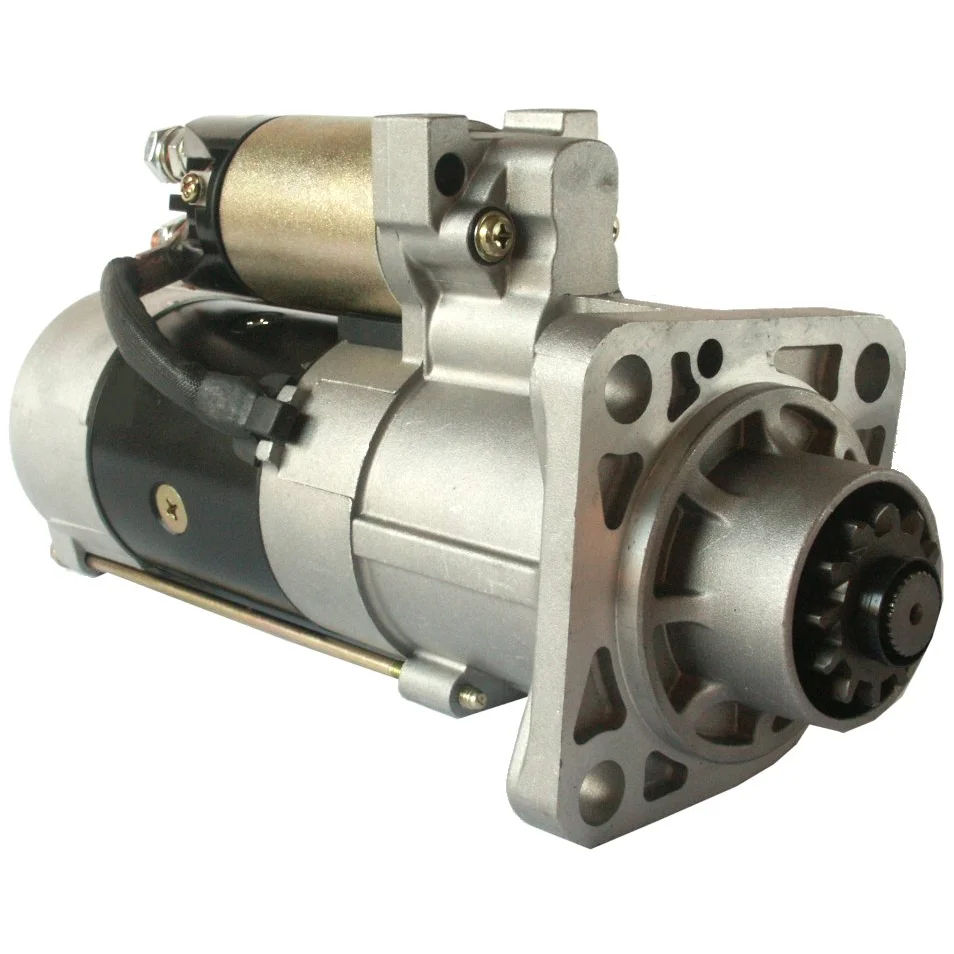

HC-Cargo Starter motor

Technical info:

Voltage: 24, kW: 5.5, No./teeth: 12, Rotation: CW

Description

Voltage: 24
kW: 5.5
Mounting flange: 89.00
Drive distance: 40.00
Mounting hole 3 mm: 13.50
Mounting hole 2 mm: 13.50
Mounting hole 1 mm: 13.50
Distance/back: 271.00
Distance/front: 46.50
Number/teeth: 12
B+: M10
Position/B+: 60
Position/50: 15
Terminal 50: M5
Gear type: GR
Distance 2: 90.00
Distance 3: 90.00
Distance mm: 127.00
Rotation: CW
Position/b-: 35
B-: M10
Total length mm: 350.00
Drive type: Steel
Prod. info: BN
Waterproof: No
Oil sealed: No
Number/mounting holes: 3 (0)

Files

  • OEM
    cs1325, F032113673, M009T60371, M009T60372, m9t60371, m9t60372, 5001847428, 5001853707, 5010306533, 5010306910, 5010480435

  • Normalised article numbler
    cs1325, cst35614, f032113673, f042001196, f042s01196, m009t60371, m009t60372, m9t60371, m9t60372, mitm9t60372, s5022, str7902, 8ea012586361, 101325, 105447, 106005, 203035, 220224, 220224a, 453184, 571517123, 571520123, 5001847428, 5001853707, 5010306533, 5010306910, 5010480435
  • Description
    Voltage: 24
    kW: 5.5
    Mounting flange: 89.00
    Drive distance: 40.00
    Mounting hole 3 mm: 13.50
    Mounting hole 2 mm: 13.50
    Mounting hole 1 mm: 13.50
    Distance/back: 271.00
    Distance/front: 46.50
    Number/teeth: 12
    B+: M10
    Position/B+: 60
    Position/50: 15
    Terminal 50: M5
    Gear type: GR
    Distance 2: 90.00
    Distance 3: 90.00
    Distance mm: 127.00
    Rotation: CW
    Position/b-: 35
    B-: M10
    Total length mm: 350.00
    Drive type: Steel
    Prod. info: BN
    Waterproof: No
    Oil sealed: No
    Number/mounting holes: 3 (0)

    Files

  • Suitable for these vehicles

    • OEM
      cs1325, F032113673, M009T60371, M009T60372, m9t60371, m9t60372, 5001847428, 5001853707, 5010306533, 5010306910, 5010480435

    • Normalised article numbler
      cs1325, cst35614, f032113673, f042001196, f042s01196, m009t60371, m009t60372, m9t60371, m9t60372, mitm9t60372, s5022, str7902, 8ea012586361, 101325, 105447, 106005, 203035, 220224, 220224a, 453184, 571517123, 571520123, 5001847428, 5001853707, 5010306533, 5010306910, 5010480435
