Article no.: F032113675

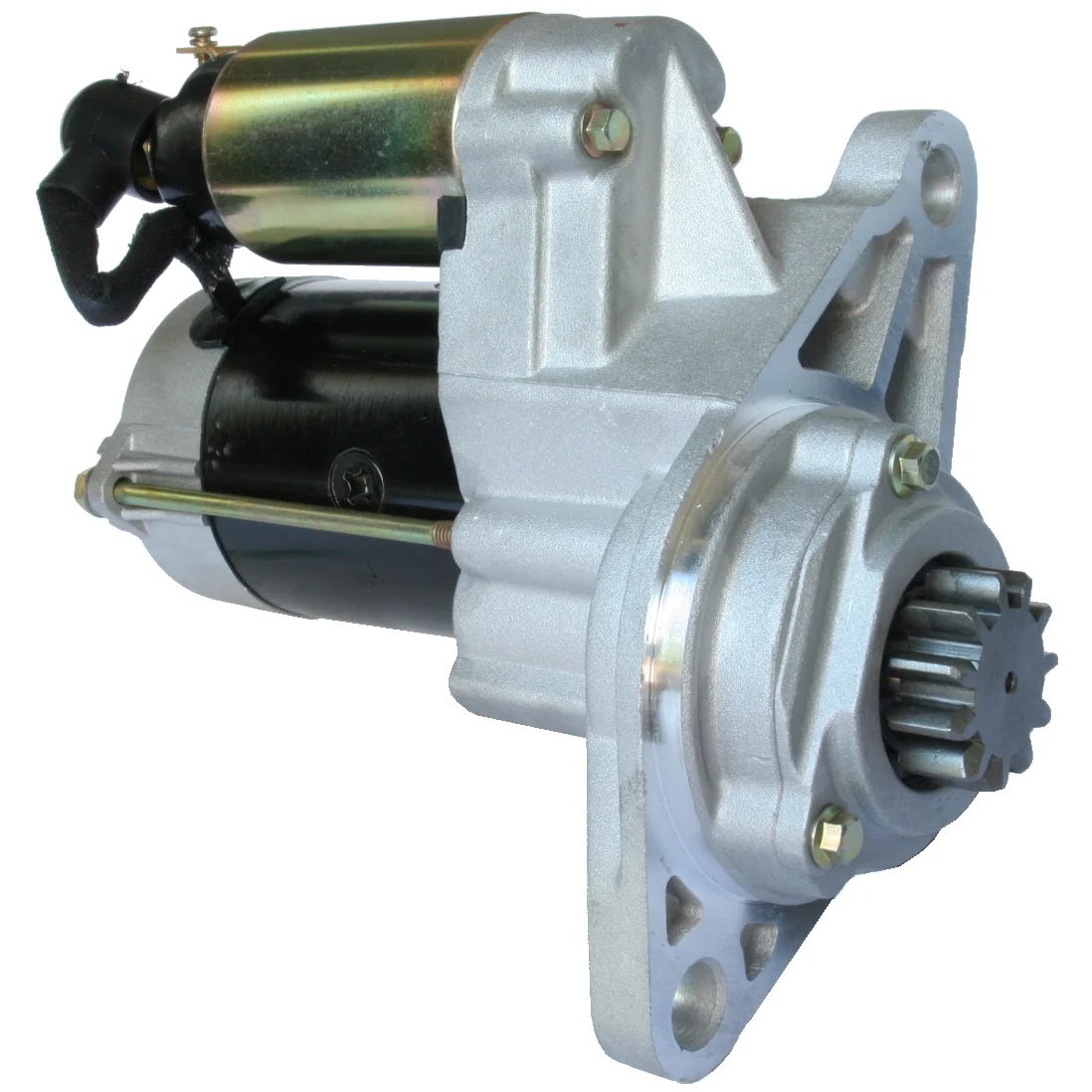

HC-Cargo Starter motor

Technical info:

Voltage: 24, kW: 4.0, No./teeth: 11, Rotation: CCW

Description

Voltage: 24
kW: 4.0
Mounting flange: 94.00
Drive distance: 44.00
Mounting hole 2 mm: 15.00
Mounting hole 1 mm: 15.00
Distance / back: 188.50
Distance / front: 44.00
Number / teeth: 11
B+: M8
Position / 50: 55
Terminal 50: M4
Gear type: GR
Distance mm: 170.00
Rotation: CCW
Total length mm: 235.50
Clutch type: Dry
Drive type: Steel
Prod. info: BN
Waterproof: No
Oil sealed: No
Number / mounting holes: 2 (0)

Files

  • OEM
    F032113675, S25-163, s25-163a, s25-163b, s25-163c, s25-163e, s25-163f, s25-163g, s25-168, s25-168a, s25-171, s25-501, s25-501a, S25-501B, S25-501C, s25-505, s25-505a, s25-505c, S25-505E, s25-505g, S25-515A, S25-515B, S25-515C, 8970324642, 8970655260, 8970958112, 8971009261, 8972161861, 8973239352, 8980549840, 8980552791

  • Normalised article numbler
    cst20606, cst20613, cst20614, drs0845, f032113675, f042004053, f042004054, f042202531, f042s04053, f042s04054, f042s04065, les0316, s2008, s2022, s25163, s25163a, s25163b, s25163c, s25163e, s25163f, s25163g, s25168, s25168a, s25171, s25501, s25501a, s25501b, s25501c, s25505, s25505a, s25505c, s25505e, s25505g, s25515a, s25515b, s25515c, s80102, str6107, 18960n, 22233hi, 254160, 8970324642, 8970655260, 8970958112, 8971009261, 8972161861, 8973239352, 8980549840, 8980552791
  • Description
    Voltage: 24
    kW: 4.0
    Mounting flange: 94.00
    Drive distance: 44.00
    Mounting hole 2 mm: 15.00
    Mounting hole 1 mm: 15.00
    Distance / back: 188.50
    Distance / front: 44.00
    Number / teeth: 11
    B+: M8
    Position / 50: 55
    Terminal 50: M4
    Gear type: GR
    Distance mm: 170.00
    Rotation: CCW
    Total length mm: 235.50
    Clutch type: Dry
    Drive type: Steel
    Prod. info: BN
    Waterproof: No
    Oil sealed: No
    Number / mounting holes: 2 (0)

    Files

  • Suitable for these vehicles

    • OEM
      F032113675, S25-163, s25-163a, s25-163b, s25-163c, s25-163e, s25-163f, s25-163g, s25-168, s25-168a, s25-171, s25-501, s25-501a, S25-501B, S25-501C, s25-505, s25-505a, s25-505c, S25-505E, s25-505g, S25-515A, S25-515B, S25-515C, 8970324642, 8970655260, 8970958112, 8971009261, 8972161861, 8973239352, 8980549840, 8980552791

    • Normalised article numbler
      cst20606, cst20613, cst20614, drs0845, f032113675, f042004053, f042004054, f042202531, f042s04053, f042s04054, f042s04065, les0316, s2008, s2022, s25163, s25163a, s25163b, s25163c, s25163e, s25163f, s25163g, s25168, s25168a, s25171, s25501, s25501a, s25501b, s25501c, s25505, s25505a, s25505c, s25505e, s25505g, s25515a, s25515b, s25515c, s80102, str6107, 18960n, 22233hi, 254160, 8970324642, 8970655260, 8970958112, 8971009261, 8972161861, 8973239352, 8980549840, 8980552791
