HC-Cargo Starter motor
HC-Cargo Starter motor
Article no.: F032113850

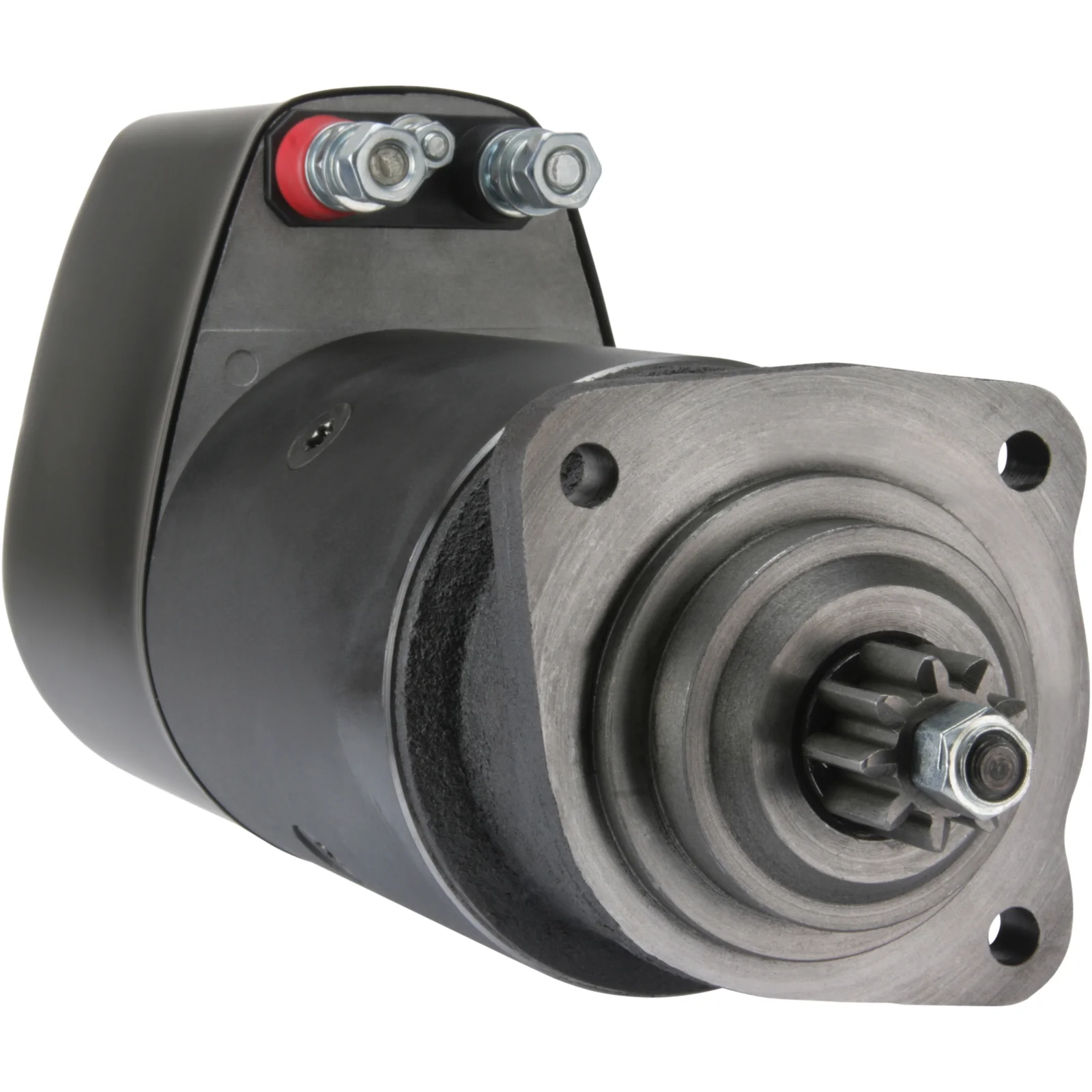

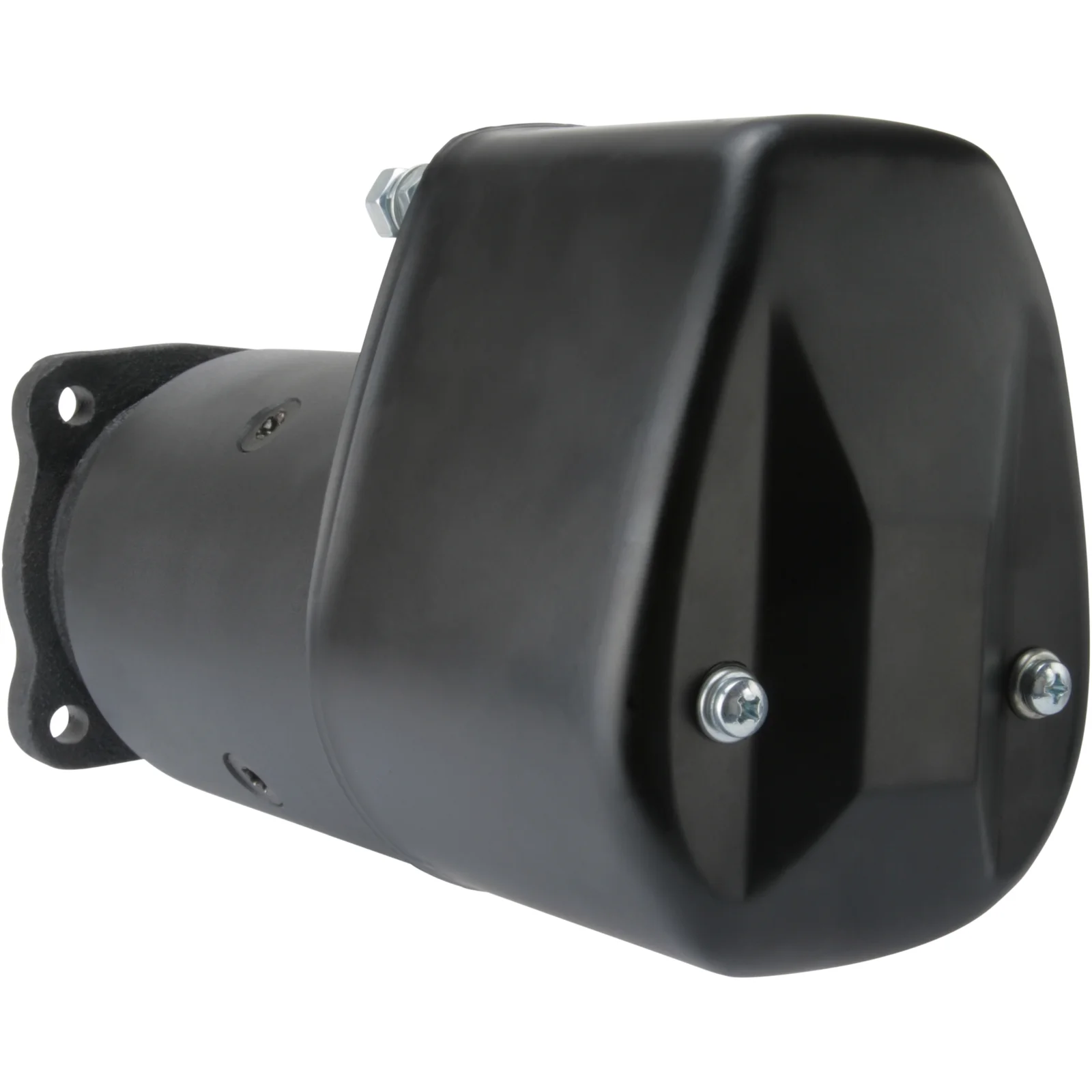

HC-Cargo Starter motor

Technical info:

Voltage: 24, kW: 5.4, No./teeth: 9, Rotation: CW

Description

Voltage: 24
kW: 5.4
Mounting flange: 89.00
Drive distance: 48.00
Mounting hole 3 mm: 11.00
Mounting hole 2 mm: 11.00
Mounting hole 1 mm: 11.00
Distance /back: 319.50
Distance /front: 62.00
Number /teeth: 9
B+: M10
Position /50: 60
Terminal 50: M6
Gear type: DD
Distance 2: 127.00
Distance 3: 90.00
Distance mm: 90.00
Rotation: CW
Position /b-: 60
B-: M10
Total length mm: 387.00
Clutch type: Dry
Drive type: Steel
Production info: BN
Waterproof: No
Oil sealed: No
Info: Not insulated return.
Number /mounting holes: 3 (0)

Files

  • OEM
    AZK5467, F032113850, 559, 0001416059, 4772059, 19024101, 9004772059

  • Normalised article numbler
    azk5467, cst10754, drs0097, f032113850, is9105, lrs01901, ms564, ms674, s0353, 8ea015642431, 559, 18257, 103809, 452198, 0001416059, 4772059, 19024101, 638040094, 811213093, 0986019673, 9004772059
  • Description

    Voltage: 24
    kW: 5.4
    Mounting flange: 89.00
    Drive distance: 48.00
    Mounting hole 3 mm: 11.00
    Mounting hole 2 mm: 11.00
    Mounting hole 1 mm: 11.00
    Distance /back: 319.50
    Distance /front: 62.00
    Number /teeth: 9
    B+: M10
    Position /50: 60
    Terminal 50: M6
    Gear type: DD
    Distance 2: 127.00
    Distance 3: 90.00
    Distance mm: 90.00
    Rotation: CW
    Position /b-: 60
    B-: M10
    Total length mm: 387.00
    Clutch type: Dry
    Drive type: Steel
    Production info: BN
    Waterproof: No
    Oil sealed: No
    Info: Not insulated return.
    Number /mounting holes: 3 (0)

    Files

  • Suitable for these vehicles

    • OEM
      AZK5467, F032113850, 559, 0001416059, 4772059, 19024101, 9004772059

    • Normalised article numbler
      azk5467, cst10754, drs0097, f032113850, is9105, lrs01901, ms564, ms674, s0353, 8ea015642431, 559, 18257, 103809, 452198, 0001416059, 4772059, 19024101, 638040094, 811213093, 0986019673, 9004772059
