Article no.: F032113855

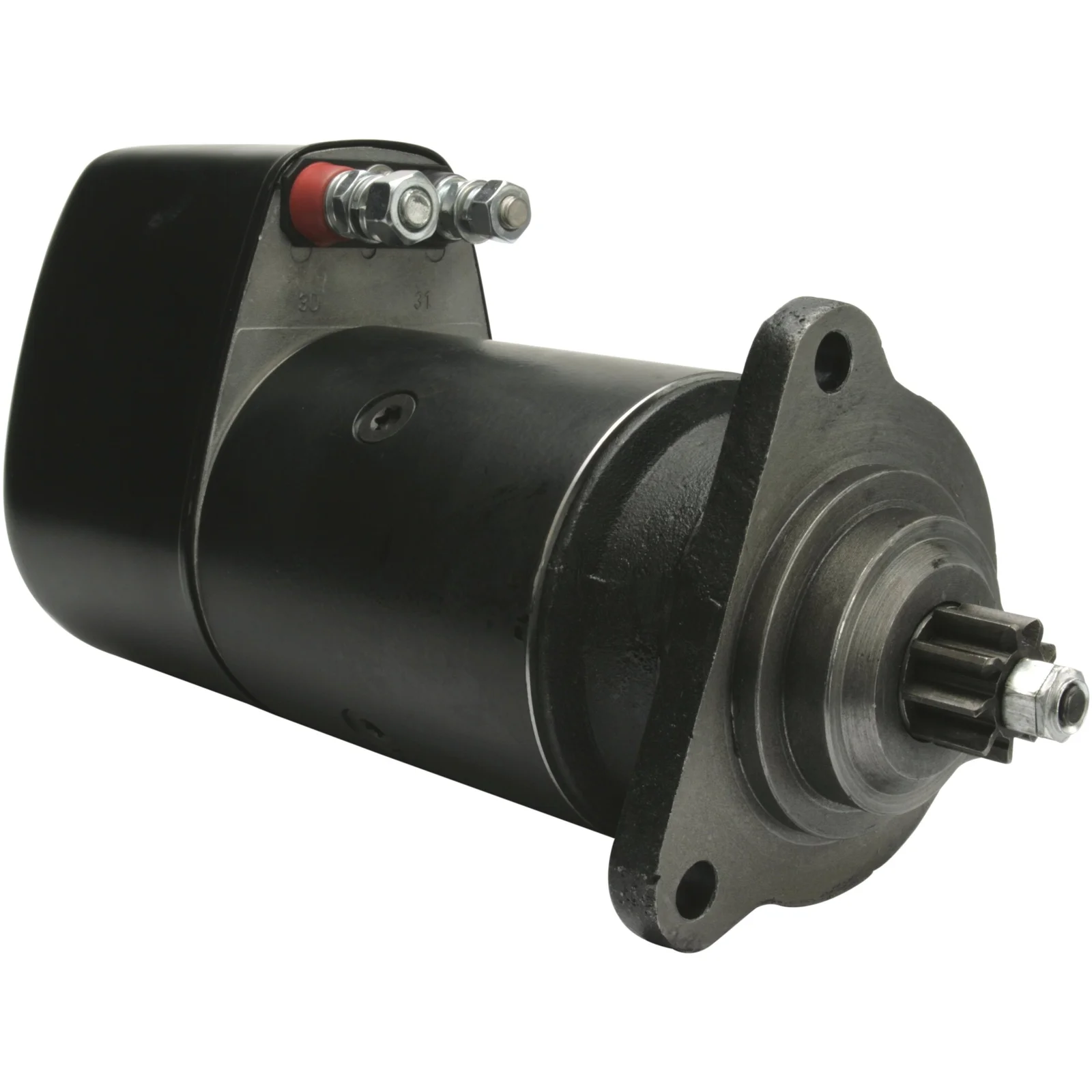

HC-Cargo Starter motor

Technical info:

Voltage: 24, kW: 5.4, No./teeth: 9, Rotation: CW

Description

Voltage: 24
kW: 5.4
Insulated return: Yes
Mounting flange: 92.00
Drive distance: 51.00
Mounting hole 3 mm: 13.50
Mounting hole 2 mm: 13.50
Mounting hole 1 mm: 13.50
Distance / back: 318.00
Distance / front: 61.50
Number / teeth: 9
B+: M12
Position / 50: 60
Terminal 50: M6
Gear type: DD
Distance 2: 126.50
Distance 3: 126.50
Distance mm: 126.50
Rotation: CW
Position / b-: 60
B-: M10
Total length mm: 381.00
Drive type: Steel
Product info: BN
Waterproof: No
Oil sealed: No
Number / mounting holes: 3 (0)

Files

  • OEM
    F032113855, 0001415027, 0001416010, 0001416023, 0031516401

  • Normalised article numbler
    f032113855, 203024, 0001415027, 0001416010, 0001416023, 11013730, 11090166, 0031516401, 600220094, 0986013730
  • Description
    Voltage: 24
    kW: 5.4
    Insulated return: Yes
    Mounting flange: 92.00
    Drive distance: 51.00
    Mounting hole 3 mm: 13.50
    Mounting hole 2 mm: 13.50
    Mounting hole 1 mm: 13.50
    Distance / back: 318.00
    Distance / front: 61.50
    Number / teeth: 9
    B+: M12
    Position / 50: 60
    Terminal 50: M6
    Gear type: DD
    Distance 2: 126.50
    Distance 3: 126.50
    Distance mm: 126.50
    Rotation: CW
    Position / b-: 60
    B-: M10
    Total length mm: 381.00
    Drive type: Steel
    Product info: BN
    Waterproof: No
    Oil sealed: No
    Number / mounting holes: 3 (0)

    Files

  • Suitable for these vehicles

    • OEM
      F032113855, 0001415027, 0001416010, 0001416023, 0031516401

    • Normalised article numbler
      f032113855, 203024, 0001415027, 0001416010, 0001416023, 11013730, 11090166, 0031516401, 600220094, 0986013730
