Article no.: F032113859

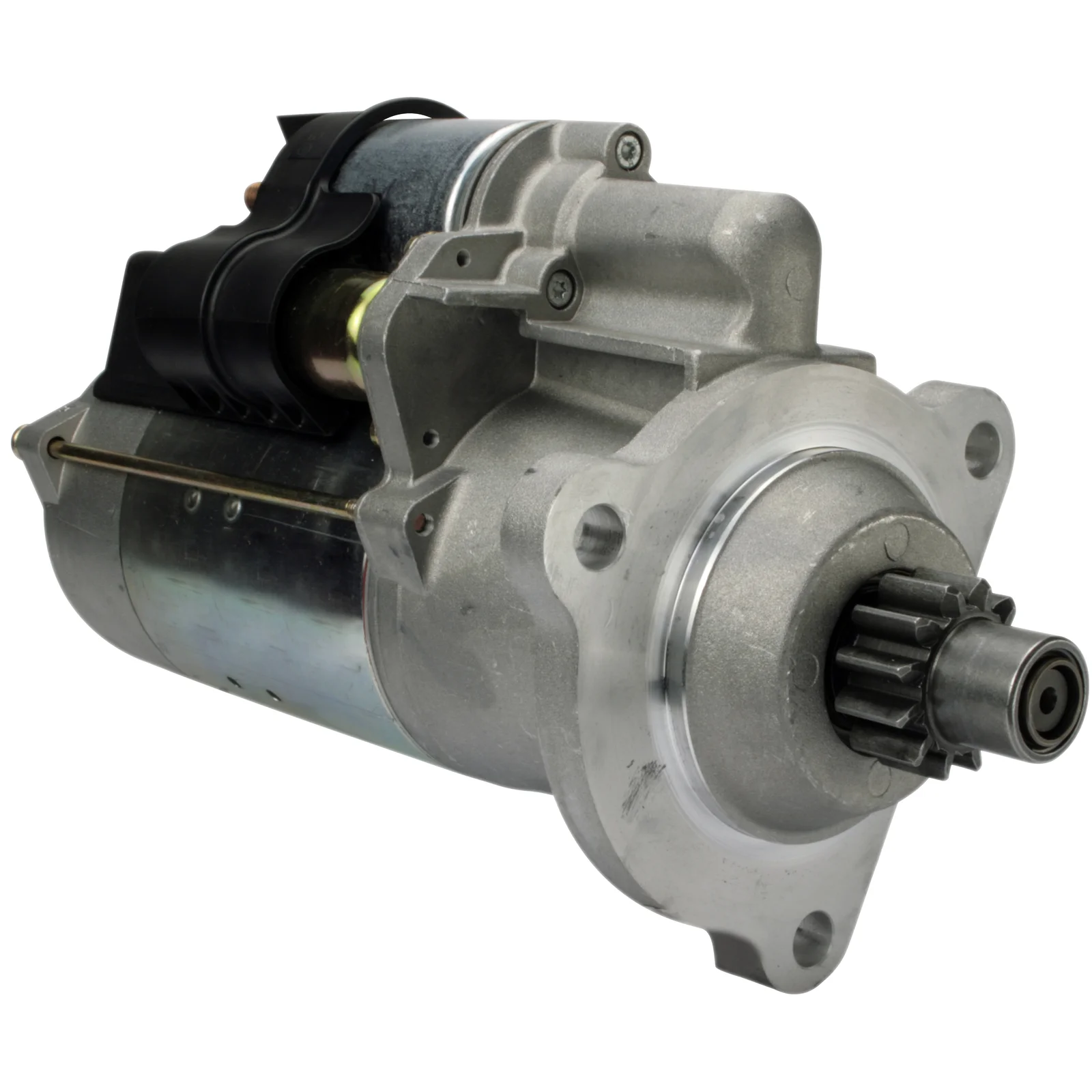

HC-Cargo Starter motor

Technical info:

Voltage: 24, kW: 6.0, No./teeth: 12, Rotation: CW

Description

Voltage: 24
kilowatts: 6.0
Mounting flange: 92.00
Drive distance: 48.00
Mounting hole 3 mm: 13.50
Mounting hole 2 mm: 13.50
Mounting hole 1 mm: 13.50
Distance/armature: 272.50
Distance/front: 71.50
Number/teeth: 12
B+: M10
Position/B+: 10
Position/50: 55
Terminal 50: M6
Gear type: GR
Distance 2: 126.50
Distance 3: 126.50
Distance mm: 126.50
Rotation: CW
Total length mm: 361.00
Clutch type: Dry
Drive type: Steel
Production info: BN
Waterproof: No
Oil sealed: No
Number/mounting holes: 3 (0)

Files

  • OEM
    AZG4862, cs1400, F032113859, 11.139.607, 1986S10087, 571468, 0001330008, 1447912, 72442835

  • Normalised article numbler
    azg4862, cs1400, cst10724, drt2250, f032113859, lrs02273, ms765, s0173, 1986s10087, 101400, 220860, 220860a, 453444, 571468, 0001330008, 1447912, 11139607, 72442835, 332011124
  • Description
    Voltage: 24
    kilowatts: 6.0
    Mounting flange: 92.00
    Drive distance: 48.00
    Mounting hole 3 mm: 13.50
    Mounting hole 2 mm: 13.50
    Mounting hole 1 mm: 13.50
    Distance/armature: 272.50
    Distance/front: 71.50
    Number/teeth: 12
    B+: M10
    Position/B+: 10
    Position/50: 55
    Terminal 50: M6
    Gear type: GR
    Distance 2: 126.50
    Distance 3: 126.50
    Distance mm: 126.50
    Rotation: CW
    Total length mm: 361.00
    Clutch type: Dry
    Drive type: Steel
    Production info: BN
    Waterproof: No
    Oil sealed: No
    Number/mounting holes: 3 (0)

    Files

  • Suitable for these vehicles

    • OEM
      AZG4862, cs1400, F032113859, 11.139.607, 1986S10087, 571468, 0001330008, 1447912, 72442835

    • Normalised article numbler
      azg4862, cs1400, cst10724, drt2250, f032113859, lrs02273, ms765, s0173, 1986s10087, 101400, 220860, 220860a, 453444, 571468, 0001330008, 1447912, 11139607, 72442835, 332011124
