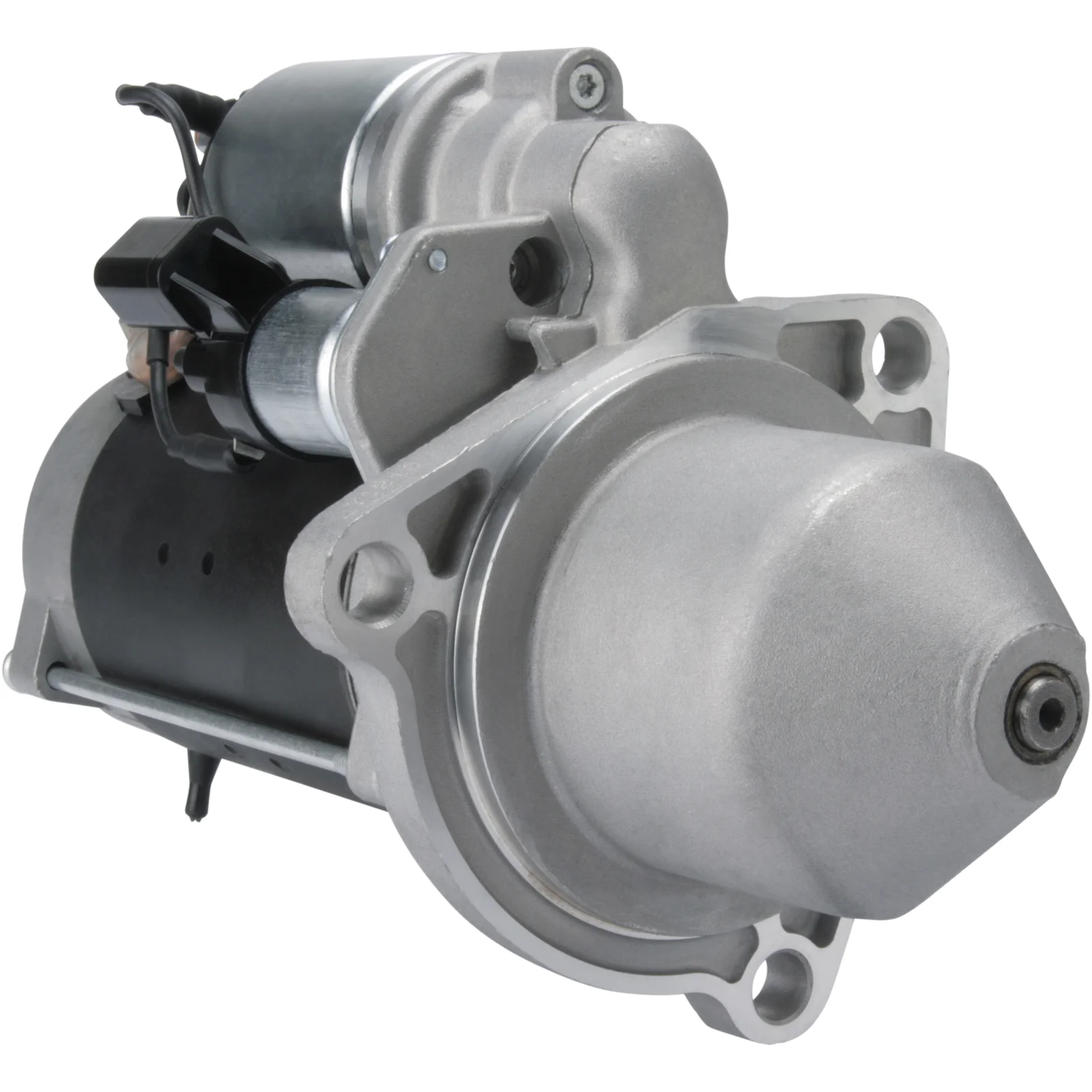

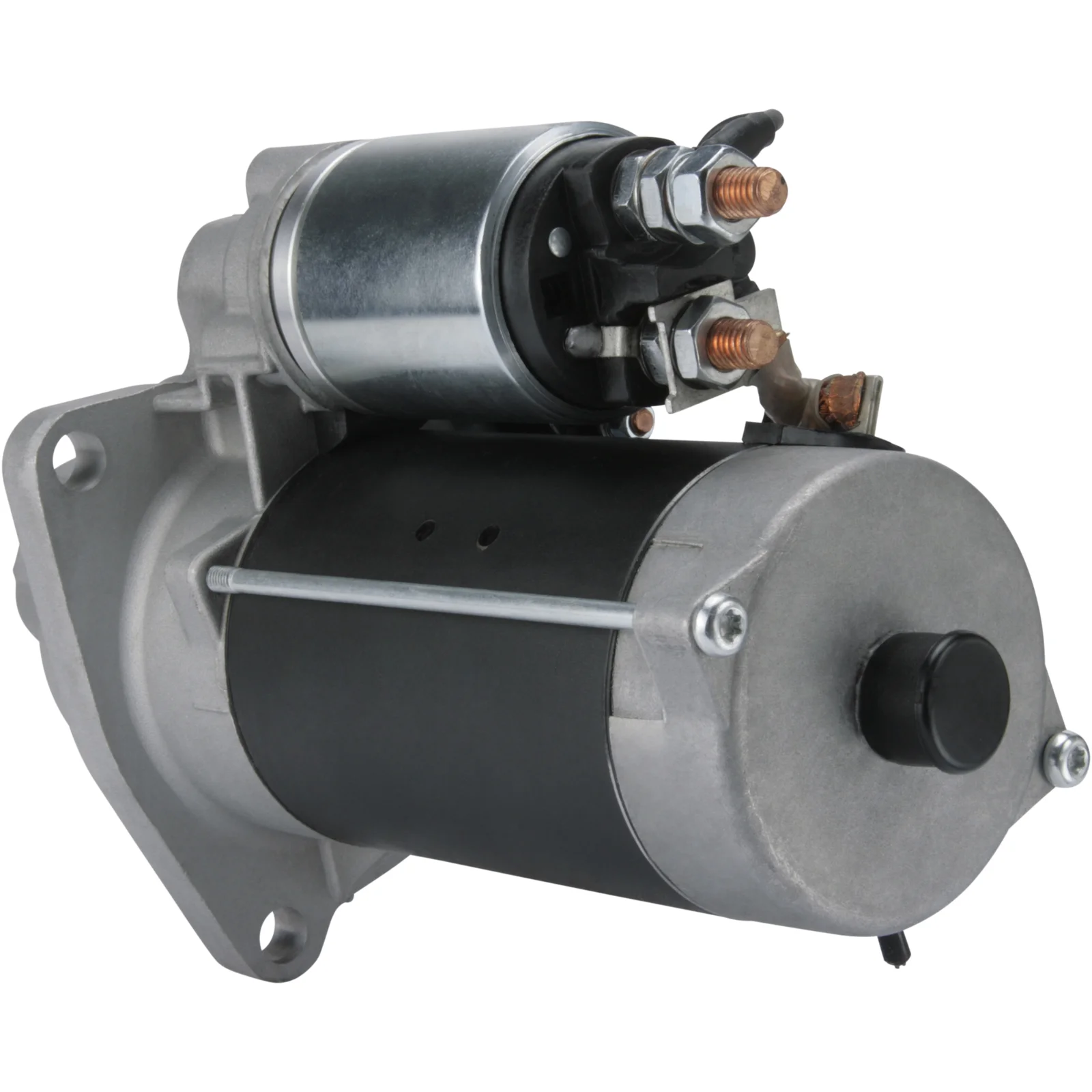

HC-Cargo Starter motor
HC-Cargo Starter motor
Article no.: F032114069

HC-Cargo Starter motor

Technical info:

Voltage: 24, kW: 4.0, No./teeth: 11, Rotation: CW

Description

Voltage: 24
kW: 4.0
Mounting flange: 110.00
Drive distance: 48.00
Mounting hole 3 mm: 13.50
Mounting hole 2 mm: 13.50
Mounting hole 1 mm: 13.50
Distance / back: 208.00
Distance / front: 97.00
Number / teeth: 11
B+: M10
Position / 50: 10
Terminal 50: Plug
Gear type: DD/GR
Distance 2: 127.00
Distance 3: 127.00
Distance mm: 127.00
Rotation: CW
Total length mm: 318.00
Drive type: Steel
Product info: BN
Waterproof: No
Oil sealed: No
Remarks: w/ start relay
Number / mounting holes: 3 (0)

Files

  • OEM
    cs1486, F032114069, 1986S10080, 0001231036, 0001231040, 0001263003, 0001263004, 0001263053, 0001263054, 1633811, 1725900, 1826120, 1956092

  • Normalised article numbler
    cs1486, cst10781, drs0414, f032114069, lrs02457, m93r3093se, ms768, s0184, s0258, 8ea012586621, 1986s10080, 30197n, 106782, 203008, 220724, 220724a, 254371, 438591, 460268, 861040, 0001231036, 0001231040, 0001263003, 0001263004, 0001263053, 0001263054, 1633811, 1725900, 1826120, 1956092, 11090173, 646018114, 0986025890
  • Description
    Voltage: 24
    kW: 4.0
    Mounting flange: 110.00
    Drive distance: 48.00
    Mounting hole 3 mm: 13.50
    Mounting hole 2 mm: 13.50
    Mounting hole 1 mm: 13.50
    Distance / back: 208.00
    Distance / front: 97.00
    Number / teeth: 11
    B+: M10
    Position / 50: 10
    Terminal 50: Plug
    Gear type: DD/GR
    Distance 2: 127.00
    Distance 3: 127.00
    Distance mm: 127.00
    Rotation: CW
    Total length mm: 318.00
    Drive type: Steel
    Product info: BN
    Waterproof: No
    Oil sealed: No
    Remarks: w/ start relay
    Number / mounting holes: 3 (0)

    Files

  • Suitable for these vehicles

    • OEM
      cs1486, F032114069, 1986S10080, 0001231036, 0001231040, 0001263003, 0001263004, 0001263053, 0001263054, 1633811, 1725900, 1826120, 1956092

    • Normalised article numbler
      cs1486, cst10781, drs0414, f032114069, lrs02457, m93r3093se, ms768, s0184, s0258, 8ea012586621, 1986s10080, 30197n, 106782, 203008, 220724, 220724a, 254371, 438591, 460268, 861040, 0001231036, 0001231040, 0001263003, 0001263004, 0001263053, 0001263054, 1633811, 1725900, 1826120, 1956092, 11090173, 646018114, 0986025890
