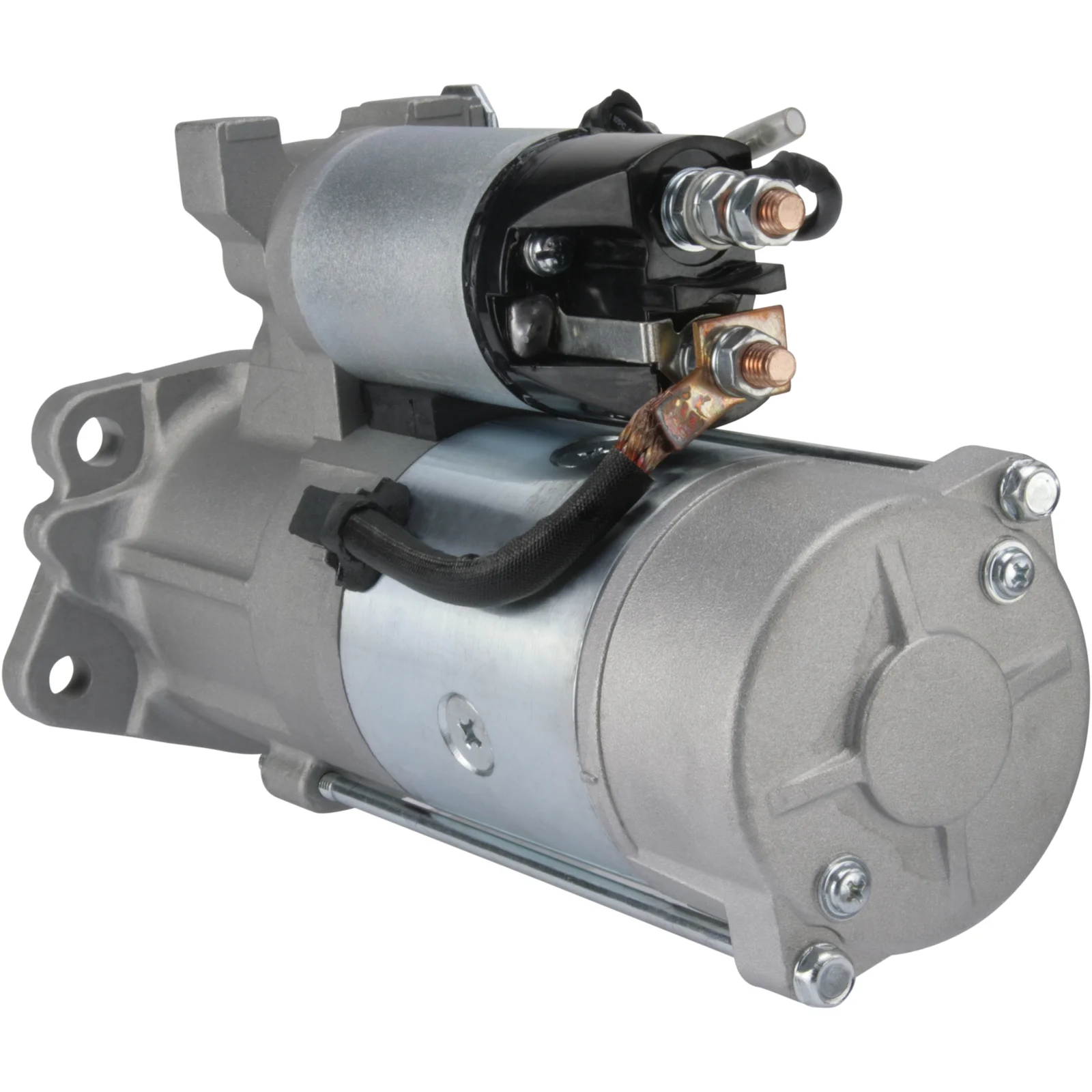

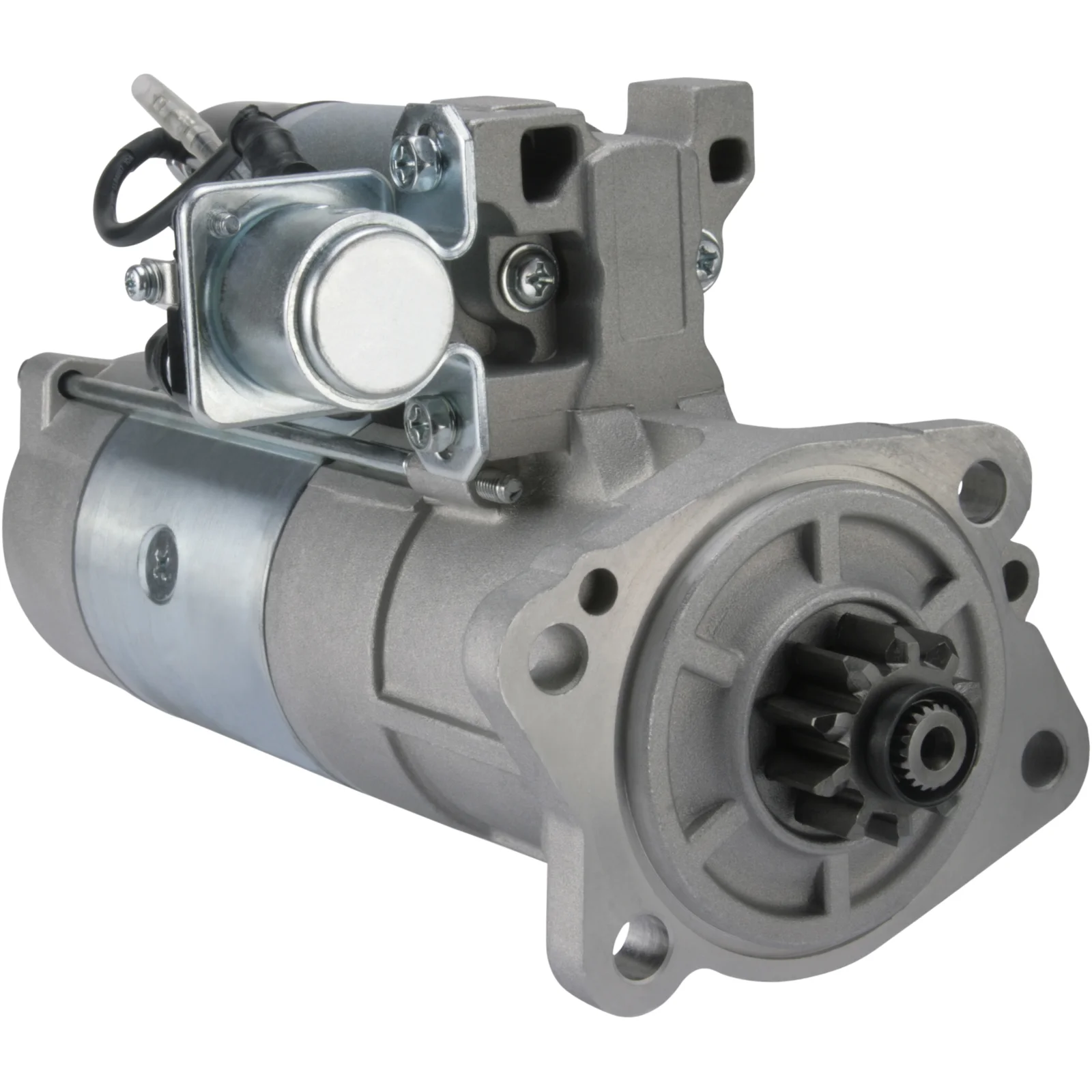

HC-Cargo Starter motor
HC-Cargo Starter motor
Article no.: F032114169

HC-Cargo Starter motor

Technical info:

Voltage: 24, kW: 5.0, No./teeth: 10, Rotation: CW

Description

Voltage: 24
kW: 5.0
Mounting flange: 82.50
Drive distance: 22.50
Mounting hole 4 mm: 10.50
Mounting hole 3 mm: 11.50
Mounting hole 2 mm: 10.50
Mounting hole 1 mm: 11.50
Distance / back: 257.00
Distance / front: 31.00
Number / teeth: 10
B+: M8
Position / 50: 15
Terminal 50: M4
Gear type: GR
Distance 2: 95.50
Distance 3: 55.00
Distance 4: 95.50
Distance mm: 55.00
Rotation: CW
Total length mm: 287.50
Remarks: with starter relay
Number / mounting holes: 2 (0)

Files

  • OEM
    F032114169, M008T60371, M008T60372, M008T60373, m8t60371, m8t60372, m8t60373, m8t60374, 32B66-00200, 32b66-00202, 32b66-00204, 32B66-20100

  • Normalised article numbler
    cst35613, drs0077, f032114169, f042001189, f042s01189, lrs02199, m008t60371, m008t60372, m008t60373, m8t60371, m8t60372, m8t60373, m8t60374, s5108, s5189, s5217, s9185, str7108, 32b6600200, 32b6600202, 32b6600204, 32b6620100, 18246n, 254090, 453370, 151538102, 151538104
  • Description
    Voltage: 24
    kW: 5.0
    Mounting flange: 82.50
    Drive distance: 22.50
    Mounting hole 4 mm: 10.50
    Mounting hole 3 mm: 11.50
    Mounting hole 2 mm: 10.50
    Mounting hole 1 mm: 11.50
    Distance / back: 257.00
    Distance / front: 31.00
    Number / teeth: 10
    B+: M8
    Position / 50: 15
    Terminal 50: M4
    Gear type: GR
    Distance 2: 95.50
    Distance 3: 55.00
    Distance 4: 95.50
    Distance mm: 55.00
    Rotation: CW
    Total length mm: 287.50
    Remarks: with starter relay
    Number / mounting holes: 2 (0)

    Files

  • Suitable for these vehicles

    • OEM
      F032114169, M008T60371, M008T60372, M008T60373, m8t60371, m8t60372, m8t60373, m8t60374, 32B66-00200, 32b66-00202, 32b66-00204, 32B66-20100

    • Normalised article numbler
      cst35613, drs0077, f032114169, f042001189, f042s01189, lrs02199, m008t60371, m008t60372, m008t60373, m8t60371, m8t60372, m8t60373, m8t60374, s5108, s5189, s5217, s9185, str7108, 32b6600200, 32b6600202, 32b6600204, 32b6620100, 18246n, 254090, 453370, 151538102, 151538104
