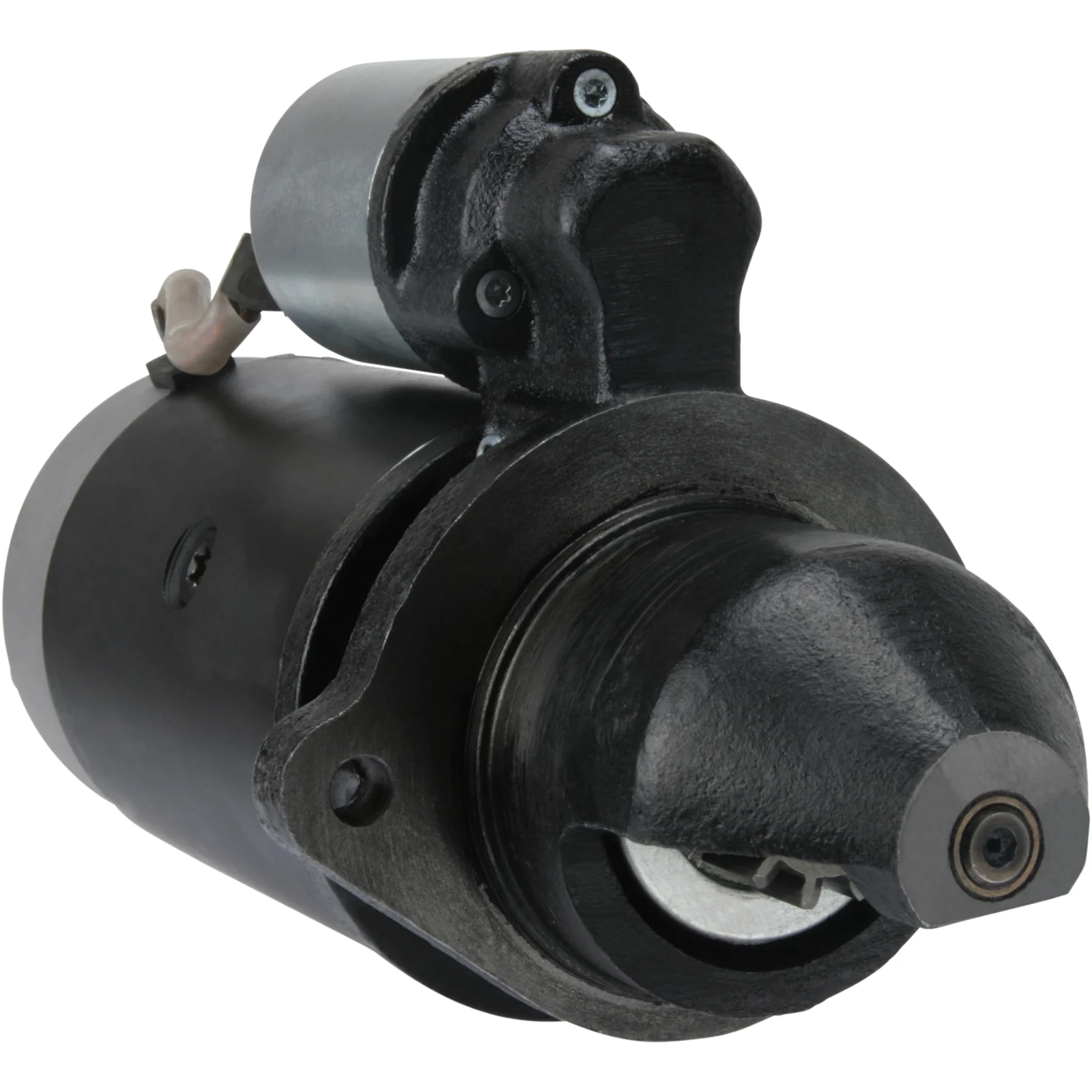

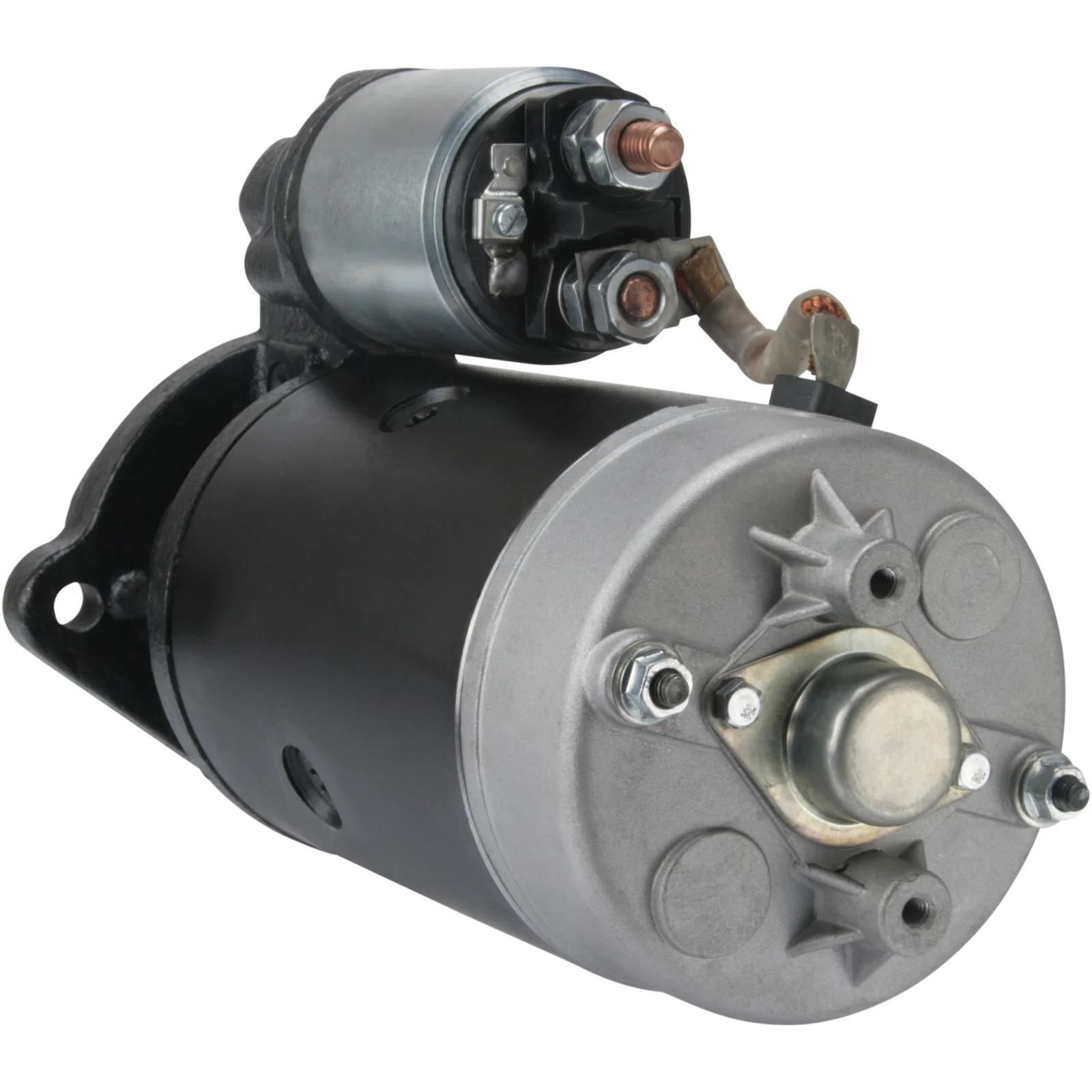

HC-Cargo Starter motor
HC-Cargo Starter motor
Article no.: F032114170

HC-Cargo Starter motor

Technical info:

Voltage: 24, kW: 4.0, No./teeth: 11, Rotation: CW

Description

Voltage: 24
kW: 4.0
Mounting flange: 89.00
Drive distance: 48.00
Mounting hole 2 mm: 11.00
Mounting hole 1 mm: 11.00
Distance / back: 237.00
Distance / front: 94.50
Number / teeth: 11
B+: M10
Position / 50: 45
Terminal 50: M4
Gear type: DD
Distance mm: 127.00
Rotation: CW
Total length mm: 340.00
Servicing: Volvo
Number / mounting holes: 2 (0)

Files

  • OEM
    F032114170, 0001360004, 0001368004, 0001368014, 4785484, 605720100021

  • Normalised article numbler
    cst10713, f032114170, lrs02235, s0288, s0749s, 33693, 254536, 0001360004, 0001368004, 0001368014, 4785484, 11090213, 638008114, 811011112, 605720100021
  • Description
    Voltage: 24
    kW: 4.0
    Mounting flange: 89.00
    Drive distance: 48.00
    Mounting hole 2 mm: 11.00
    Mounting hole 1 mm: 11.00
    Distance / back: 237.00
    Distance / front: 94.50
    Number / teeth: 11
    B+: M10
    Position / 50: 45
    Terminal 50: M4
    Gear type: DD
    Distance mm: 127.00
    Rotation: CW
    Total length mm: 340.00
    Servicing: Volvo
    Number / mounting holes: 2 (0)

    Files

  • Suitable for these vehicles

    • OEM
      F032114170, 0001360004, 0001368004, 0001368014, 4785484, 605720100021

    • Normalised article numbler
      cst10713, f032114170, lrs02235, s0288, s0749s, 33693, 254536, 0001360004, 0001368004, 0001368014, 4785484, 11090213, 638008114, 811011112, 605720100021
