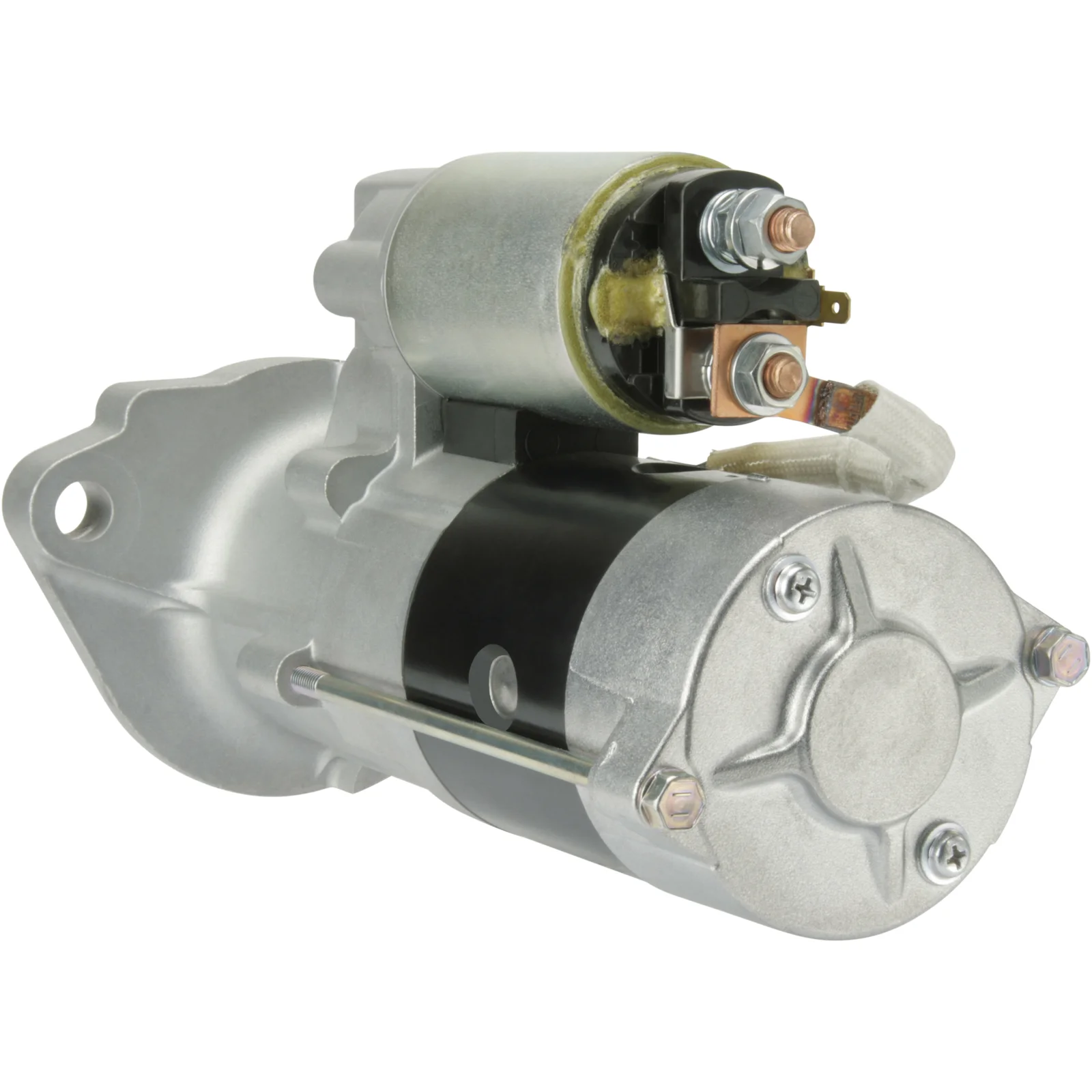

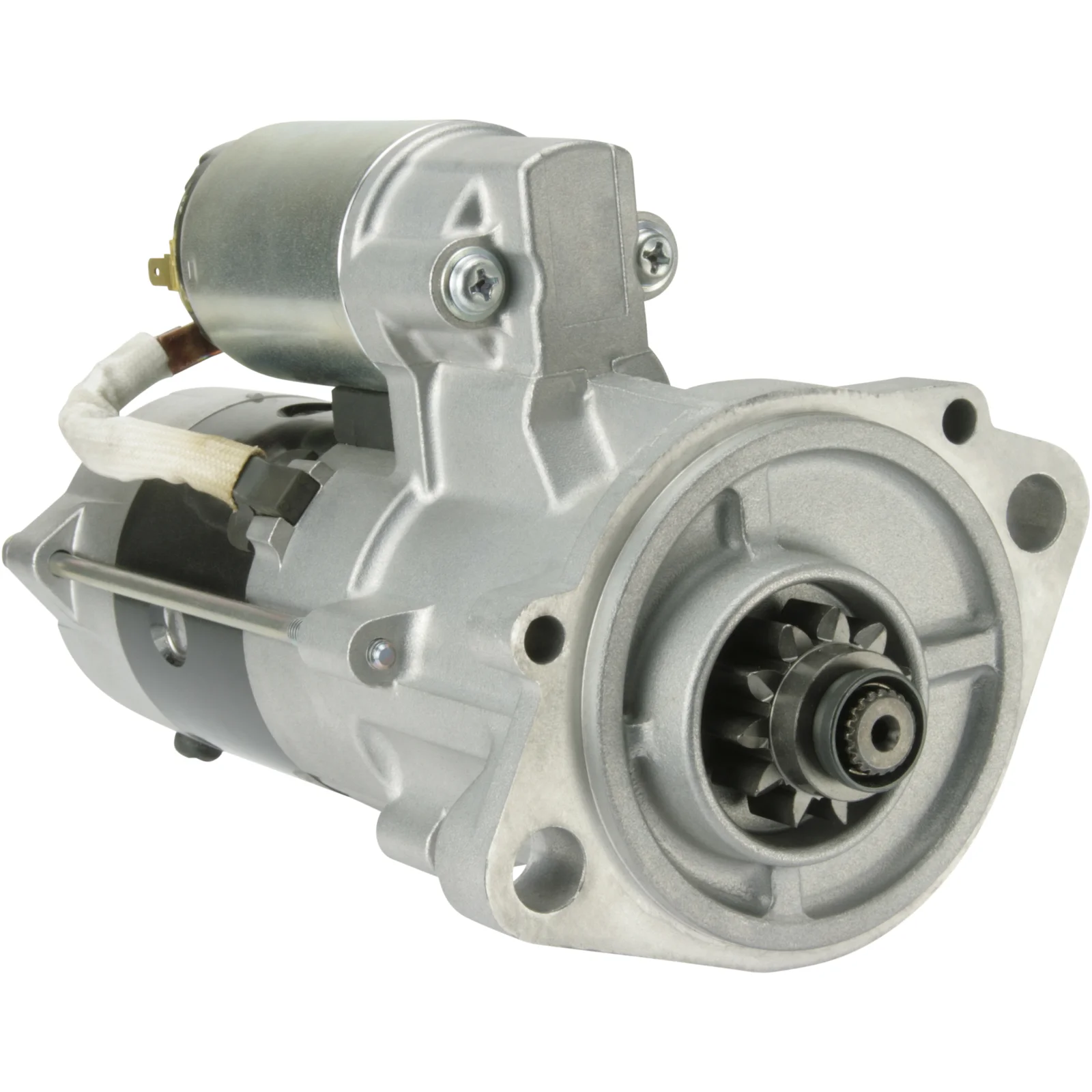

HC-Cargo Starter motor
HC-Cargo Starter motor
Article no.: F032114185

HC-Cargo Starter motor

Technical info:

Voltage: 24, kW: 3.2, No./teeth: 11, Rotation: CW

Description

Voltage: 24
kW: 3.2
Mount. flange: 95.00
Drive dist.: 20.00
Mount. hole 2 mm: 14.00
Mount. hole 1 mm: 14.00
Dist./back: 223.00
Dist./front: 35.00
No./teeth: 11
B+: M8
Position/50: 15
Terminal 50: 6.30
Gear type: GR
Dist. mm: 119.50
Rotation: CW
Total length mm: 259.00
Prod. info: BN/OE
No./mount. holes: 2 (0)

Files

  • OEM
    F032114185, M008T80371, M008T80373, m8t80371, m8t80373, 714/34500, 8971374780, 8971374781

  • Normalised article numbler
    cst35627, drs0393, f032114185, lrs01962, m008t80371, m008t80373, m8t80371, m8t80373, s5203, s5203mitsubishi, 30027, 30027n, 254344, 11040880, 71434500, 8971374780, 8971374781
  • Description
    Voltage: 24
    kW: 3.2
    Mount. flange: 95.00
    Drive dist.: 20.00
    Mount. hole 2 mm: 14.00
    Mount. hole 1 mm: 14.00
    Dist./back: 223.00
    Dist./front: 35.00
    No./teeth: 11
    B+: M8
    Position/50: 15
    Terminal 50: 6.30
    Gear type: GR
    Dist. mm: 119.50
    Rotation: CW
    Total length mm: 259.00
    Prod. info: BN/OE
    No./mount. holes: 2 (0)

    Files

  • Suitable for these vehicles

    • OEM
      F032114185, M008T80371, M008T80373, m8t80371, m8t80373, 714/34500, 8971374780, 8971374781

    • Normalised article numbler
      cst35627, drs0393, f032114185, lrs01962, m008t80371, m008t80373, m8t80371, m8t80373, s5203, s5203mitsubishi, 30027, 30027n, 254344, 11040880, 71434500, 8971374780, 8971374781
