HC-Cargo Starter motor
HC-Cargo Starter motor
Article no.: F032114220

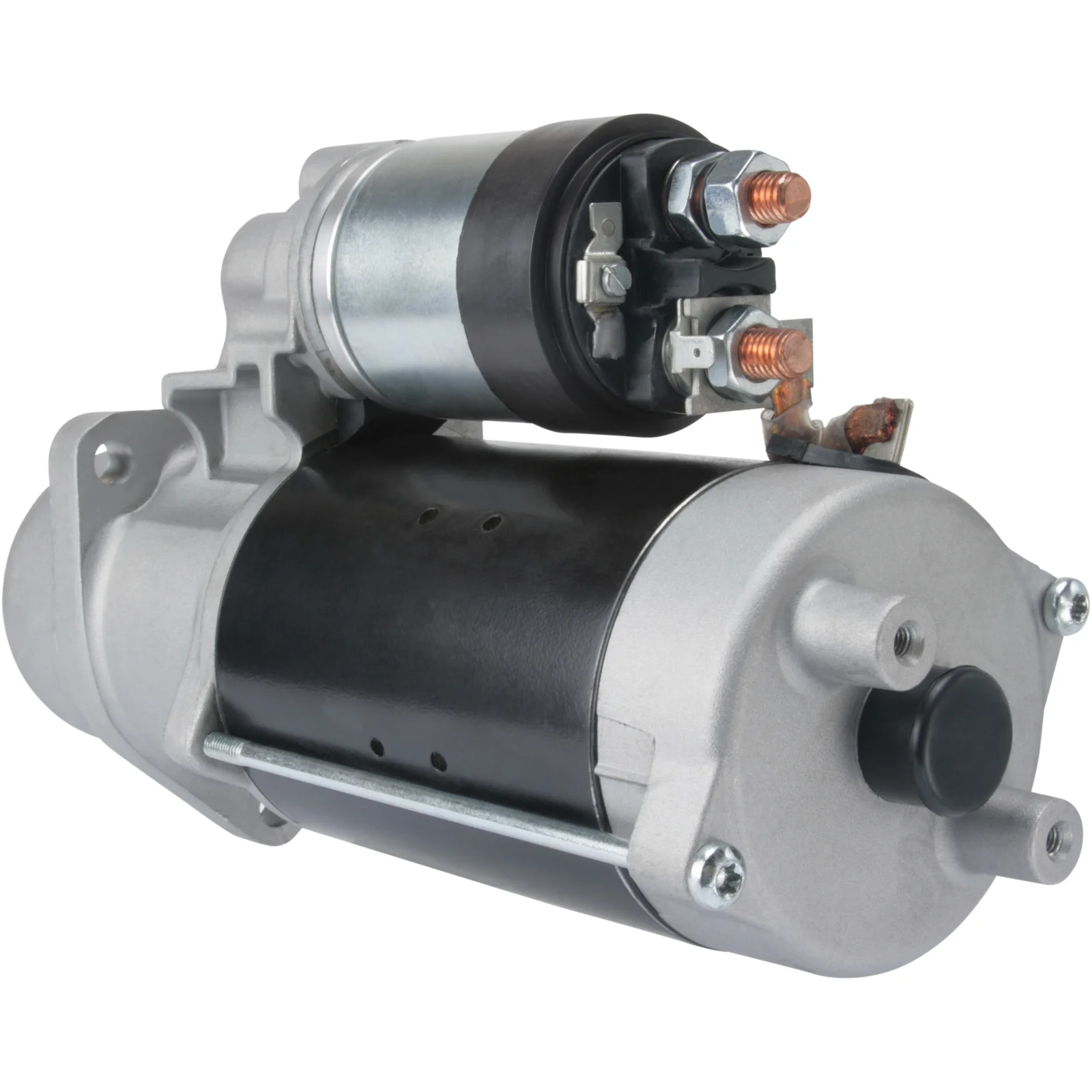

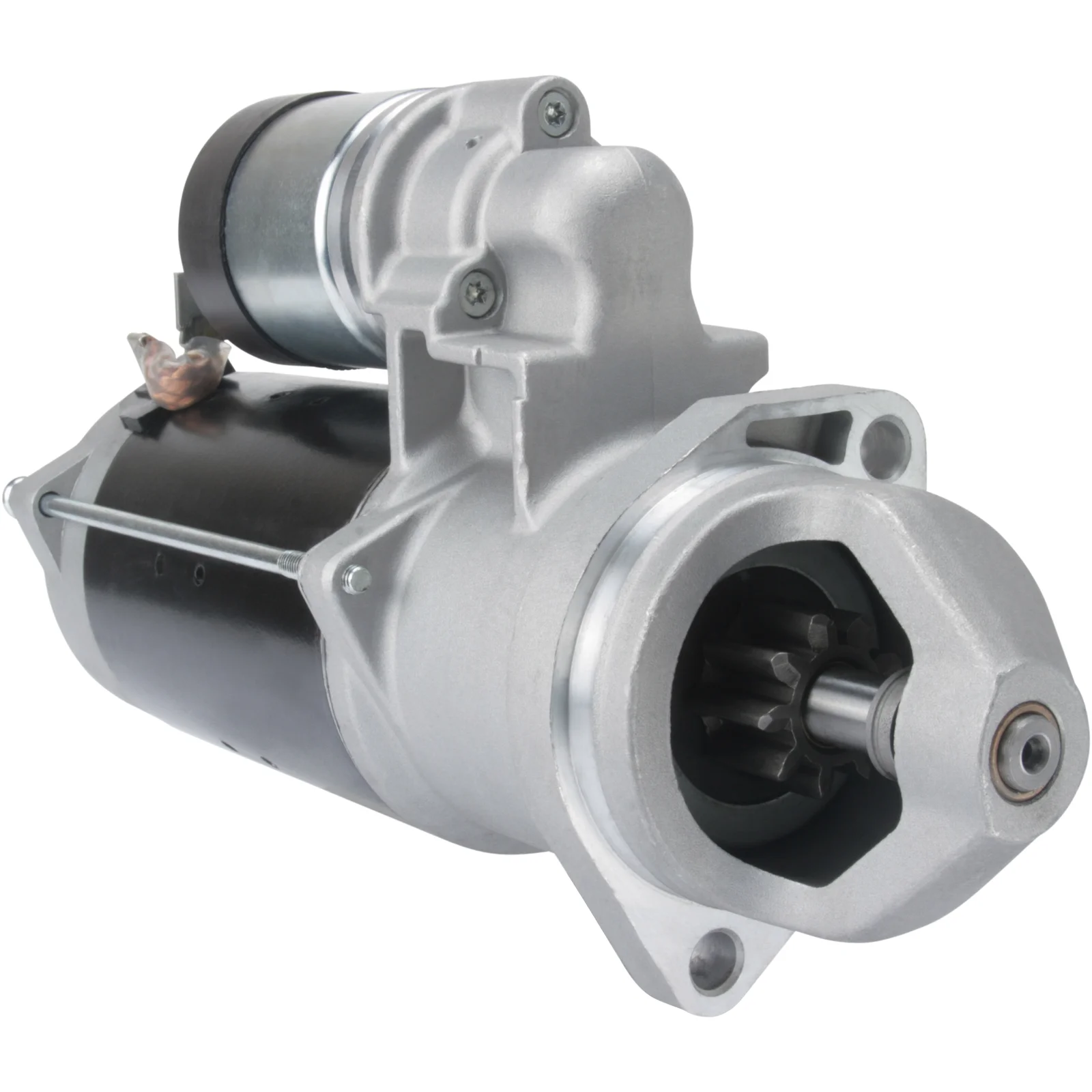

HC-Cargo Starter motor

Technical info:

Voltage: 24, kW: 4.0, No./teeth: 9, Rotation: CW

Description

Voltage: 24
kW: 4.0
Mount. flange: 82.50
Drive distance: 23.00
Mount. hole 2 mm: 11.00
Mount. hole 1 mm: 11.00
Distance / back: 232.00
Distance / front: 71.00
Number / teeth: 9
B+: M10
Position / 50: 45
Terminal 50: M4
Gear type: GR
Distance in millimeters: 101.50
Rotation: CW
Total length in millimeters: 320.00
Number / mounting holes: 2 (0)

Files

  • OEM
    AZF4156, AZF4230, F032114220, 11.131.607, 11.131.863, 0001101110, 01171750, 01181753, 1181753, 01182126, 1182126, 01182390, 1182390, 0001231018, 04300286

  • Normalised article numbler
    azf4156, azf4230, cst10684, cst21605, drs0366, f032114220, is1236, ms68, s0182, s9099, s9099letrika, 30329n, 254308, 454402, 0001101110, 01171750, 01181753, 1181753, 01182126, 1182126, 01182390, 1182390, 0001231018, 04300286, 11090149, 11131607, 11131863, 600243094, 063522310180
  • Description
    Voltage: 24
    kW: 4.0
    Mount. flange: 82.50
    Drive distance: 23.00
    Mount. hole 2 mm: 11.00
    Mount. hole 1 mm: 11.00
    Distance / back: 232.00
    Distance / front: 71.00
    Number / teeth: 9
    B+: M10
    Position / 50: 45
    Terminal 50: M4
    Gear type: GR
    Distance in millimeters: 101.50
    Rotation: CW
    Total length in millimeters: 320.00
    Number / mounting holes: 2 (0)

    Files

  • Suitable for these vehicles

    • OEM
      AZF4156, AZF4230, F032114220, 11.131.607, 11.131.863, 0001101110, 01171750, 01181753, 1181753, 01182126, 1182126, 01182390, 1182390, 0001231018, 04300286

    • Normalised article numbler
      azf4156, azf4230, cst10684, cst21605, drs0366, f032114220, is1236, ms68, s0182, s9099, s9099letrika, 30329n, 254308, 454402, 0001101110, 01171750, 01181753, 1181753, 01182126, 1182126, 01182390, 1182390, 0001231018, 04300286, 11090149, 11131607, 11131863, 600243094, 063522310180
