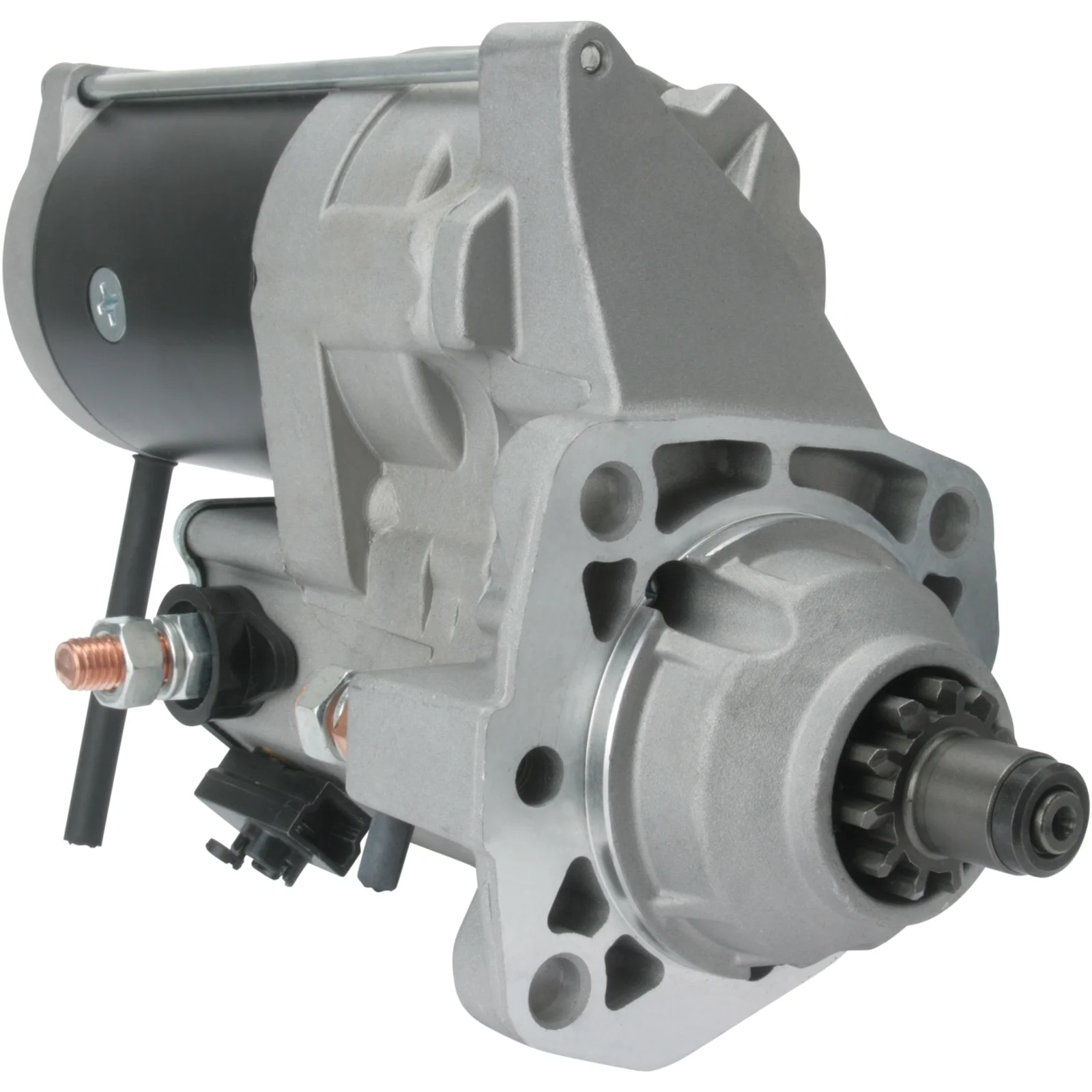

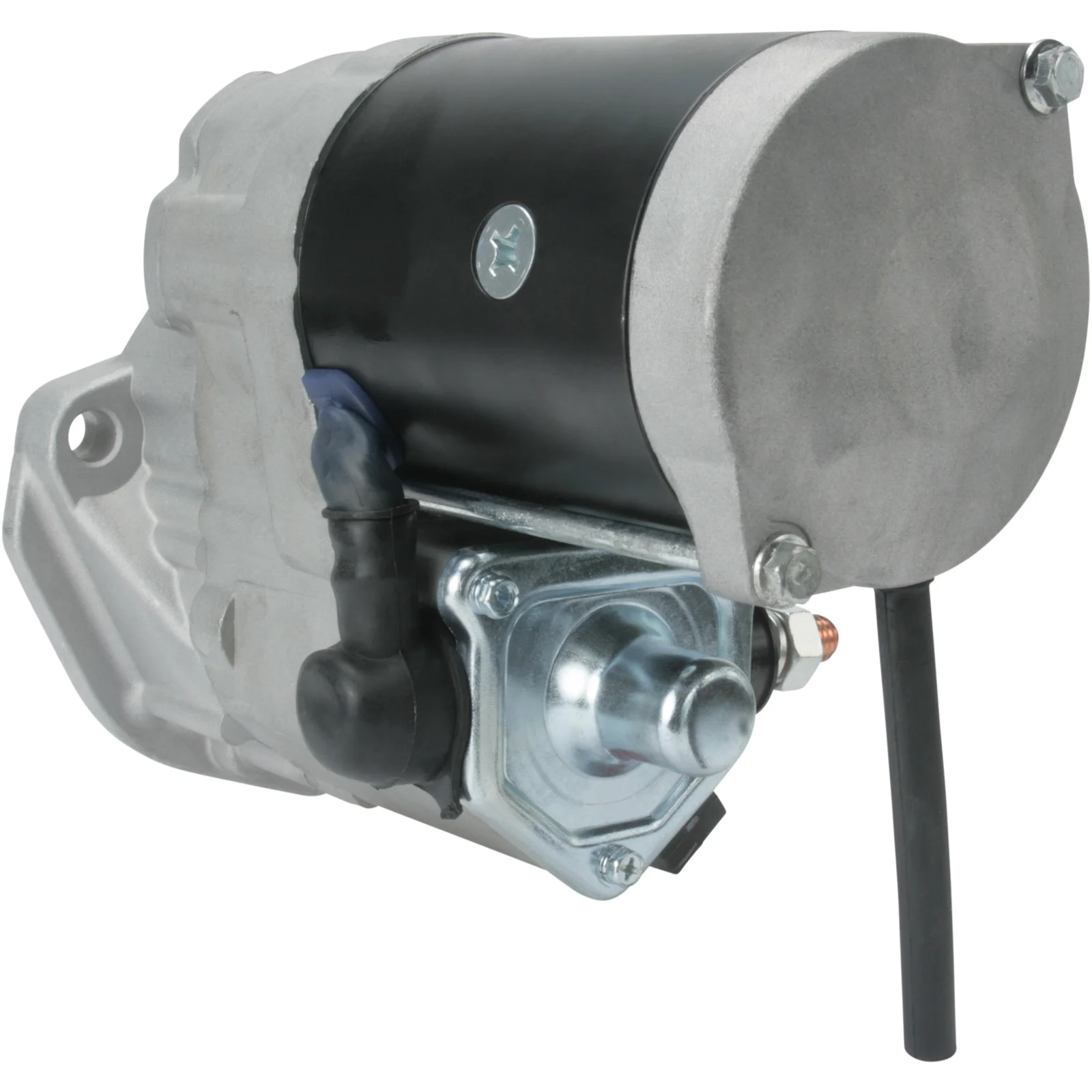

HC-Cargo Starter motor
HC-Cargo Starter motor
Article no.: F032114222

HC-Cargo Starter motor

Technical info:

Voltage: 24, kW: 7.5, No./teeth: 11, Rotation: CW

Description

John Deere Starter motor 24V-7.5kW 24V - 7.5kW, 11k For Yourrex product order 91-270-7413

Voltage: 24
kW: 7.5
Mounting flange: 89.00
Drive distance: 48.00
Mounting hole 3 mm: 11.50
Mounting hole 2 mm: 11.50
Mounting hole 1 mm: 11.50
Distance / back: 160.50
Distance / front: 74.50
Number / teeth: 11
B+: M12
Position / 50: 22
Terminal 50: M5
Gear type: GR
Distance 2: 90.00
Distance 3: 90.00
Distance mm: 127.00
Rotation: CW
Position / b-: 15
B-: M12
Total length mm: 319.00
Clutch type: Wet
Drive type: Steel
Product info: BN
Waterproof: Yes
Oil sealed: Yes
Number / mounting holes: 3 (0)

Files

  • OEM
    F032114222, RE 501050, RE 501060, RE 501150, RE 69705, RE 70958, RE501050, RE501060, RE501150, RE69705, RE70958, TY 24443, TY24443, 114222, 228000-6560, 228000-6561, 228000-7410, 228000-7411, 228000-7412, 228000-7413, 501406

  • Normalised article numbler
    cst40612, dsn2027, dsn2147, f032114222, re501050, re501060, re501150, re69705, re70958, s6118, ty24443, 19847n, 19848, 19848n, 114222, 454279, 501406, 631513113, 686016114, 2280006560, 2280006561, 2280007410, 2280007411, 2280007412, 2280007413
  • Description
    John Deere Starter motor 24V-7.5kW 24V - 7.5kW, 11k For Yourrex product order 91-270-7413

    Voltage: 24
    kW: 7.5
    Mounting flange: 89.00
    Drive distance: 48.00
    Mounting hole 3 mm: 11.50
    Mounting hole 2 mm: 11.50
    Mounting hole 1 mm: 11.50
    Distance / back: 160.50
    Distance / front: 74.50
    Number / teeth: 11
    B+: M12
    Position / 50: 22
    Terminal 50: M5
    Gear type: GR
    Distance 2: 90.00
    Distance 3: 90.00
    Distance mm: 127.00
    Rotation: CW
    Position / b-: 15
    B-: M12
    Total length mm: 319.00
    Clutch type: Wet
    Drive type: Steel
    Product info: BN
    Waterproof: Yes
    Oil sealed: Yes
    Number / mounting holes: 3 (0)

    Files

  • Suitable for these vehicles

    • OEM
      F032114222, RE 501050, RE 501060, RE 501150, RE 69705, RE 70958, RE501050, RE501060, RE501150, RE69705, RE70958, TY 24443, TY24443, 114222, 228000-6560, 228000-6561, 228000-7410, 228000-7411, 228000-7412, 228000-7413, 501406

    • Normalised article numbler
      cst40612, dsn2027, dsn2147, f032114222, re501050, re501060, re501150, re69705, re70958, s6118, ty24443, 19847n, 19848, 19848n, 114222, 454279, 501406, 631513113, 686016114, 2280006560, 2280006561, 2280007410, 2280007411, 2280007412, 2280007413
