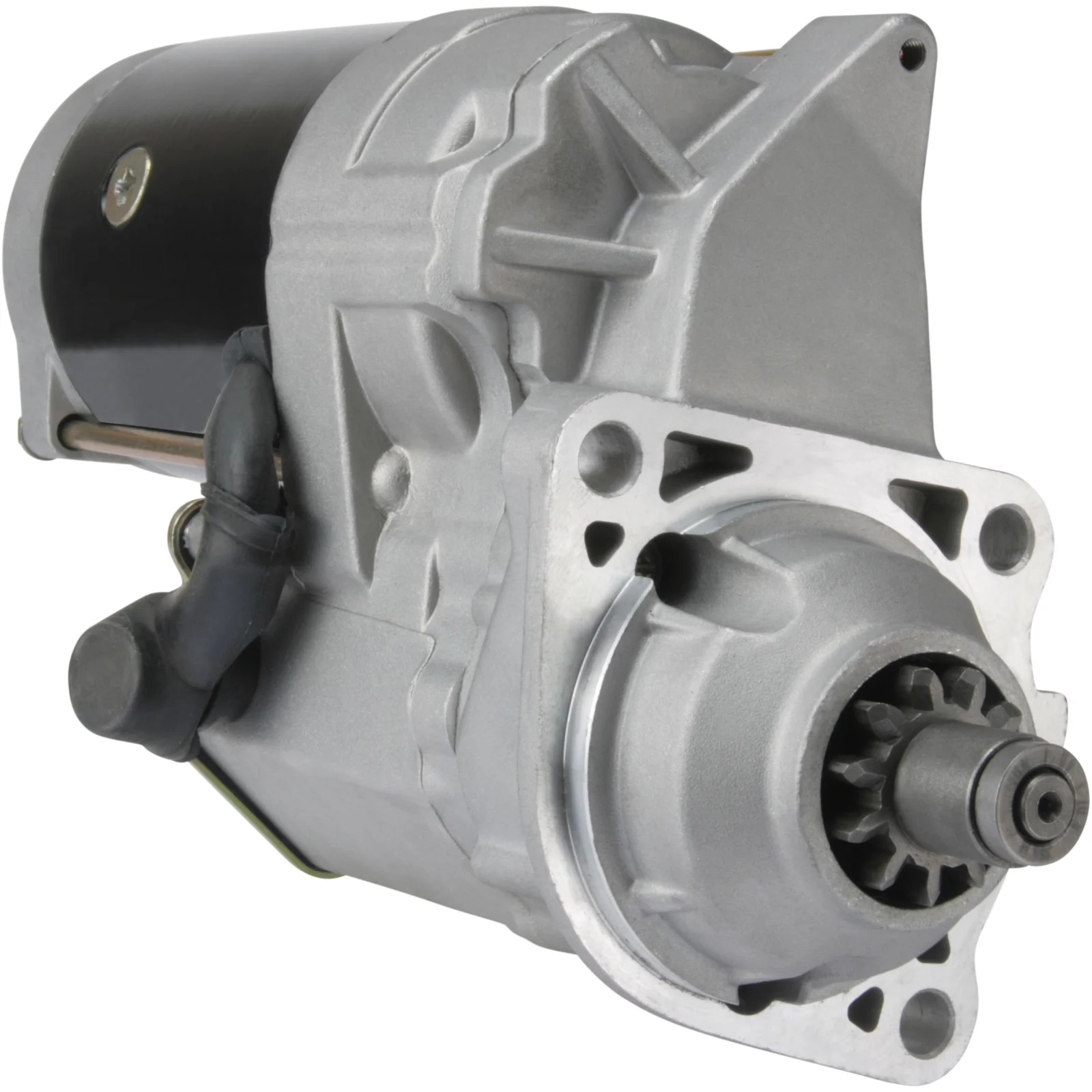

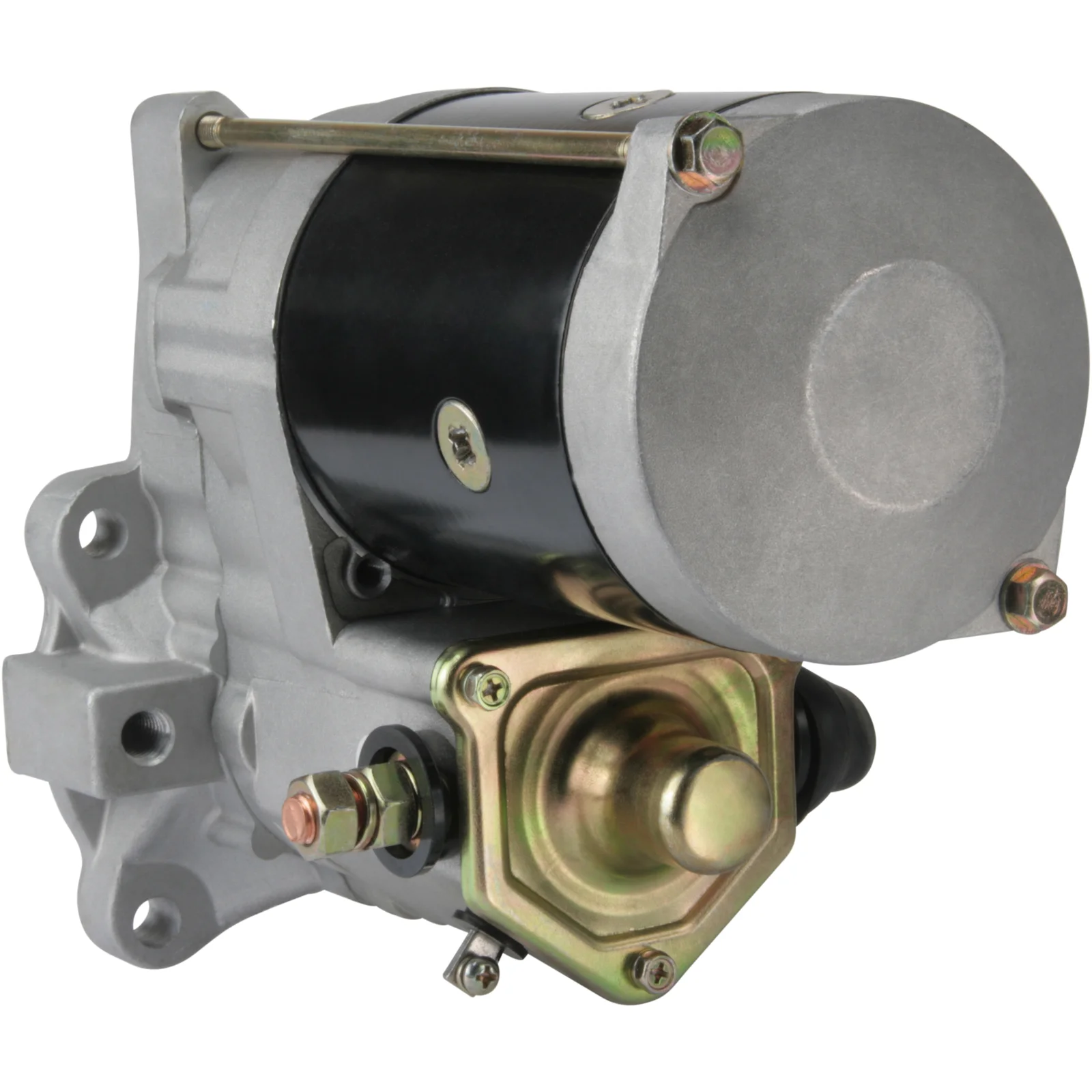

HC-Cargo Starter motor
HC-Cargo Starter motor
Article no.: F032114277

HC-Cargo Starter motor

Technical info:

Voltage: 24, kW: 7.5, No./teeth: 11, Rotation: CW

Description

Voltage: 24
kW: 7.5
Mount. flange: 89.00
Drive distance: 47.50
Mounting hole 3 mm: 11.50
Mounting hole 2 mm: 11.50
Mounting hole 1 mm: 11.50
Distance / back: 160.00
Distance / front: 73.00
Number / teeth: 11
B+: M10
Terminal 50: M5
Gear type: GR
Distance 2: 127.00
Distance 3: 89.50
Distance mm: 89.50
Rotation: CW
Total length mm: 317.00
Drive type: Steel
Product info: BN
Number / mounting holes: 3 (0)

Files

  • OEM
    F032114277, RE500199, Re70475, RE70961, 228000-6570, 228000-6571, 228000-6572, 501354, 501407, 501424, 502077

  • Normalised article numbler
    cst40637, dsn2020, f032114277, re500199, re70475, re70961, s6385s, 18458n, 254611, 455108, 501354, 501407, 501424, 502077, 2280006570, 2280006571, 2280006572
  • Description
    Voltage: 24
    kW: 7.5
    Mount. flange: 89.00
    Drive distance: 47.50
    Mounting hole 3 mm: 11.50
    Mounting hole 2 mm: 11.50
    Mounting hole 1 mm: 11.50
    Distance / back: 160.00
    Distance / front: 73.00
    Number / teeth: 11
    B+: M10
    Terminal 50: M5
    Gear type: GR
    Distance 2: 127.00
    Distance 3: 89.50
    Distance mm: 89.50
    Rotation: CW
    Total length mm: 317.00
    Drive type: Steel
    Product info: BN
    Number / mounting holes: 3 (0)

    Files

  • Suitable for these vehicles

    • OEM
      F032114277, RE500199, Re70475, RE70961, 228000-6570, 228000-6571, 228000-6572, 501354, 501407, 501424, 502077

    • Normalised article numbler
      cst40637, dsn2020, f032114277, re500199, re70475, re70961, s6385s, 18458n, 254611, 455108, 501354, 501407, 501424, 502077, 2280006570, 2280006571, 2280006572
