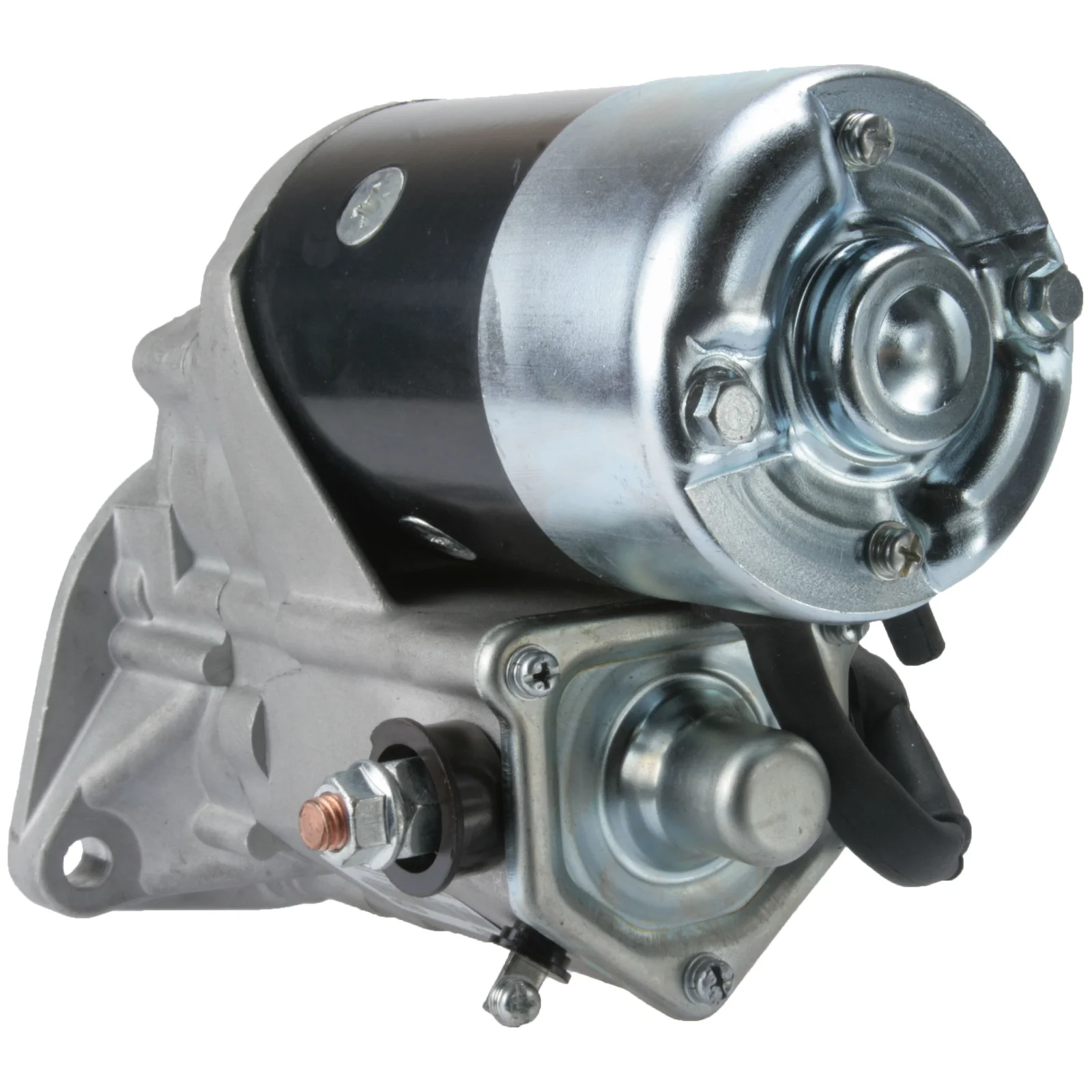

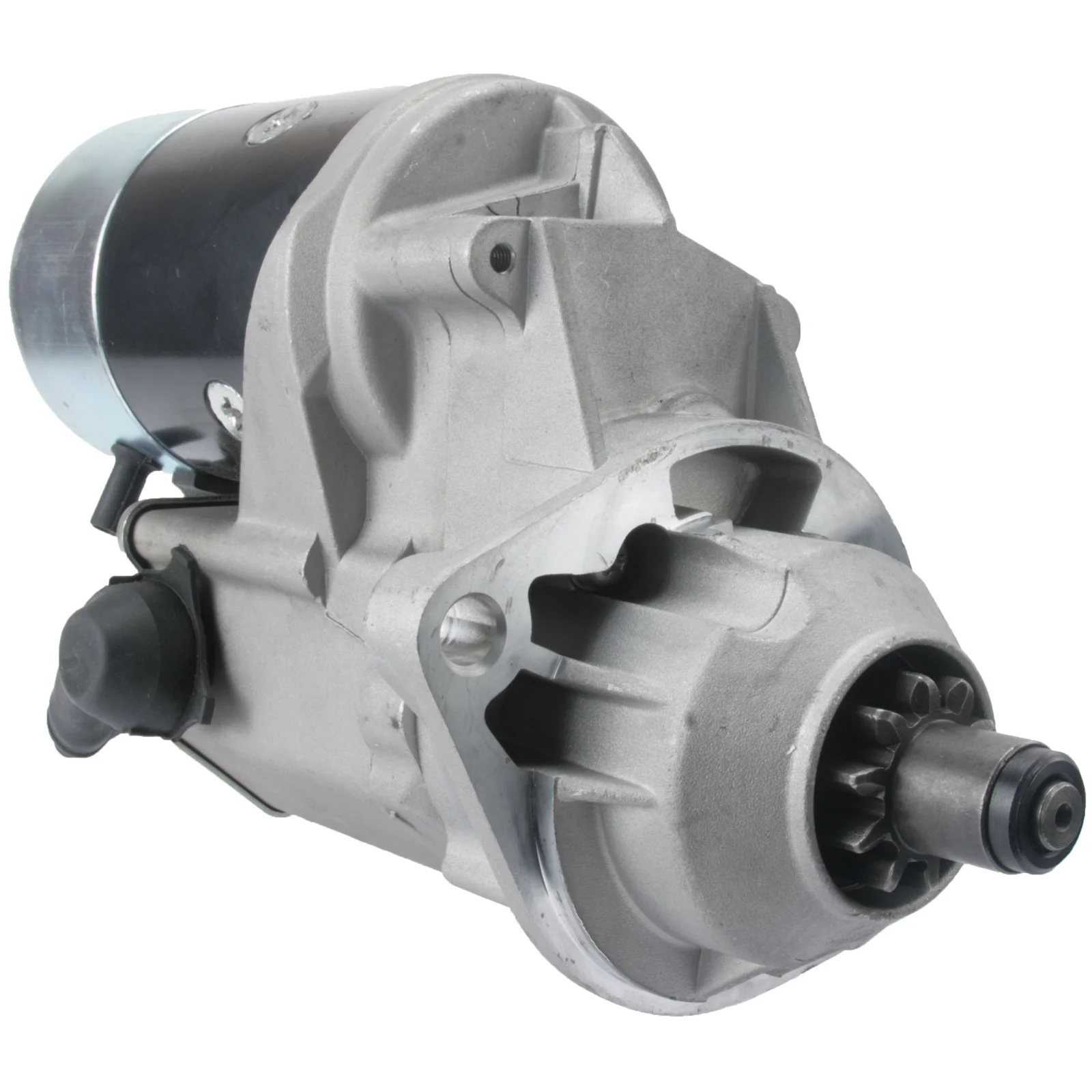

HC-Cargo Starter motor
HC-Cargo Starter motor
Article no.: F032114282

HC-Cargo Starter motor

Technical info:

Voltage: 24, kW: 4.5, No./teeth: 10, Rotation: CW

Description

Voltage: 24
kW: 4.5
Mount. flange: 88.50
Drive dist.: 48.00
Mount. hole 2 mm: 11.00
Mount. hole 1 mm: 11.00
Dist./back: 161.00
Dist./front: 75.00
No./teeth: 10
B+: M10
Position/B+: 45
Position/50: 37
Terminal 50: M5
Gear type: GR
Dist. mm: 127.00
Rotation: CW
Total length mm: 298.00
Drive type: Steel
Prod. info: BN
No./mount. holes: 2 (0)

Files

  • OEM
    F032114282, 228000-7900, 228000-7901, 228000-7902, 228000-7903, 228080-0633, 3934119, 3957593, 3970101

  • Normalised article numbler
    drs0357, dsn2041, f032114282, s6190, 18548n, 105536, 255016, 455055, 3934119, 3957593, 3970101, 641510102, 685037104, 2280007900, 2280007901, 2280007902, 2280007903, 2280800633
  • Description
    Voltage: 24
    kW: 4.5
    Mount. flange: 88.50
    Drive dist.: 48.00
    Mount. hole 2 mm: 11.00
    Mount. hole 1 mm: 11.00
    Dist./back: 161.00
    Dist./front: 75.00
    No./teeth: 10
    B+: M10
    Position/B+: 45
    Position/50: 37
    Terminal 50: M5
    Gear type: GR
    Dist. mm: 127.00
    Rotation: CW
    Total length mm: 298.00
    Drive type: Steel
    Prod. info: BN
    No./mount. holes: 2 (0)

    Files

  • Suitable for these vehicles

    • OEM
      F032114282, 228000-7900, 228000-7901, 228000-7902, 228000-7903, 228080-0633, 3934119, 3957593, 3970101

    • Normalised article numbler
      drs0357, dsn2041, f032114282, s6190, 18548n, 105536, 255016, 455055, 3934119, 3957593, 3970101, 641510102, 685037104, 2280007900, 2280007901, 2280007902, 2280007903, 2280800633
