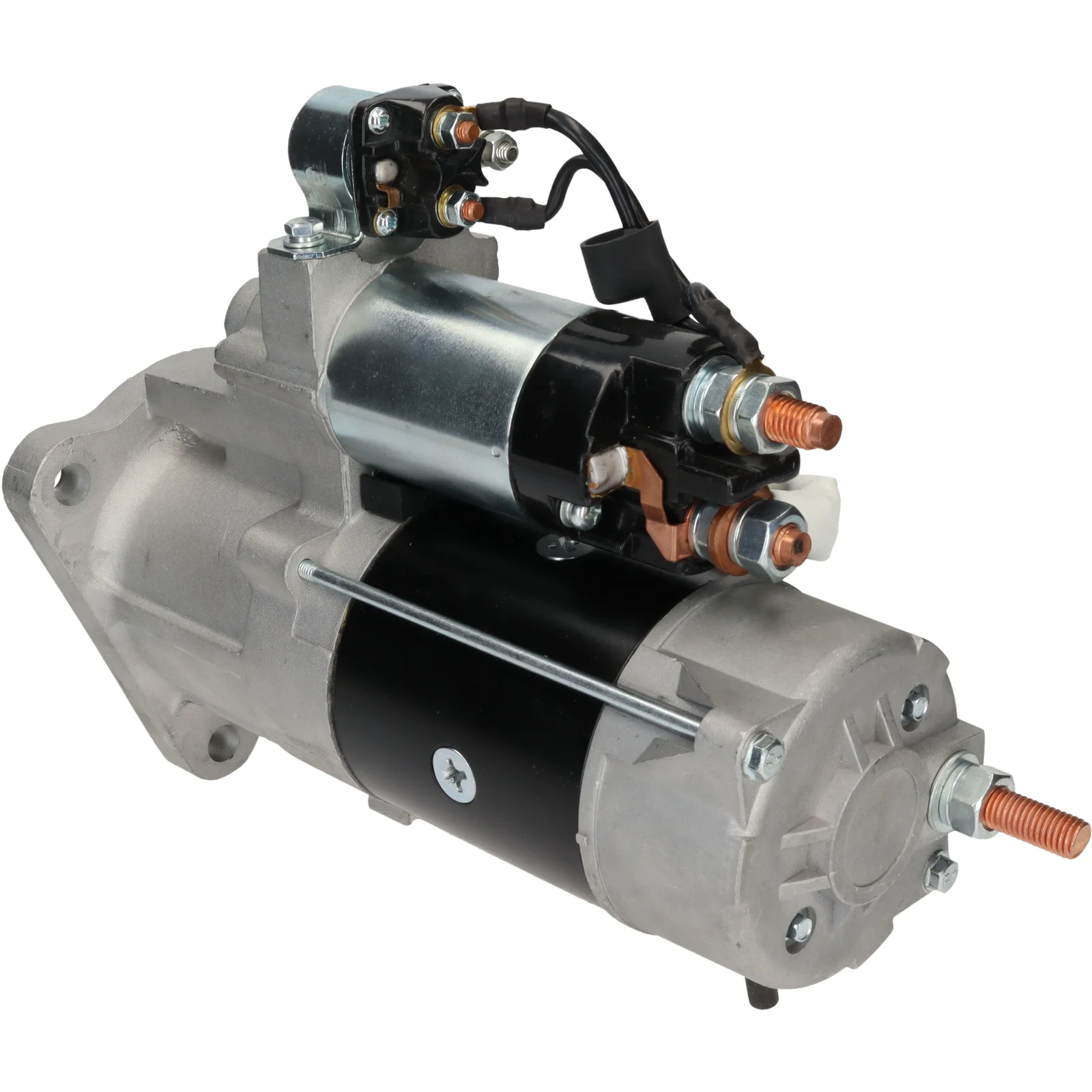

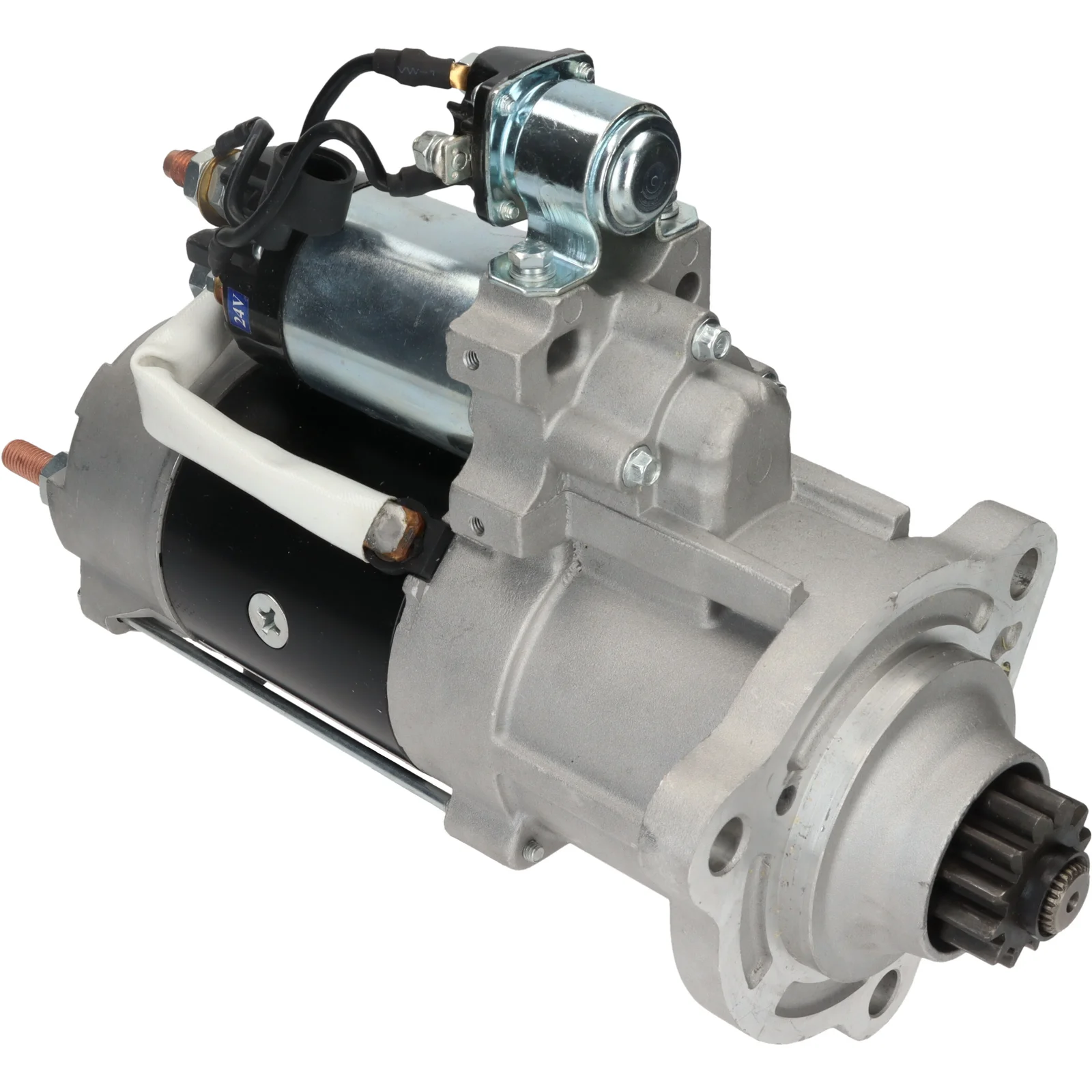

HC-Cargo Starter motor
HC-Cargo Starter motor
Article no.: F032114310

HC-Cargo Starter motor

Technical info:

Voltage: 24, kW: 7.0, No./teeth: 12, Rotation: CW

Description

Voltage: 24
kW: 7.0
Mounting flange: 92.00
Drive distance: 47.00
Mounting hole 3 mm: 13.50
Mounting hole 2 mm: 13.50
Mounting hole 1 mm: 13.50
Distance / back: 291.00
Distance / front: 55.00
Number / teeth: 12
B+: M12
Position / B+: 60
Thread length mm: 21.50
Position / 50: 15
Terminal 50: M5
Gear type: GR
Distance 2: 126.00
Distance 3: 126.00
Distance mm: 126.00
Rotation: CW
Position / B-: 17
B-: M12
Total length mm: 380.00
Drive type: Steel
Production info: BN
Number / mounting holes: 3 (0)

Files

  • OEM
    cs1451, F032114310, M009T82173, M009T82174, M009T82671, M009T82672, M9T82173, M9T82174, m9t82671, M9T82672, 0001330057, 11129448, 17233221, 20450305, 20732404, 23288365, 85000295, 85000526

  • Normalised article numbler
    cs1451, cst10822, cst35632, drs0319, drs0319x, drs0956, f032114310, f042001211, f042s01211, lrs02297, m009t82173, m009t82174, m009t82671, m009t82672, m9t82173, m9t82174, m9t82671, m9t82672, mitm9t82671, s0675s, s5149, str71230, str7952, 8ea012586221, 8ea738259141, 19831n, 101451, 107136, 203061, 220570, 220570a, 222012, 453468, 460259, 0001330057, 11024690, 11040877, 11129448, 17233221, 20450305, 20732404, 23288365, 85000295, 85000526, 638051124, 811536123, 0986024990
  • Description
    Voltage: 24
    kW: 7.0
    Mounting flange: 92.00
    Drive distance: 47.00
    Mounting hole 3 mm: 13.50
    Mounting hole 2 mm: 13.50
    Mounting hole 1 mm: 13.50
    Distance / back: 291.00
    Distance / front: 55.00
    Number / teeth: 12
    B+: M12
    Position / B+: 60
    Thread length mm: 21.50
    Position / 50: 15
    Terminal 50: M5
    Gear type: GR
    Distance 2: 126.00
    Distance 3: 126.00
    Distance mm: 126.00
    Rotation: CW
    Position / B-: 17
    B-: M12
    Total length mm: 380.00
    Drive type: Steel
    Production info: BN
    Number / mounting holes: 3 (0)

    Files

  • Suitable for these vehicles

    • OEM
      cs1451, F032114310, M009T82173, M009T82174, M009T82671, M009T82672, M9T82173, M9T82174, m9t82671, M9T82672, 0001330057, 11129448, 17233221, 20450305, 20732404, 23288365, 85000295, 85000526

    • Normalised article numbler
      cs1451, cst10822, cst35632, drs0319, drs0319x, drs0956, f032114310, f042001211, f042s01211, lrs02297, m009t82173, m009t82174, m009t82671, m009t82672, m9t82173, m9t82174, m9t82671, m9t82672, mitm9t82671, s0675s, s5149, str71230, str7952, 8ea012586221, 8ea738259141, 19831n, 101451, 107136, 203061, 220570, 220570a, 222012, 453468, 460259, 0001330057, 11024690, 11040877, 11129448, 17233221, 20450305, 20732404, 23288365, 85000295, 85000526, 638051124, 811536123, 0986024990
