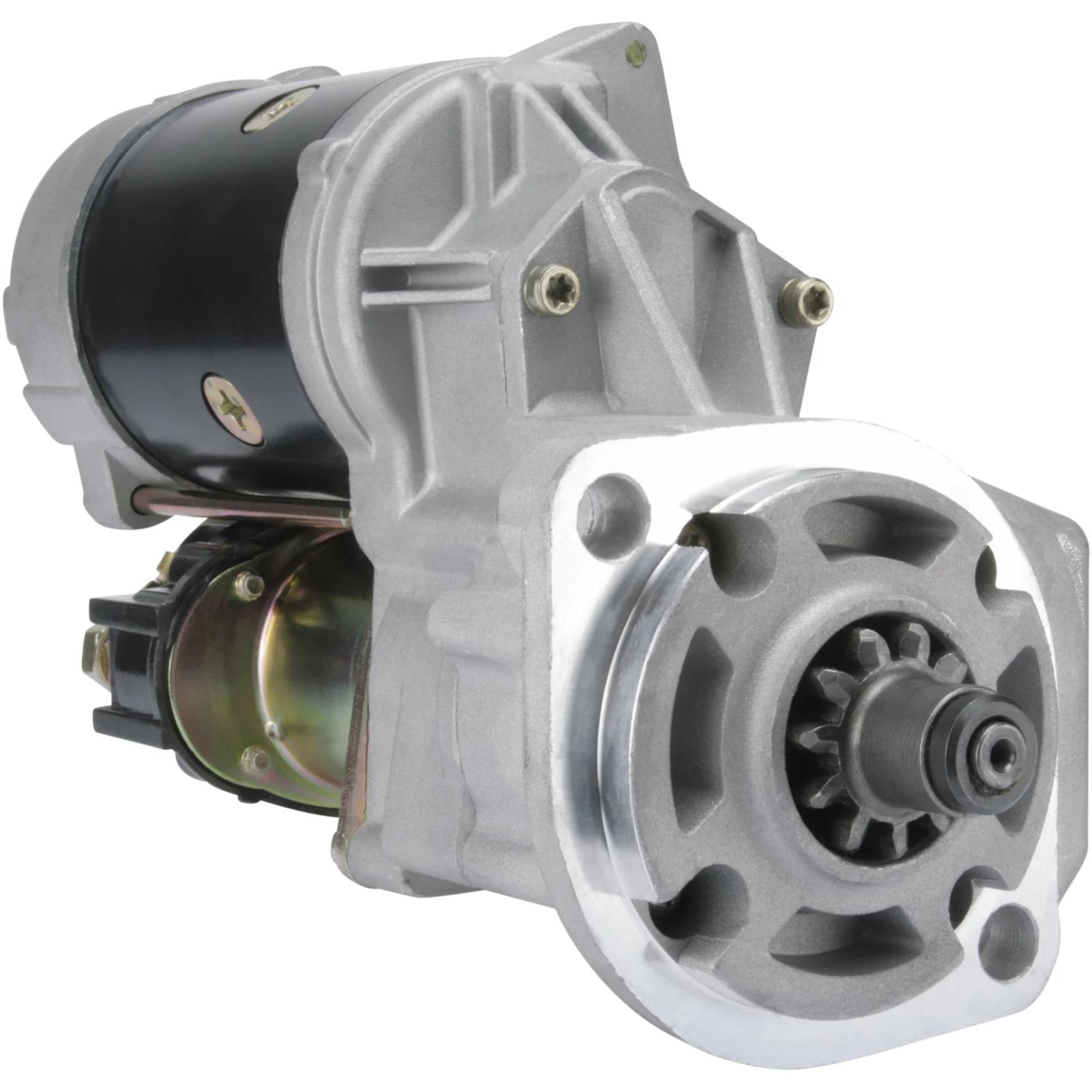

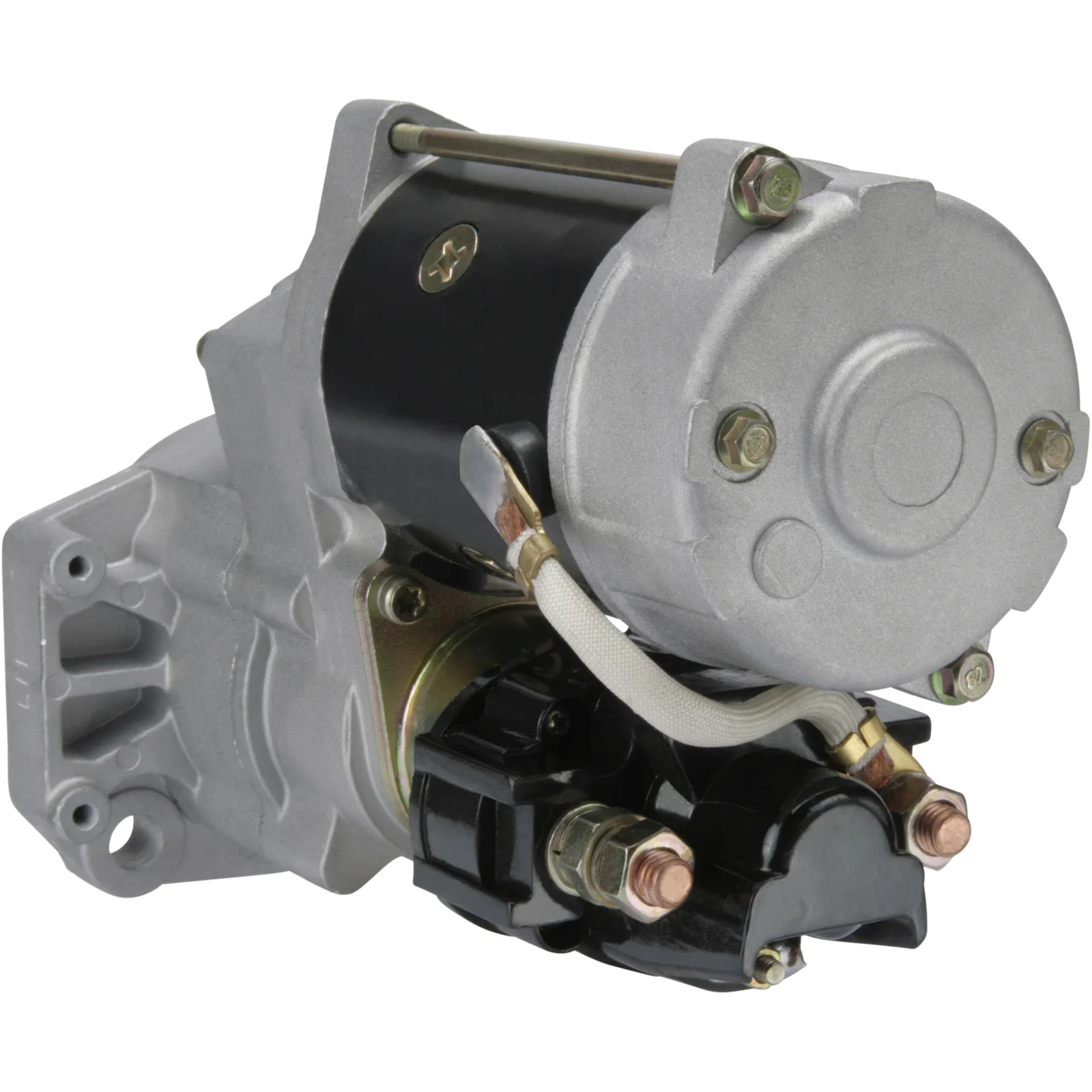

HC-Cargo Starter motor
HC-Cargo Starter motor
Article no.: F032114324

HC-Cargo Starter motor

Technical info:

Voltage: 24, kW: 4.5, No./teeth: 11, Rotation: CW

Description

Voltage: 24
kW: 4.5
Mounting flange: 95.00
Drive distance: 20.00
Mounting hole 2 mm: 13.20
Mounting hole 1 mm: 13.20
Distance / back: 227.00
Distance / front: 45.00
Number / teeth: 11
B+: M10
Position / 50: 30
Terminal 50: M5
Gear type: GR
Distance in millimeters: 120.00
Rotation: CW
Total length in millimeters: 290.00
Number / mounting holes: 2 (0)

Files

  • OEM
    0-24000-3120, 0-24000-3122, 0-24000-3123, 0-24000-3250, 0-24000-3251, F032114324, 02243003, 8972202970, 8972202971, 8972202972, 8972202974, 8980620410

  • Normalised article numbler
    f032114324, s9164, 19870n, 02243003, 11040802, 0240003120, 0240003122, 0240003123, 0240003250, 0240003251, 8972202970, 8972202971, 8972202972, 8972202974, 8980620410
  • Description
    Voltage: 24
    kW: 4.5
    Mounting flange: 95.00
    Drive distance: 20.00
    Mounting hole 2 mm: 13.20
    Mounting hole 1 mm: 13.20
    Distance / back: 227.00
    Distance / front: 45.00
    Number / teeth: 11
    B+: M10
    Position / 50: 30
    Terminal 50: M5
    Gear type: GR
    Distance in millimeters: 120.00
    Rotation: CW
    Total length in millimeters: 290.00
    Number / mounting holes: 2 (0)

    Files

  • Suitable for these vehicles

    • OEM
      0-24000-3120, 0-24000-3122, 0-24000-3123, 0-24000-3250, 0-24000-3251, F032114324, 02243003, 8972202970, 8972202971, 8972202972, 8972202974, 8980620410

    • Normalised article numbler
      f032114324, s9164, 19870n, 02243003, 11040802, 0240003120, 0240003122, 0240003123, 0240003250, 0240003251, 8972202970, 8972202971, 8972202972, 8972202974, 8980620410
