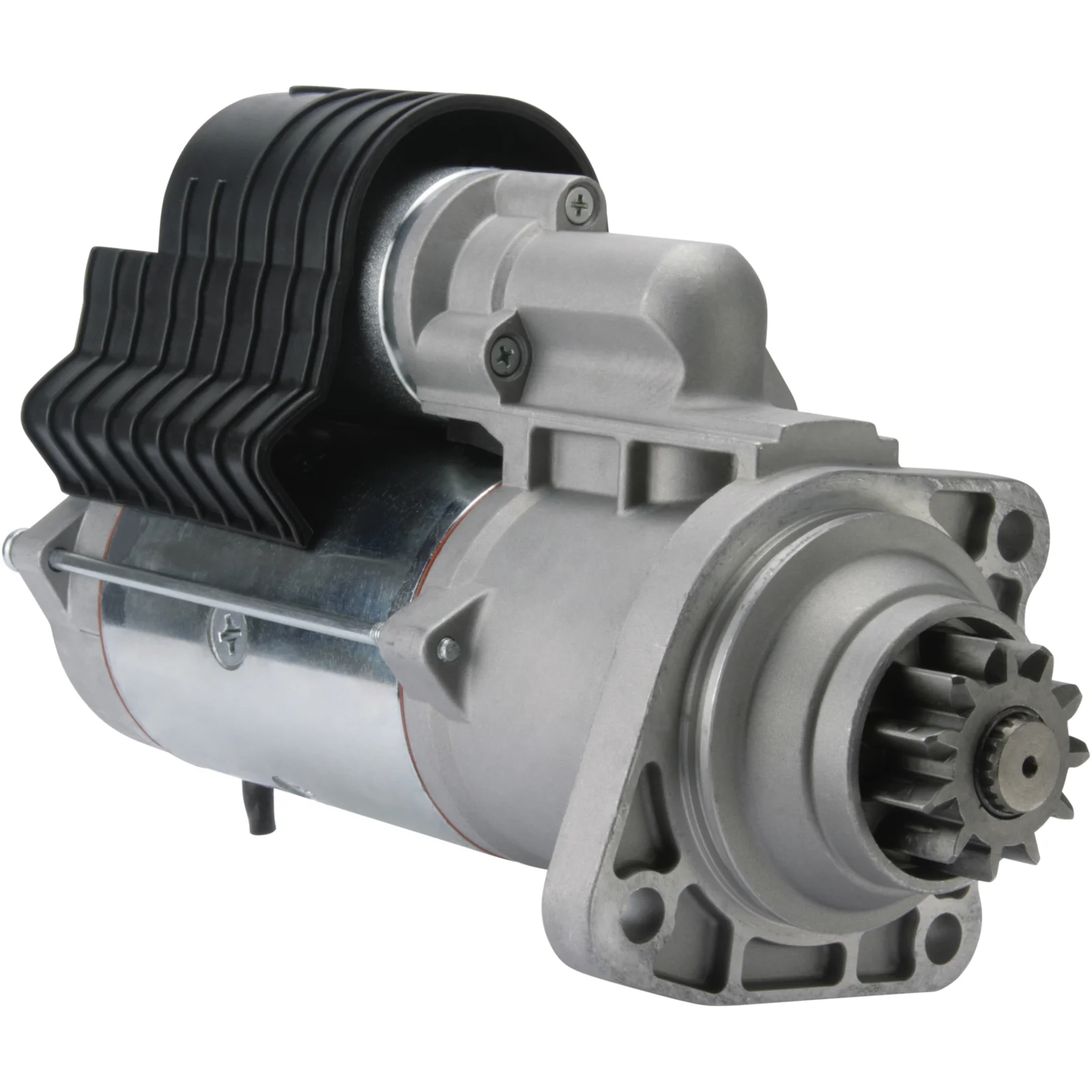

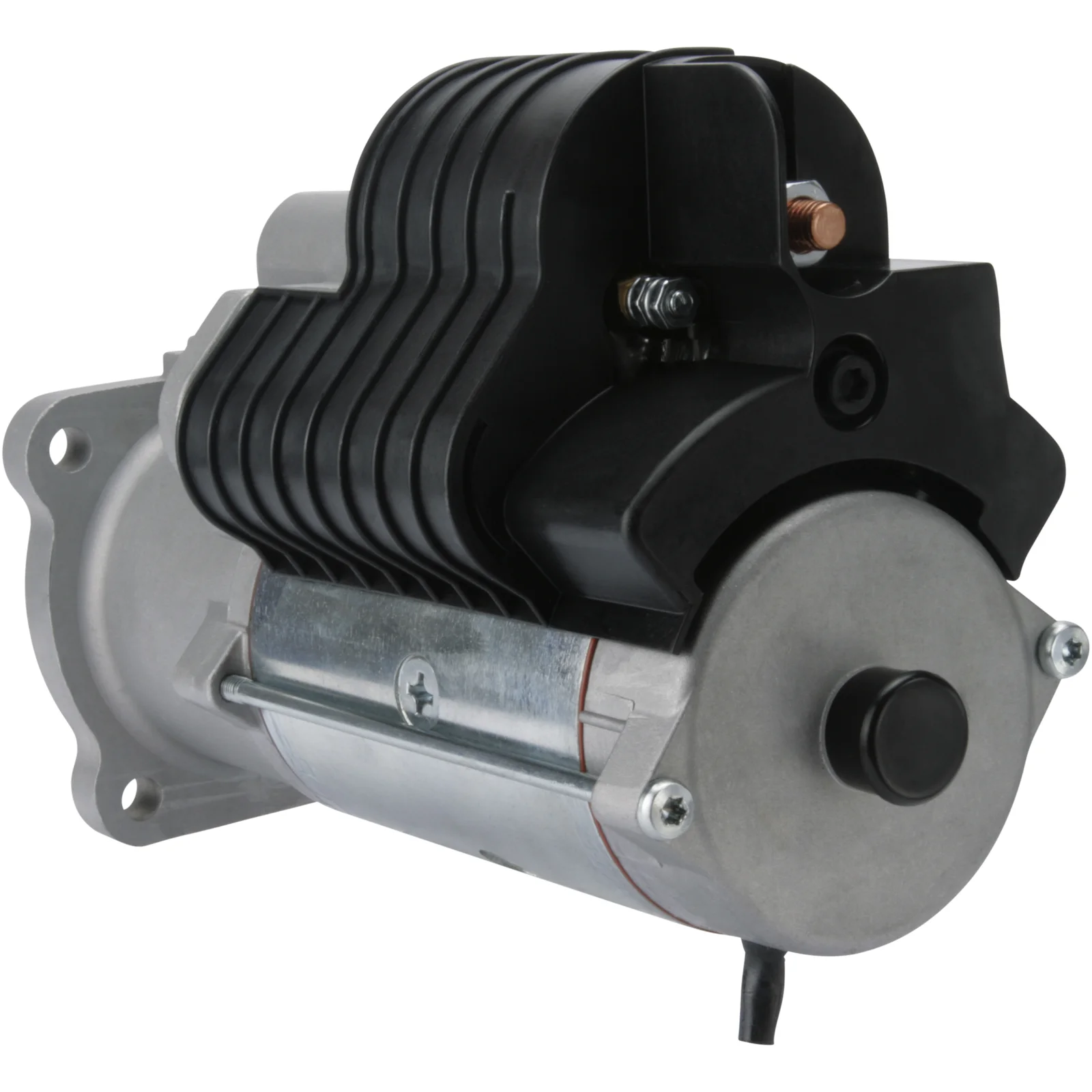

HC-Cargo Starter motor
HC-Cargo Starter motor
Article no.: F032114327

HC-Cargo Starter motor

Technical info:

Voltage: 24, kW: 5.5, No./teeth: 11, Rotation: CW

Description

Voltage: 24
kW: 5.5
Mounting flange: 89.00
Drive distance: 48.00
Mounting hole 3 mm: 10.80
Mounting hole 2 mm: 10.80
Mounting hole 1 mm: 10.80
Distance / back: 254.50
Distance / front: 52.50
Number / teeth: 11
B+: M10
Position / B+: 60
Position / 50: 45
Terminal 50: M6
Gear type: GR
Distance 2: 90.00
Distance 3: 127.00
Distance mm: 90.00
Rotation: CW
Total length mm: 320.00
Prod. info: BN
Number / mounting holes: 3 (0)

Files

  • OEM
    F032114327, 0001241008, 0001241012, 0001261016, 612600090293, 612600090561, 612630030011

  • Normalised article numbler
    cst10803, f032114327, f042002136, f042002154, f042s02136, les0408, ms0741, ms744, s0086, s0255, str2412, 30153n, 254213, 0001241008, 0001241012, 0001261016, 11090171, 612600090293, 612600090561, 612630030011
  • Description
    Voltage: 24
    kW: 5.5
    Mounting flange: 89.00
    Drive distance: 48.00
    Mounting hole 3 mm: 10.80
    Mounting hole 2 mm: 10.80
    Mounting hole 1 mm: 10.80
    Distance / back: 254.50
    Distance / front: 52.50
    Number / teeth: 11
    B+: M10
    Position / B+: 60
    Position / 50: 45
    Terminal 50: M6
    Gear type: GR
    Distance 2: 90.00
    Distance 3: 127.00
    Distance mm: 90.00
    Rotation: CW
    Total length mm: 320.00
    Prod. info: BN
    Number / mounting holes: 3 (0)

    Files

  • Suitable for these vehicles

    • OEM
      F032114327, 0001241008, 0001241012, 0001261016, 612600090293, 612600090561, 612630030011

    • Normalised article numbler
      cst10803, f032114327, f042002136, f042002154, f042s02136, les0408, ms0741, ms744, s0086, s0255, str2412, 30153n, 254213, 0001241008, 0001241012, 0001261016, 11090171, 612600090293, 612600090561, 612630030011
