HC-Cargo Starter motor
HC-Cargo Starter motor
Article no.: F032114340

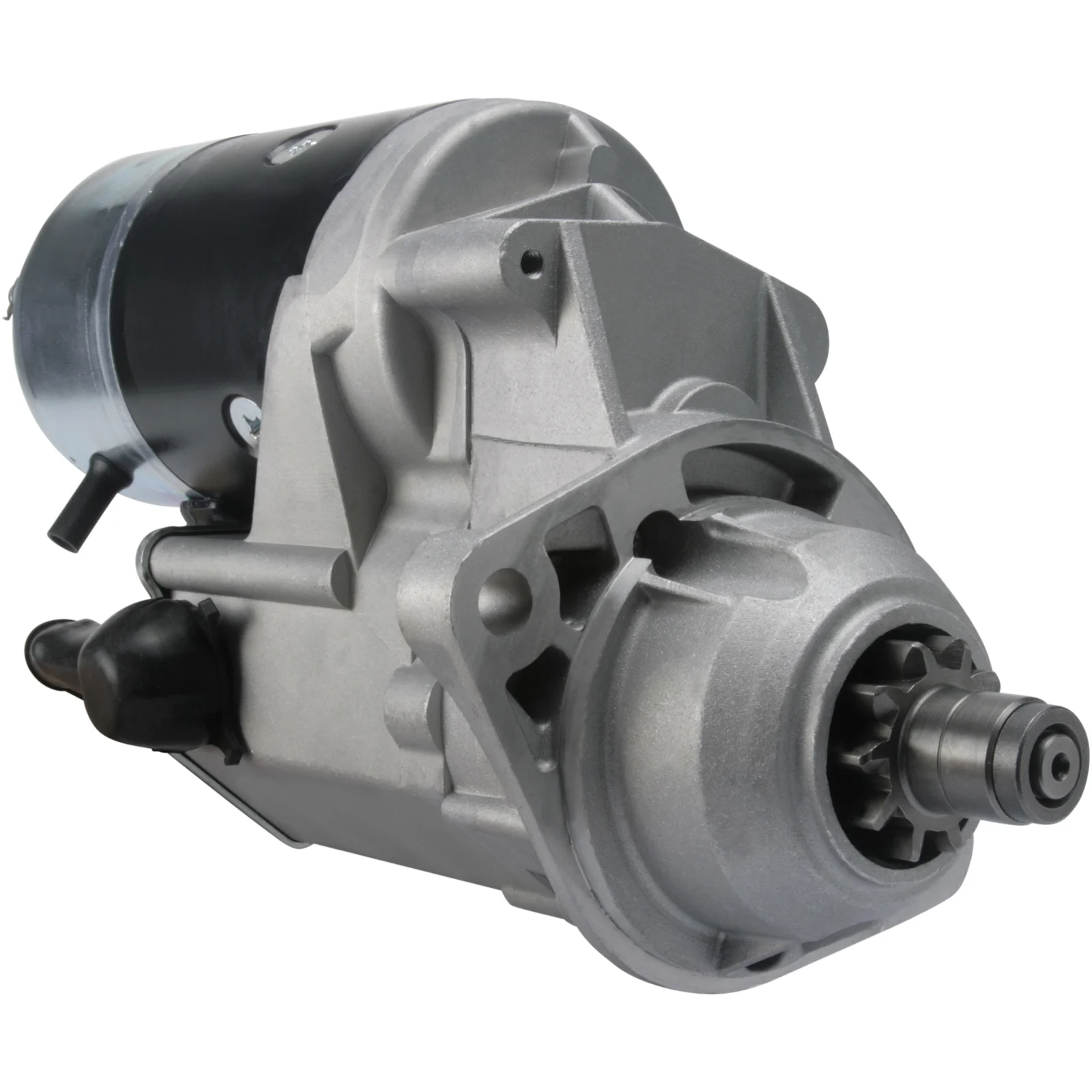

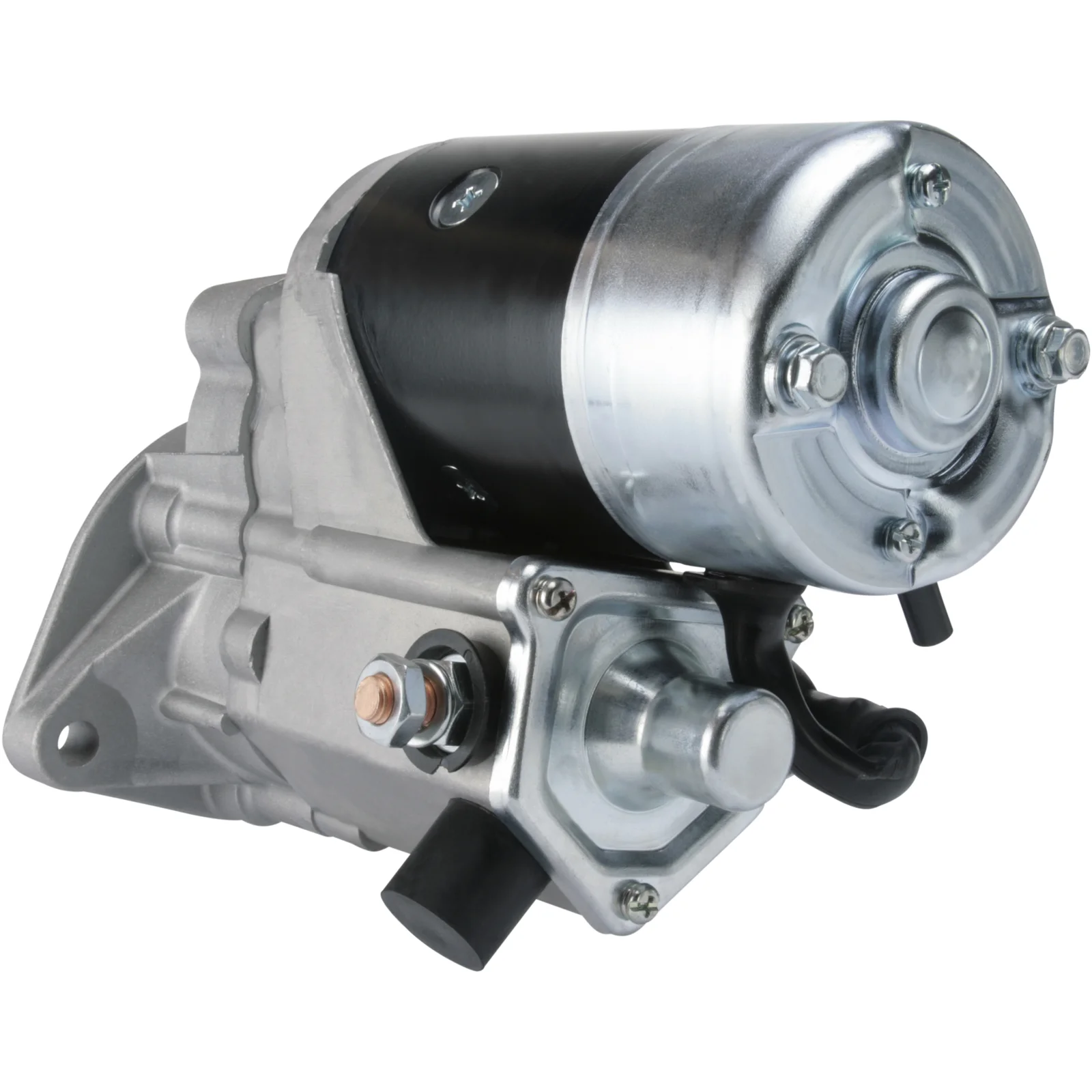

HC-Cargo Starter motor

Technical info:

Voltage: 24, kW: 4.5, No./teeth: 10, Rotation: CW

Description

Voltage: 24
kW: 4.5
Mounting flange: 88.50
Drive distance: 48.50
Mounting hole 2 mm: 11.00
Mounting hole 1 mm: 11.00
Distance from back: 160.00
Distance from front: 74.50
Number of teeth: 10
B+: M10
Position/B+: 45
Position/50: 37
Terminal 50: M5
Distance in millimeters: 127.00
Rotation: CW
Total length in millimeters: 289.00
Clutch type: Wet
Production info: BN
Oil sealed: No
Information: Not Insulated return.
Number of mounting holes: 2 (0)

Files

  • OEM
    F032114340, 600-863-4110, 600-863-4130, 600-863-4210, 673-181-2530, 673-381-6510, 673-382-6510, 228000-0630, 228000-0631, 228000-0632, 228000-0633, 228000-0651, 228000-1750, 228000-1751, 228000-1752, 228000-1753, 228000-4991, 228000-4992, 228000-6640, 228000-6670, 228000-6671, 228000-9330, 428000-1830, 3675248RX, 3863128, 3920644, 3922474, 3957592

  • Normalised article numbler
    cst40259, cst40616, drs0357, dsn2041, dsn2106, f032114340, f042000120, f042s00120, s6144, s6190, str6196, 18402n, 19846n, 254133, 454409, 3675248rx, 3863128, 3920644, 3922474, 3957592, 685034104, 2280000630, 2280000631, 2280000632, 2280000633, 2280000651, 2280001750, 2280001751, 2280001752, 2280001753, 2280004991, 2280004992, 2280006640, 2280006670, 2280006671, 2280009330, 4280001830, 6008634110, 6008634130, 6008634210, 6731812530, 6733816510, 6733826510
  • Description
    Voltage: 24
    kW: 4.5
    Mounting flange: 88.50
    Drive distance: 48.50
    Mounting hole 2 mm: 11.00
    Mounting hole 1 mm: 11.00
    Distance from back: 160.00
    Distance from front: 74.50
    Number of teeth: 10
    B+: M10
    Position/B+: 45
    Position/50: 37
    Terminal 50: M5
    Distance in millimeters: 127.00
    Rotation: CW
    Total length in millimeters: 289.00
    Clutch type: Wet
    Production info: BN
    Oil sealed: No
    Information: Not Insulated return.
    Number of mounting holes: 2 (0)

    Files

  • Suitable for these vehicles

    • OEM
      F032114340, 600-863-4110, 600-863-4130, 600-863-4210, 673-181-2530, 673-381-6510, 673-382-6510, 228000-0630, 228000-0631, 228000-0632, 228000-0633, 228000-0651, 228000-1750, 228000-1751, 228000-1752, 228000-1753, 228000-4991, 228000-4992, 228000-6640, 228000-6670, 228000-6671, 228000-9330, 428000-1830, 3675248RX, 3863128, 3920644, 3922474, 3957592

    • Normalised article numbler
      cst40259, cst40616, drs0357, dsn2041, dsn2106, f032114340, f042000120, f042s00120, s6144, s6190, str6196, 18402n, 19846n, 254133, 454409, 3675248rx, 3863128, 3920644, 3922474, 3957592, 685034104, 2280000630, 2280000631, 2280000632, 2280000633, 2280000651, 2280001750, 2280001751, 2280001752, 2280001753, 2280004991, 2280004992, 2280006640, 2280006670, 2280006671, 2280009330, 4280001830, 6008634110, 6008634130, 6008634210, 6731812530, 6733816510, 6733826510
