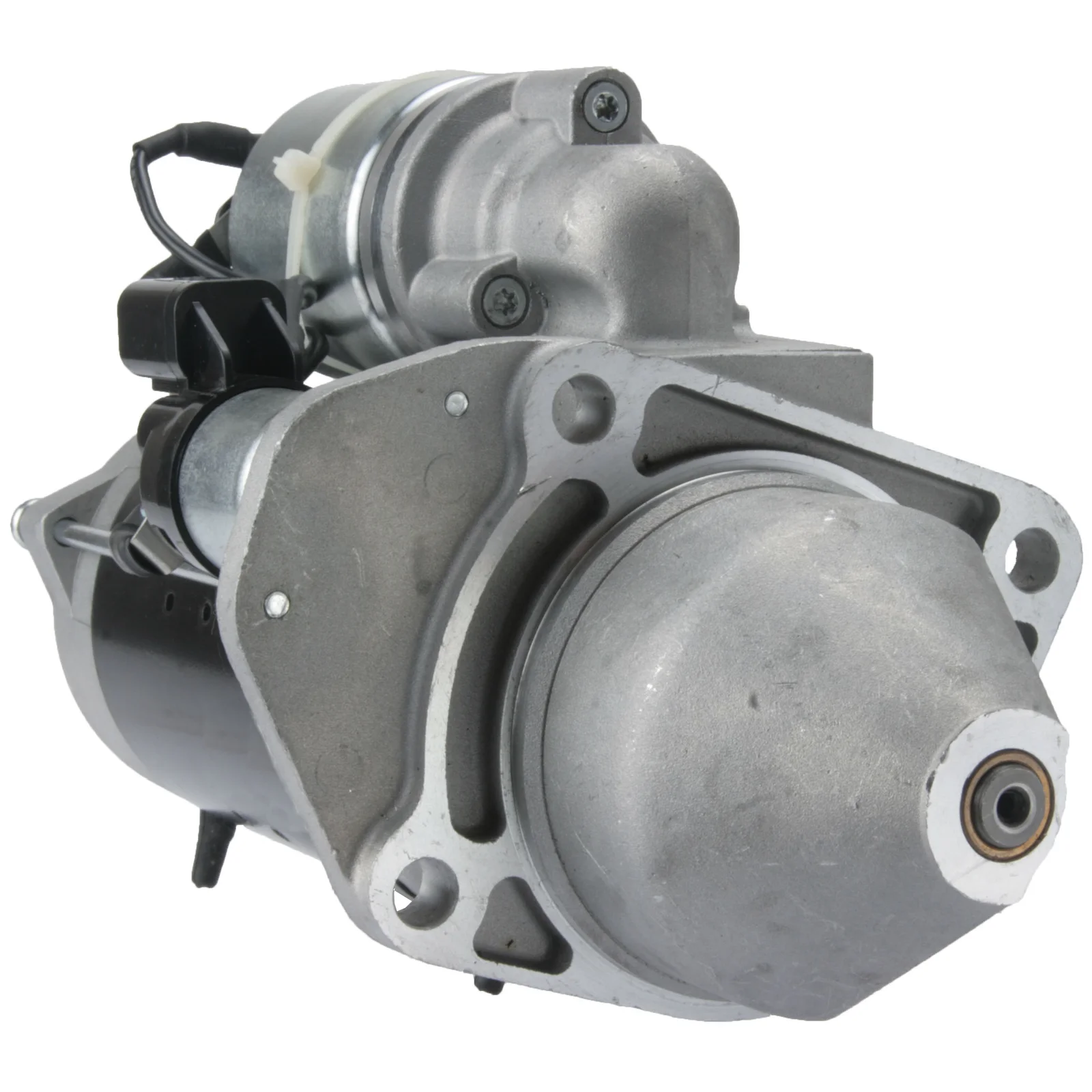

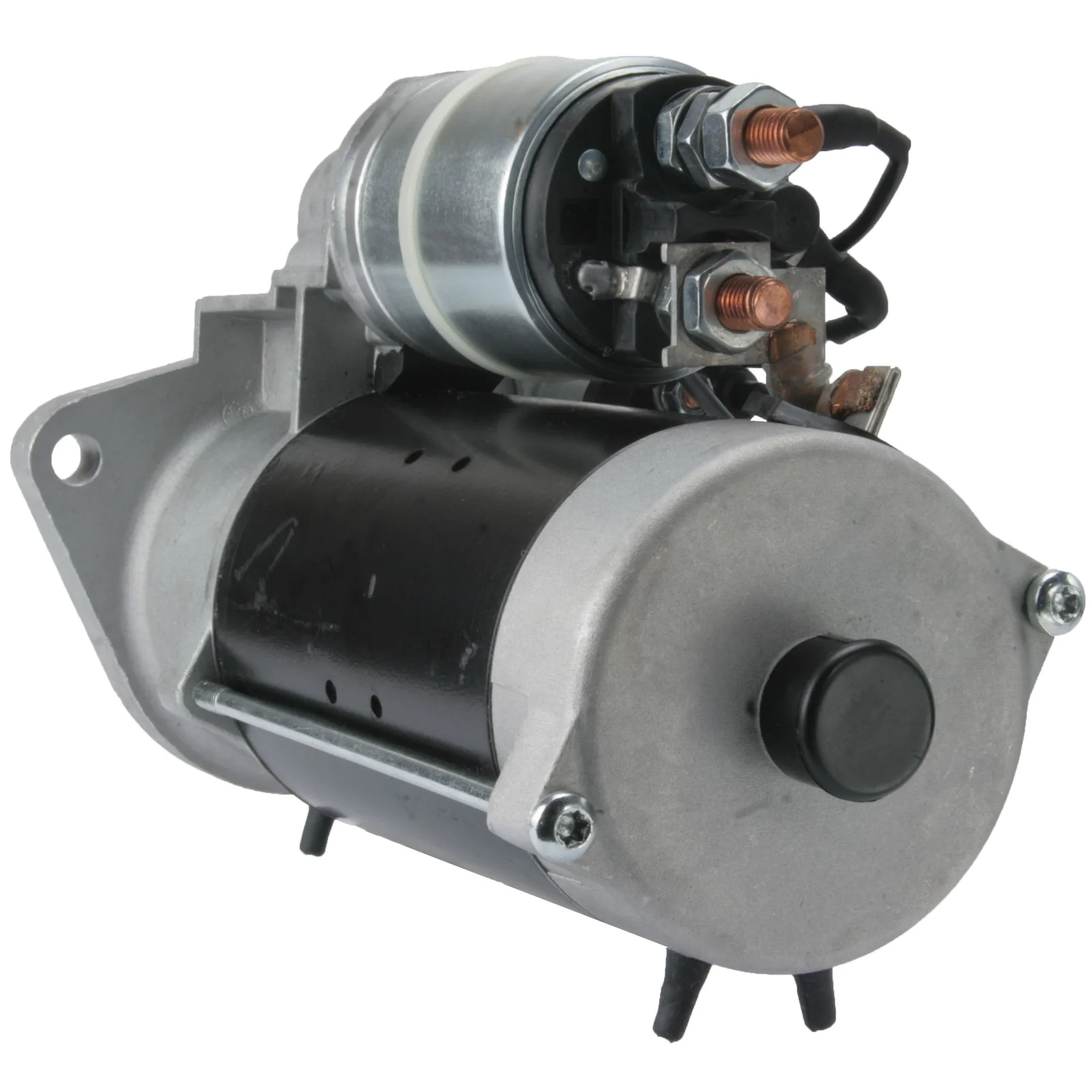

HC-Cargo Starter motor
HC-Cargo Starter motor
Article no.: F032114376

HC-Cargo Starter motor

Technical info:

Voltage: 24, kW: 4.0, No./teeth: 10, Rotation: CW

Description

Voltage: 24
kW: 4.0
Mount. flange: 89.00
Drive dist.: 29.00
Mount. hole 3 mm: 11.00
Mount. hole 2 mm: 11.00
Mount. hole 1 mm: 11.00
Dist./back: 221.50
Dist./front: 74.50
No./teeth: 10
B+: M10
Terminal 50: Plug
Gear type: GR
Dist. 2: 81.50
Dist. 3: 93.50
Dist. mm: 127.00
Rotation: CW
Total length mm: 311.50
Servicing: MAN
Remarks: w/ safety switch.
No./mount. holes: 3 (0)

Files

  • OEM
    F032114376, 51.26201-7223, 1986S10078, 860814, 0001231035

  • Normalised article numbler
    cst10719, drs0062, drs0062n, f032114376, is1261, lrs02621, ms424, s0181, 8ea012586321, 1986s10078, 30171n, 203065, 255024, 454294, 460263, 860814, 0001231035, 8823210, 11090148, 671008104, 0986023210, 51262017223
  • Description
    Voltage: 24
    kW: 4.0
    Mount. flange: 89.00
    Drive dist.: 29.00
    Mount. hole 3 mm: 11.00
    Mount. hole 2 mm: 11.00
    Mount. hole 1 mm: 11.00
    Dist./back: 221.50
    Dist./front: 74.50
    No./teeth: 10
    B+: M10
    Terminal 50: Plug
    Gear type: GR
    Dist. 2: 81.50
    Dist. 3: 93.50
    Dist. mm: 127.00
    Rotation: CW
    Total length mm: 311.50
    Servicing: MAN
    Remarks: w/ safety switch.
    No./mount. holes: 3 (0)

    Files

  • Suitable for these vehicles

    • OEM
      F032114376, 51.26201-7223, 1986S10078, 860814, 0001231035

    • Normalised article numbler
      cst10719, drs0062, drs0062n, f032114376, is1261, lrs02621, ms424, s0181, 8ea012586321, 1986s10078, 30171n, 203065, 255024, 454294, 460263, 860814, 0001231035, 8823210, 11090148, 671008104, 0986023210, 51262017223
