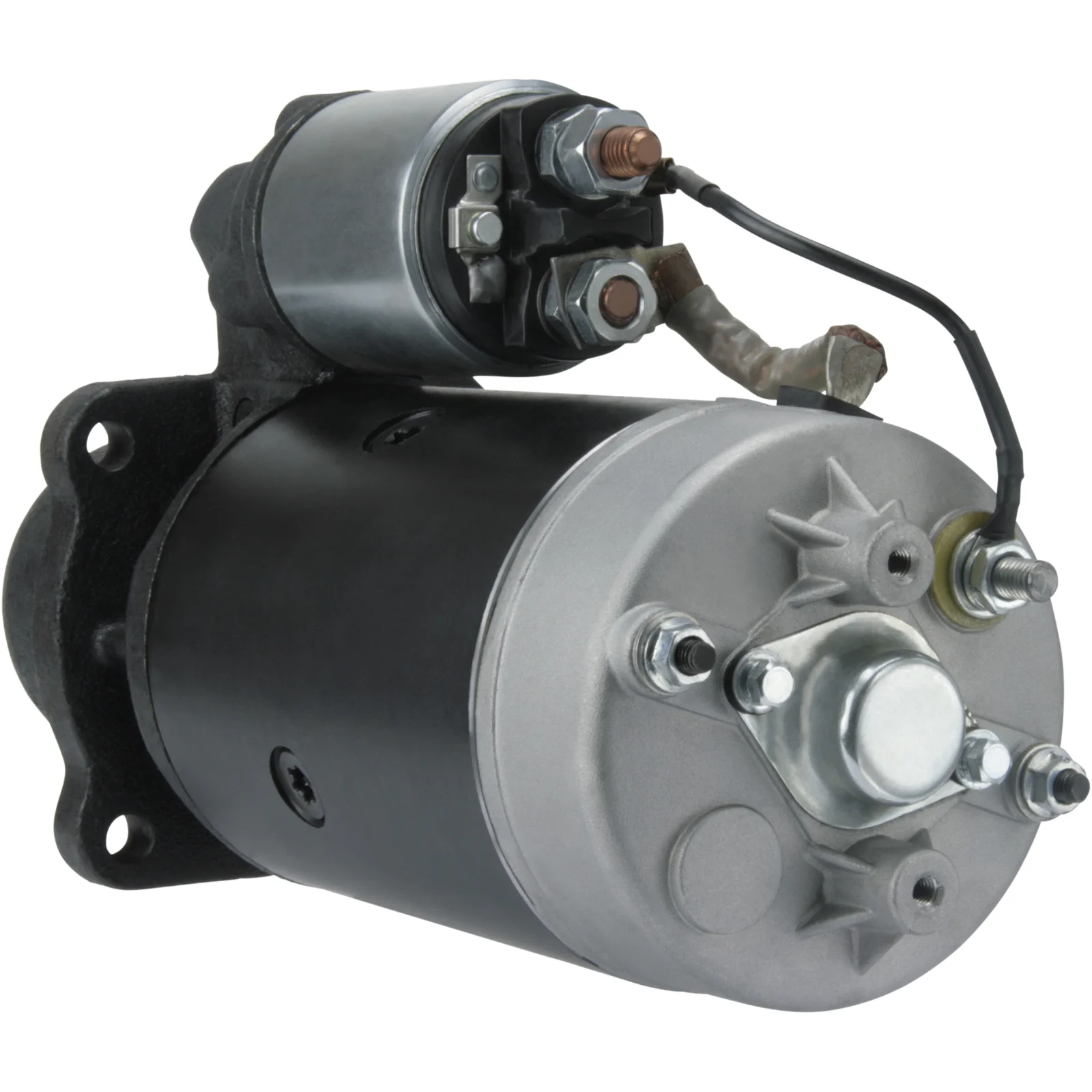

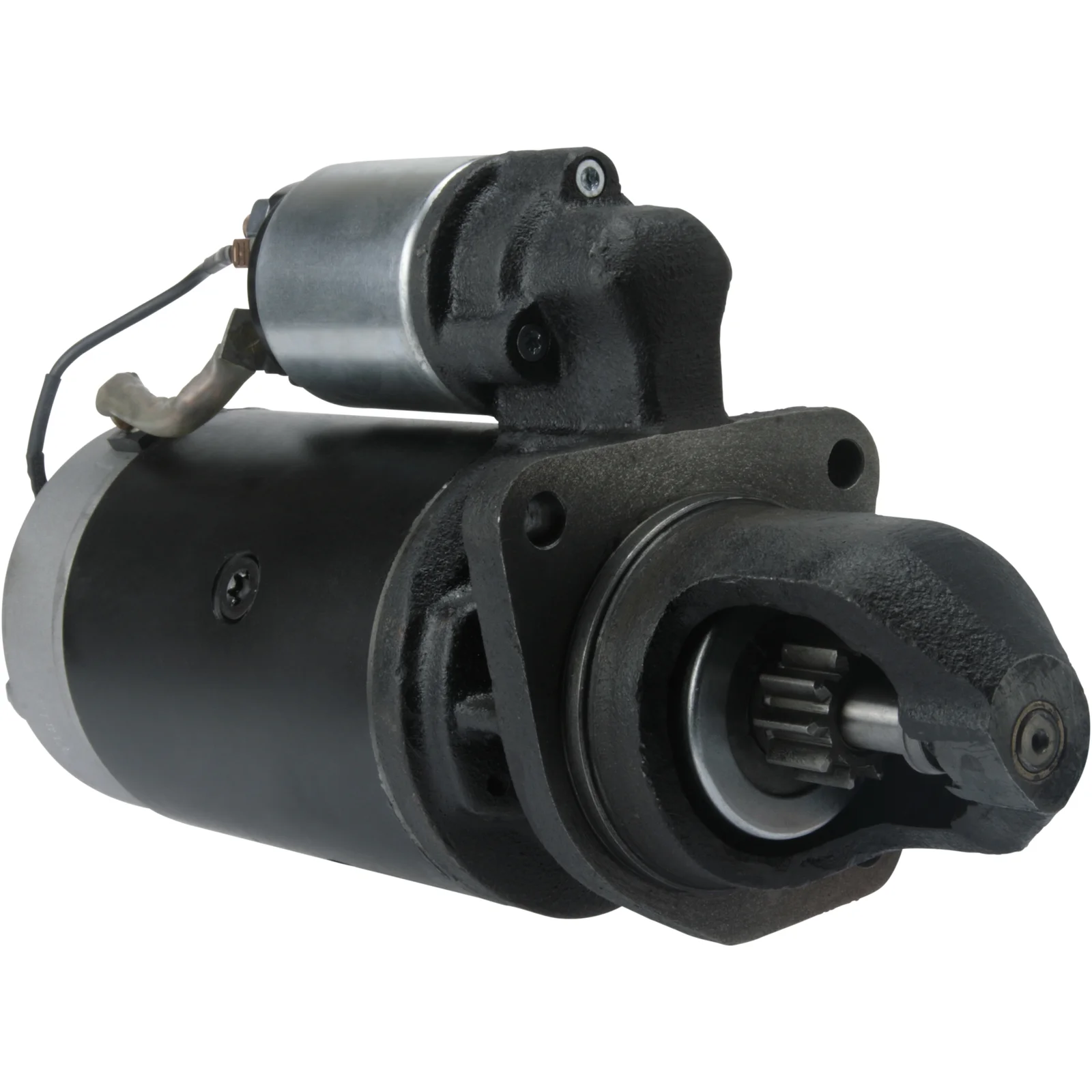

HC-Cargo Starter motor
HC-Cargo Starter motor
Article no.: F032114397

HC-Cargo Starter motor

Technical info:

Voltage: 24, kW: 4.0, No./teeth: 10, Rotation: CW

Description

Voltage: 24
kW: 4.0
Insulated return: Yes
Mount. flange: 89.00
Drive dist.: 48.00
Mount. hole 3 mm: 11.00
Mount. hole 2 mm: 11.00
Mount. hole 1 mm: 11.00
Dist./back: 237.00
Dist./front: 95.00
No./teeth: 10
B+: M10
Position/50: 45
Terminal 50: M4
Gear type: DD
Dist. 2: 127.00
Dist. 3: 90.00
Dist. mm: 90.00
Rotation: CW
Total length mm: 340.00
Drive type: Steel
Servicing: Cummins
No./mount. holes: 3 (0)

Files

  • OEM
    F032114397, 0001368067, 3283721, 19024294

  • Normalised article numbler
    cst10777, drs0315, f032114397, s0268, 105301, 254265, 0001368067, 3283721, 19024294, 20550103, 685014104, 701507103
  • Description
    Voltage: 24
    kW: 4.0
    Insulated return: Yes
    Mount. flange: 89.00
    Drive dist.: 48.00
    Mount. hole 3 mm: 11.00
    Mount. hole 2 mm: 11.00
    Mount. hole 1 mm: 11.00
    Dist./back: 237.00
    Dist./front: 95.00
    No./teeth: 10
    B+: M10
    Position/50: 45
    Terminal 50: M4
    Gear type: DD
    Dist. 2: 127.00
    Dist. 3: 90.00
    Dist. mm: 90.00
    Rotation: CW
    Total length mm: 340.00
    Drive type: Steel
    Servicing: Cummins
    No./mount. holes: 3 (0)

    Files

  • Suitable for these vehicles

    • OEM
      F032114397, 0001368067, 3283721, 19024294

    • Normalised article numbler
      cst10777, drs0315, f032114397, s0268, 105301, 254265, 0001368067, 3283721, 19024294, 20550103, 685014104, 701507103
