HC-Cargo Starter motor
HC-Cargo Starter motor
Article no.: F032114527

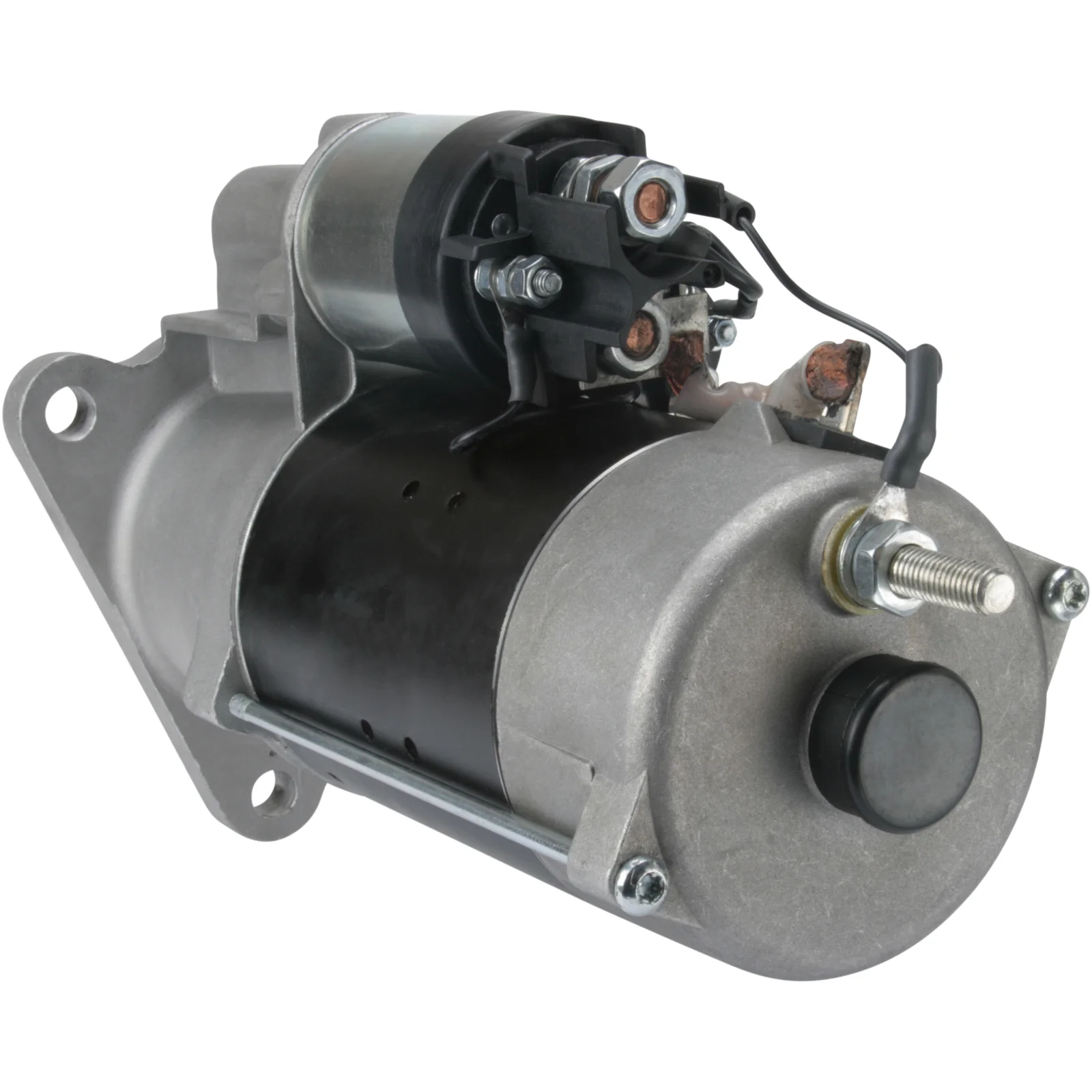

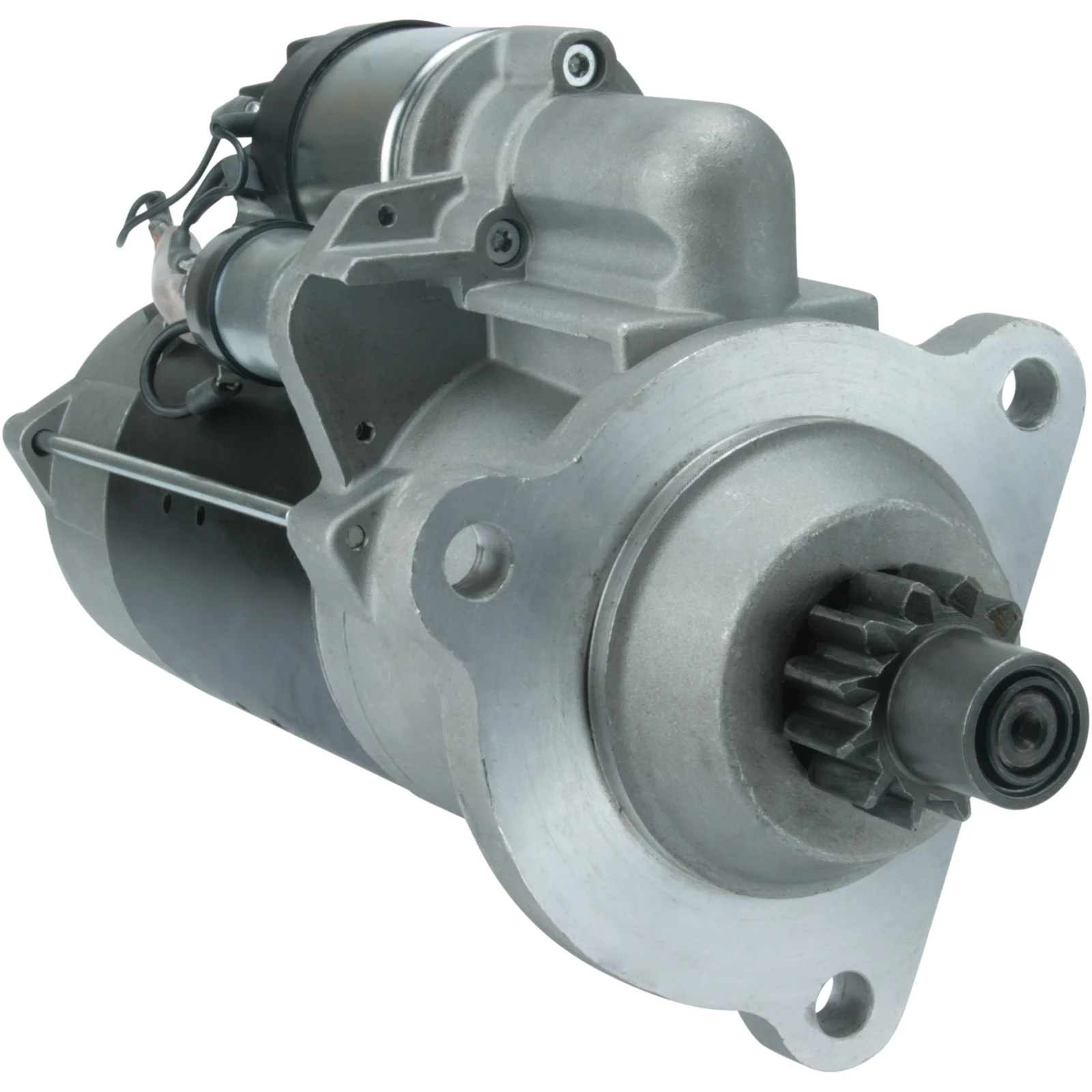

HC-Cargo Starter motor

Technical info:

Voltage: 24, kW: 6.0, No./teeth: 12, Rotation: CW

Description

Start 24V-7.0kW fits Penta 24V -7.0kW, CW, 12k, insulated Alternation: 91-605-4468 7.5kW Original Prestolite Electric. For Yourrex product order 91-605-2179

Voltage: 24
kW: 6.0
Insulated return: Yes
Mounting flange: 92.00
Drive distance: 48.00
Mounting hole 3 mm: 13.50
Mounting hole 2 mm: 13.50
Mounting hole 1 mm: 13.50
Distance / back: 270.00
Distance / front: 72.00
Number / teeth: 12
B+: M10
Position / 50: 45
Terminal 50: M6
Gear type: GR
Distance 2: 127.00
Distance 3: 127.00
Distance mm: 127.00
Rotation: CW
B-: M10
Total length mm: 385.00
Drive type: Steel
Product info: BN
Number / mounting holes: 3 (0)

Files

  • OEM
    F032114527, M9T-82179, M9T-84079, 0001 330 004, 874385, 0001330004, 3586798, 3801289, 3803838, 3827444

  • Normalised article numbler
    cst10723, drs0129, f032114527, m9t82179, m9t84079, 19820, 19820n, 254830, 874385, 0001330004, 3586798, 3801289, 3803838, 3827444
  • Description
    Start 24V-7.0kW fits Penta 24V -7.0kW, CW, 12k, insulated Alternation: 91-605-4468 7.5kW Original Prestolite Electric. For Yourrex product order 91-605-2179

    Voltage: 24
    kW: 6.0
    Insulated return: Yes
    Mounting flange: 92.00
    Drive distance: 48.00
    Mounting hole 3 mm: 13.50
    Mounting hole 2 mm: 13.50
    Mounting hole 1 mm: 13.50
    Distance / back: 270.00
    Distance / front: 72.00
    Number / teeth: 12
    B+: M10
    Position / 50: 45
    Terminal 50: M6
    Gear type: GR
    Distance 2: 127.00
    Distance 3: 127.00
    Distance mm: 127.00
    Rotation: CW
    B-: M10
    Total length mm: 385.00
    Drive type: Steel
    Product info: BN
    Number / mounting holes: 3 (0)

    Files

  • Suitable for these vehicles

    • OEM
      F032114527, M9T-82179, M9T-84079, 0001 330 004, 874385, 0001330004, 3586798, 3801289, 3803838, 3827444

    • Normalised article numbler
      cst10723, drs0129, f032114527, m9t82179, m9t84079, 19820, 19820n, 254830, 874385, 0001330004, 3586798, 3801289, 3803838, 3827444
