HC-Cargo Starter motor
HC-Cargo Starter motor
Article no.: F032114659

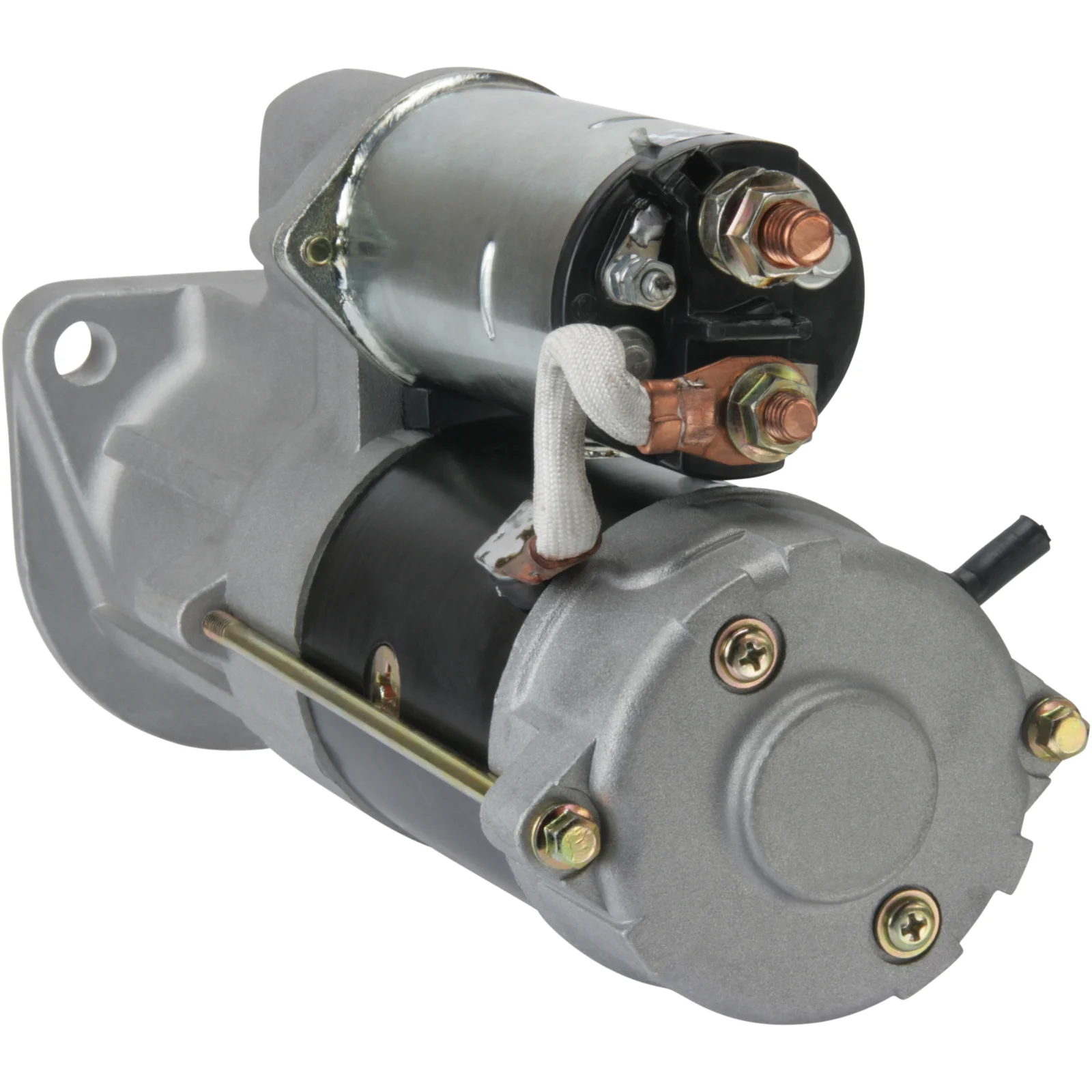

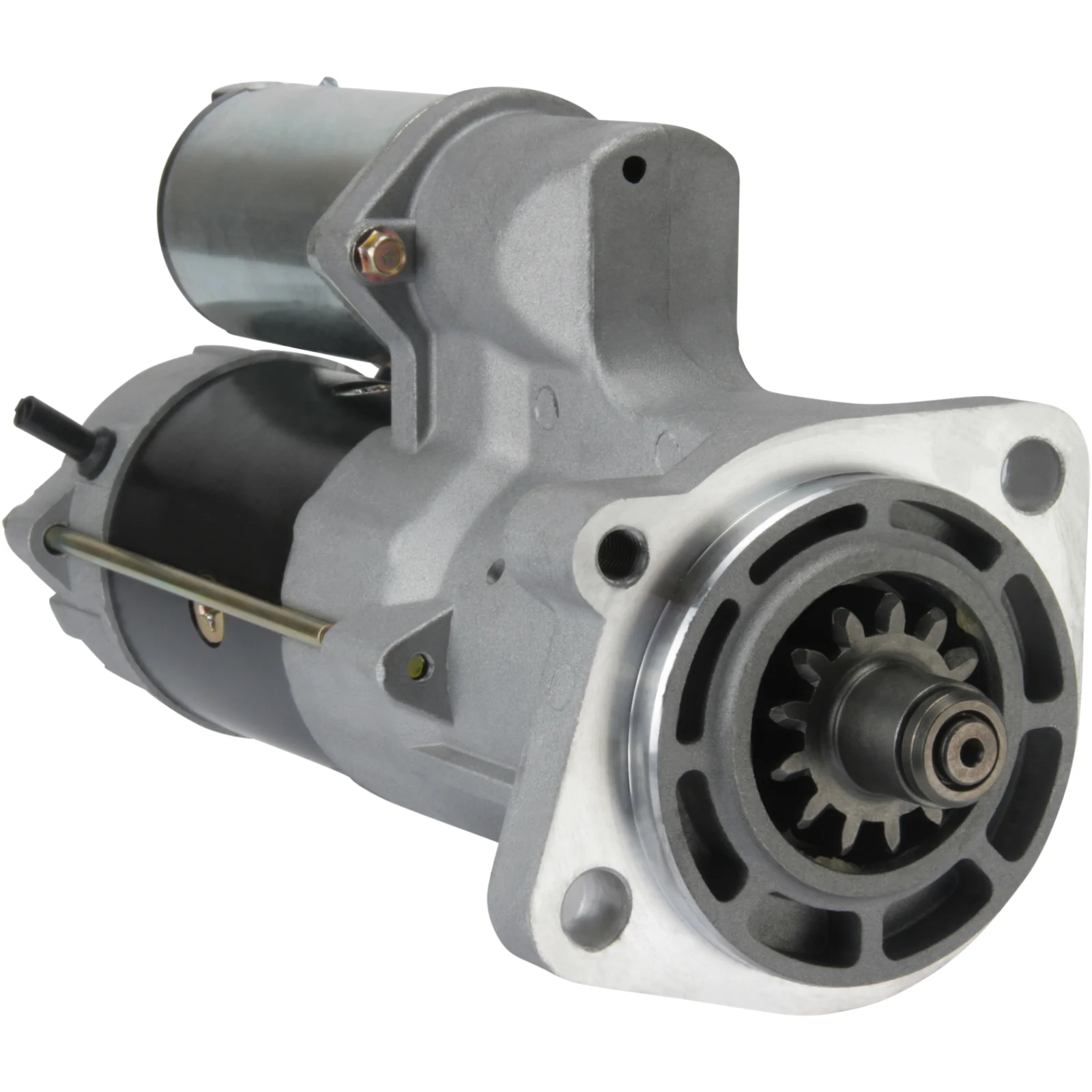

HC-Cargo Starter motor

Technical info:

Voltage: 24, kW: 5.0, No./teeth: 13, Rotation: CW

Description

Voltage: 24
kW: 5.0
Mounting flange: 90.00
Drive distance: 13.00
Mounting hole 3 mm: M10
Mounting hole 2 mm: 13.00
Mounting hole 1 mm: 13.00
Distance / back: 262.00
Distance / front: 38.00
Number / teeth: 13
B+: M10
Position / 50: 50
Terminal 50: M5
Gear type: GR
Distance 2: 60.50
Distance 3: 86.50
Distance mm: 112.50
Rotation: CW
Total length mm: 306.00
Drive type: Steel
Prod. info: BN
Number / mounting holes: 3 (1)

Files

  • OEM
    0-24000-0148, 0-24000-0168, 0-24000-0178, F032114659, 8980540630, 8980703211

  • Normalised article numbler
    cst50621, f032114659, s9068, 19763n, 220631, 220631a, 254564, 454429, 11040803, 0240000148, 0240000168, 0240000178, 643068134, 8980540630, 8980703211
  • Description
    Voltage: 24
    kW: 5.0
    Mounting flange: 90.00
    Drive distance: 13.00
    Mounting hole 3 mm: M10
    Mounting hole 2 mm: 13.00
    Mounting hole 1 mm: 13.00
    Distance / back: 262.00
    Distance / front: 38.00
    Number / teeth: 13
    B+: M10
    Position / 50: 50
    Terminal 50: M5
    Gear type: GR
    Distance 2: 60.50
    Distance 3: 86.50
    Distance mm: 112.50
    Rotation: CW
    Total length mm: 306.00
    Drive type: Steel
    Prod. info: BN
    Number / mounting holes: 3 (1)

    Files

  • Suitable for these vehicles

    • OEM
      0-24000-0148, 0-24000-0168, 0-24000-0178, F032114659, 8980540630, 8980703211

    • Normalised article numbler
      cst50621, f032114659, s9068, 19763n, 220631, 220631a, 254564, 454429, 11040803, 0240000148, 0240000168, 0240000178, 643068134, 8980540630, 8980703211
