HC-Cargo Starter motor
HC-Cargo Starter motor
Article no.: F032115464

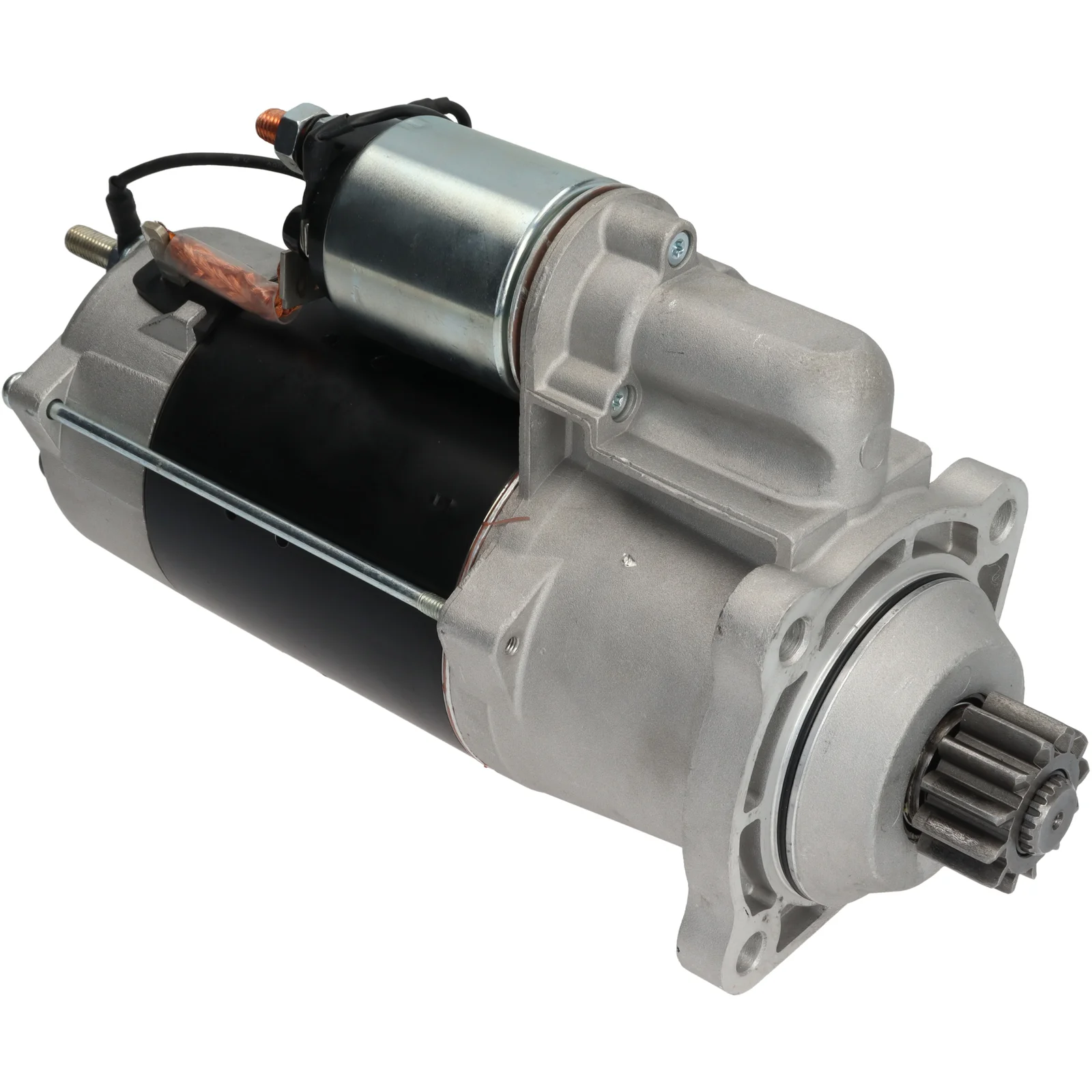

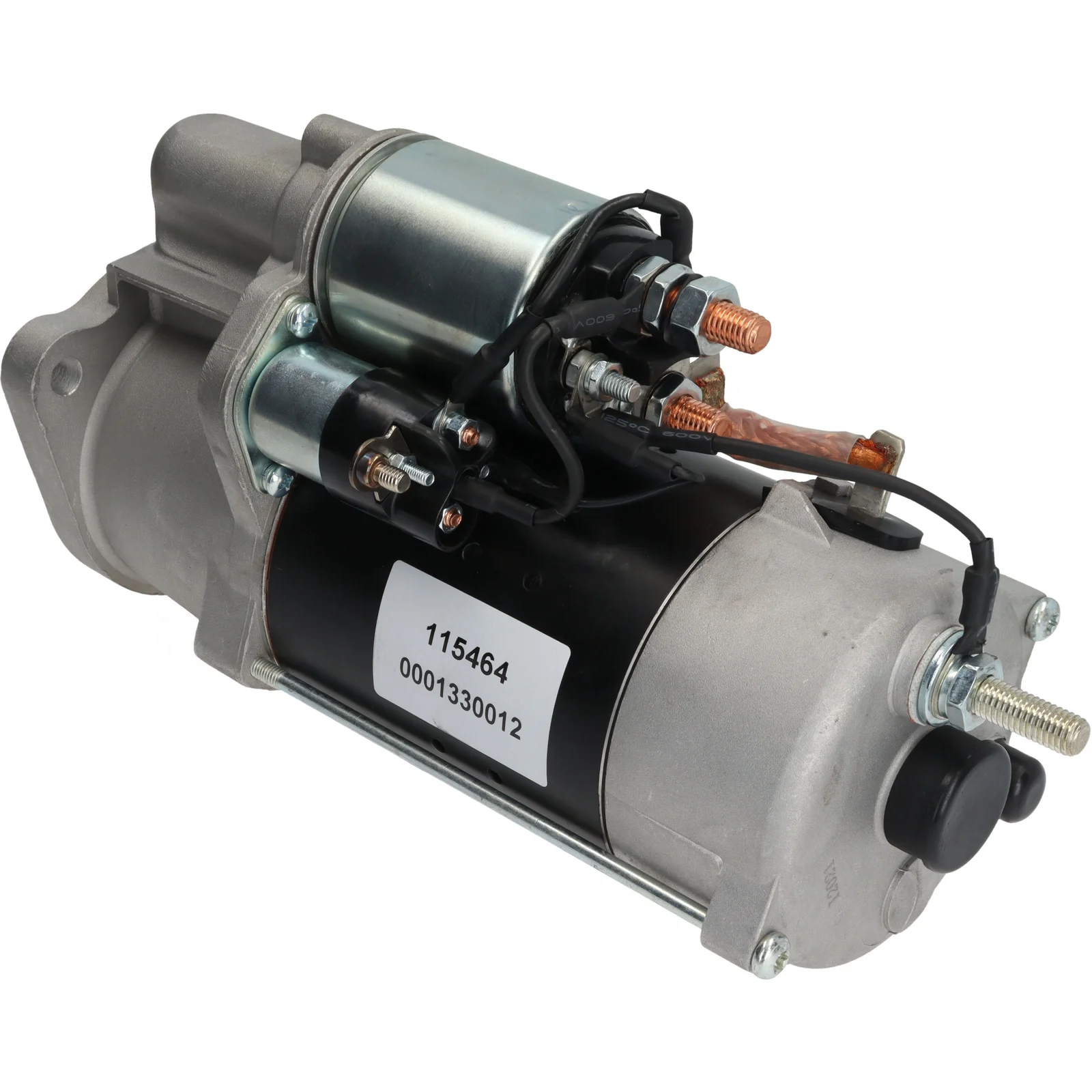

HC-Cargo Starter motor

Technical info:

Voltage: 24, kW: 7.8, No./teeth: 12, Rotation: CW

Description

Voltage: 24
kW: 7.8
Insulated return: Yes
Mounting flange: 89.00
Drive distance: 48.00
Mounting hole 3 mm: 11.00
Mounting hole 2 mm: 11.00
Mounting hole 1 mm: 11.00
Distance / back: 313.00
Distance / front: 53.00
Number / teeth: 12
B+: M10
Thread length mm: 24.50
Position / 50: 45
Terminal 50: M6
Gear type: GR
Distance 2: 90.00
Distance 3: 90.00
Distance mm: 127.00
Rotation: CW
Position / b-: 60
B-: M10
Total length mm: 367.50
Number / mounting holes: 3 (0)

Files

  • OEM
    F032115464, 0001330012, 0001330067, 0001330068, 10219978, 11386644

  • Normalised article numbler
    cst10783, f032115464, s0645s, 220916, 220916a, 0001330012, 0001330067, 0001330068, 10219978, 11090385, 11386644
  • Description
    Voltage: 24
    kW: 7.8
    Insulated return: Yes
    Mounting flange: 89.00
    Drive distance: 48.00
    Mounting hole 3 mm: 11.00
    Mounting hole 2 mm: 11.00
    Mounting hole 1 mm: 11.00
    Distance / back: 313.00
    Distance / front: 53.00
    Number / teeth: 12
    B+: M10
    Thread length mm: 24.50
    Position / 50: 45
    Terminal 50: M6
    Gear type: GR
    Distance 2: 90.00
    Distance 3: 90.00
    Distance mm: 127.00
    Rotation: CW
    Position / b-: 60
    B-: M10
    Total length mm: 367.50
    Number / mounting holes: 3 (0)

    Files

  • Suitable for these vehicles

    • OEM
      F032115464, 0001330012, 0001330067, 0001330068, 10219978, 11386644

    • Normalised article numbler
      cst10783, f032115464, s0645s, 220916, 220916a, 0001330012, 0001330067, 0001330068, 10219978, 11090385, 11386644
