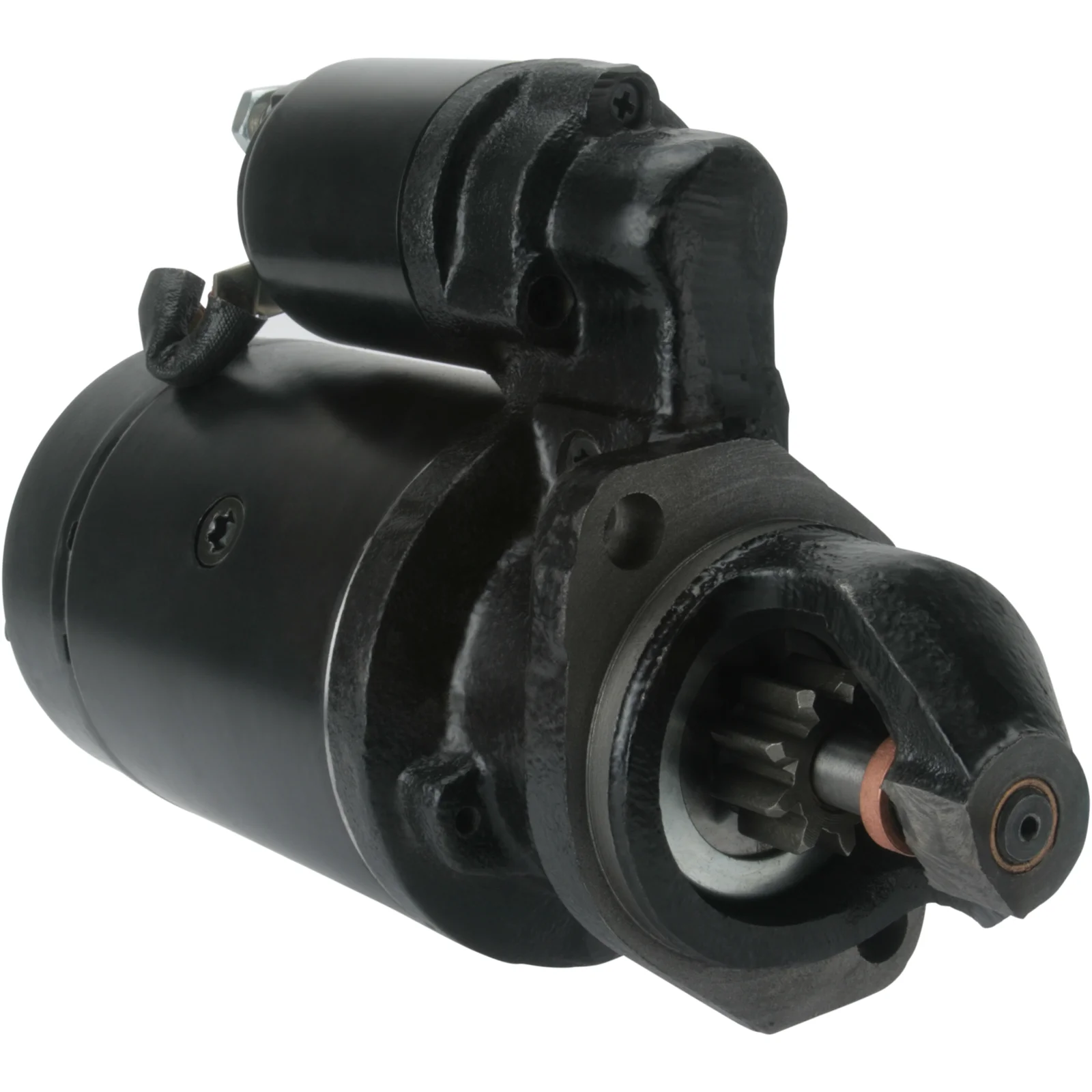

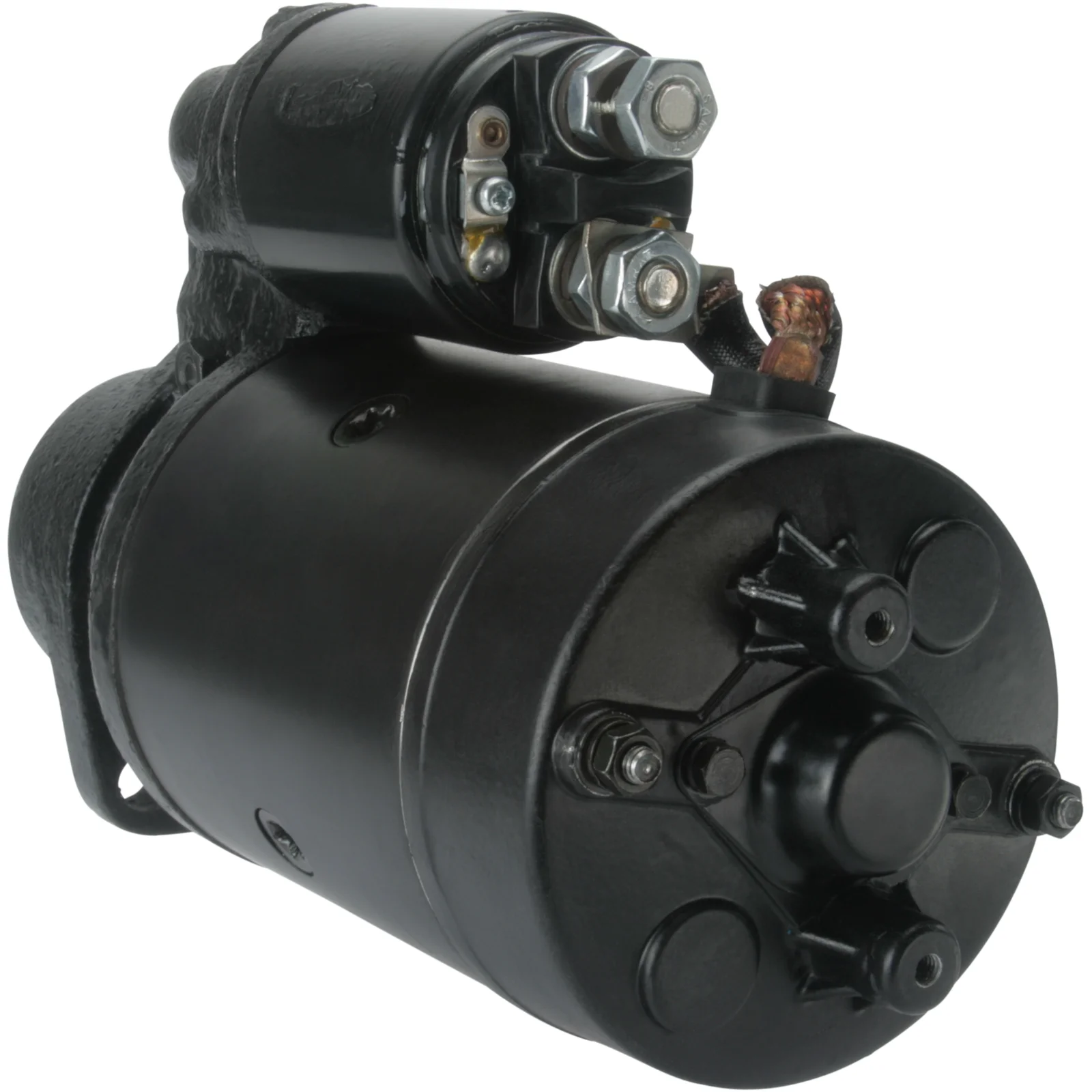

HC-Cargo Starter motor
HC-Cargo Starter motor
Article no.: F032115537

HC-Cargo Starter motor

Technical info:

Voltage: 24, kW: 2.8, No./teeth: 9, Rotation: CW

Description

Voltage: 24
kW: 2.8
Mounting flange: 82.50
Drive distance: 21.00
Mounting hole 2 mm: 13.00
Mounting hole 1 mm: 13.00
Distance / back: 229.00
Distance / front: 65.00
Number / teeth: 9
B+: M10
Thread length mm: 9.00
Position / 50: 45
Terminal 50: M4
Gear type: Differential Drive (DD)
Distance mm: 105.00
Rotation: Clockwise (CW)
Total length mm: 294.00
Number / mounting holes: 2 (0)

Files

  • OEM
    AZJ3211, azj3433, F032115537, 3.553.2040F, 3.553.2056F, 11.130.645, 11.131.479, 0058402670, 58402670

  • Normalised article numbler
    azj3211, azj3433, cst21600, f032115537, is0645, ms180, 11130645, 11131479, 35532040f, 35532056f, 0058402670, 58402670
  • Description
    Voltage: 24
    kW: 2.8
    Mounting flange: 82.50
    Drive distance: 21.00
    Mounting hole 2 mm: 13.00
    Mounting hole 1 mm: 13.00
    Distance / back: 229.00
    Distance / front: 65.00
    Number / teeth: 9
    B+: M10
    Thread length mm: 9.00
    Position / 50: 45
    Terminal 50: M4
    Gear type: Differential Drive (DD)
    Distance mm: 105.00
    Rotation: Clockwise (CW)
    Total length mm: 294.00
    Number / mounting holes: 2 (0)

    Files

  • Suitable for these vehicles

    • OEM
      AZJ3211, azj3433, F032115537, 3.553.2040F, 3.553.2056F, 11.130.645, 11.131.479, 0058402670, 58402670

    • Normalised article numbler
      azj3211, azj3433, cst21600, f032115537, is0645, ms180, 11130645, 11131479, 35532040f, 35532056f, 0058402670, 58402670
